Stock head unit - please help! (plugs)
#1
Registered User
Thread Starter
Join Date: Jul 2006
Location: Lake Ontario
Posts: 371
Likes: 0
Received 0 Likes
on
0 Posts
Stock head unit - please help! (plugs)
I've had some great help from a couple of members here and I've read through nearly all the threads, but I'm still not very clear on one thing;
I have a 1996 SR5 with a tape deck, 51706 model. I want to swap in a double DIN unit to use a PIE aux adapter with.

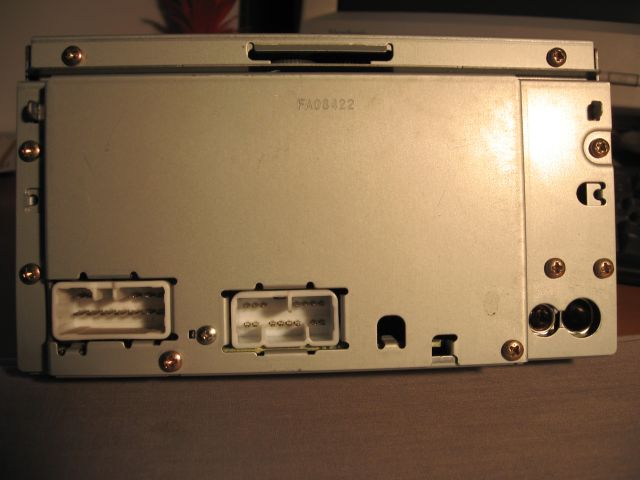

So far, I found that there are two kinds of HUs - one with the amp built in, and one without. Today I discovered the plugs are slightly different, too. The CD changer plug remains the same but the other harness plug, not so. Can someone tell me which I need of these two, please, bearing in mind what's sitting in my dash right now. I'm inclined to think I need the a unit with a plug like in the second photo, but I can't be sure...
or
I have a 1996 SR5 with a tape deck, 51706 model. I want to swap in a double DIN unit to use a PIE aux adapter with.
So far, I found that there are two kinds of HUs - one with the amp built in, and one without. Today I discovered the plugs are slightly different, too. The CD changer plug remains the same but the other harness plug, not so. Can someone tell me which I need of these two, please, bearing in mind what's sitting in my dash right now. I'm inclined to think I need the a unit with a plug like in the second photo, but I can't be sure...
or
#2
Registered User
Join Date: Apr 2007
Location: Milwaukee, WI
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
I just went through this with my '02. It had the external amp setup and the headunit itself looked similar your bottom picture on the back. This did NOT work with a DICE unit. (I don't know how the Pie wiring looks)
I ended up with a Scion Pioneer unit that had connectors more like your top picture and it works correctly without modifying any connectors or wires.
I ended up with a Scion Pioneer unit that had connectors more like your top picture and it works correctly without modifying any connectors or wires.
#3
more connector info
Here are a bunch more connector photos with pinouts. Even though they are from the Supra forum, I believe this is still valid info:
http://www.supraforums.com/forum/sho...ht=stereo+wire
Here is a pic of my 98 4RnR ltd HU. It has the 15pin external amp connector:
http://www.supraforums.com/forum/sho...ht=stereo+wire
Here is a pic of my 98 4RnR ltd HU. It has the 15pin external amp connector:
