22R/RE GM single wire alternator mount
#1
Registered User
Thread Starter
Join Date: Apr 2007
Location: Santa Margarita,CA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
22R/RE GM single wire alternator mount

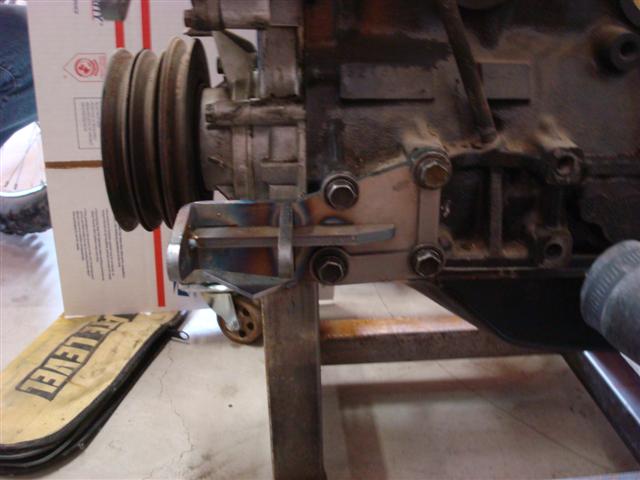

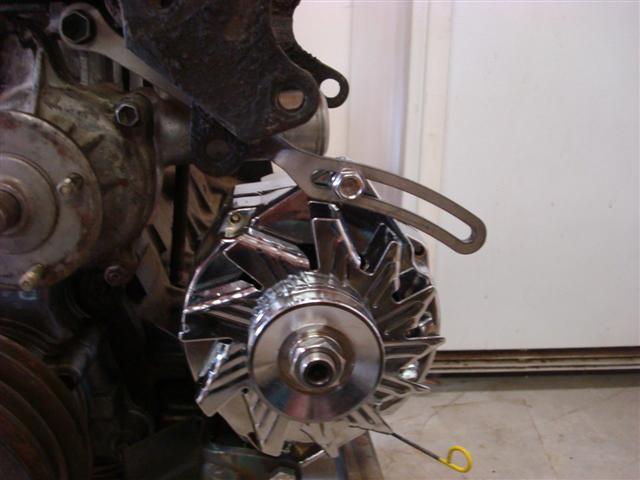

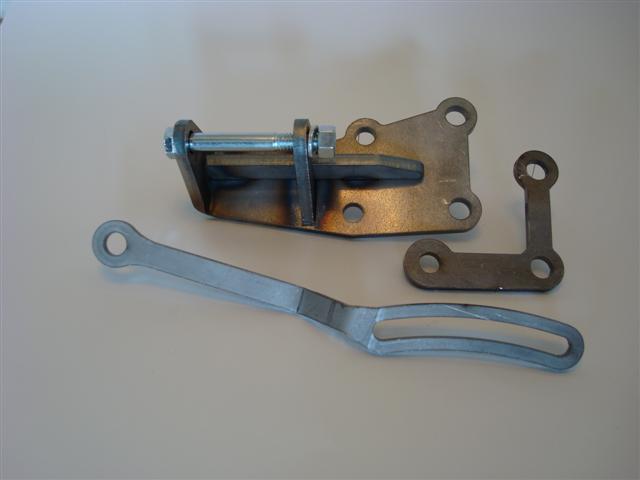

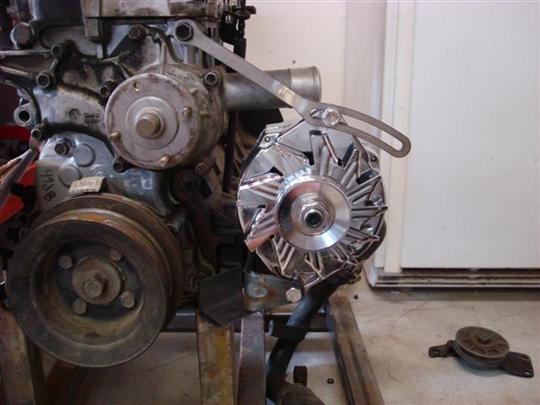

All new cnc laser cut bracket designed for trouble free mounting of a GM single wire alternator.Bracket will also come with a bolt,nut and washer (pictured) Bracket fits all V belt 12-si,10-si and cs130 case alternators...
I have these in a limited supply as I am still guaging interest ..feel free to pm me with any questions
Price is 55.00 plus 10.00 shipping via usps
Paypal accepted
If your not aware of the benefits of a GM alternator ...single wire charging,available with well over 100 amp ratings,price... affordable high output alternators available at most parts stores ,availability ..use of these alternators spanned over 20 years,I would be surprised if every parts store in the U.S. didn't have one that would get you home..
look here http://www.pirate4x4.com/forum/showthread.php?t=830388
Thanks
I have these in a limited supply as I am still guaging interest ..feel free to pm me with any questions
Price is 55.00 plus 10.00 shipping via usps
Paypal accepted
If your not aware of the benefits of a GM alternator ...single wire charging,available with well over 100 amp ratings,price... affordable high output alternators available at most parts stores ,availability ..use of these alternators spanned over 20 years,I would be surprised if every parts store in the U.S. didn't have one that would get you home..
look here http://www.pirate4x4.com/forum/showthread.php?t=830388
Thanks
Last edited by Aaronn; 10-25-2009 at 07:10 PM.
#2
Registered User
Join Date: Dec 2007
Location: ontario
Posts: 117
Likes: 0
Received 0 Likes
on
0 Posts
I built on that goes on the p-side for more room under the hood on my '82. Works great and cost me $0 and a little time. I am buying a high output chevy alt in a couple months to aid charging to offset my winch.
#3
Registered User
Thread Starter
Join Date: Apr 2007
Location: Santa Margarita,CA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
That' great,I'm all for people making stuff themselves..I do...I designed the bracket for people without the tools,ability or time to make one themself.
I have plans to make a passenger mount ,mostly for the buggy guys to make more room for link up travel....I have so many on the list but I have to pick one and finish it
Thanks for the bump
I have plans to make a passenger mount ,mostly for the buggy guys to make more room for link up travel....I have so many on the list but I have to pick one and finish it
Thanks for the bump
#4
Contributing Member
Join Date: Dec 2005
Location: Los Osos, CA (we can't agree on crap!)
Posts: 2,124
Likes: 0
Received 0 Likes
on
0 Posts
Can't wait to see the finished one for the 3.0!
For those that are running a bunch of lights, winch, stereo, etc... this is a great upgrade over the little stock OEM alternator. The other benefit, since you aren't modding your stock bracket, you just keep your stock brackets, alternator, and belt as a trail spare. Not to mention, if you have no fab skills or tools, this makes it pretty much idiot proof.
For those that are running a bunch of lights, winch, stereo, etc... this is a great upgrade over the little stock OEM alternator. The other benefit, since you aren't modding your stock bracket, you just keep your stock brackets, alternator, and belt as a trail spare. Not to mention, if you have no fab skills or tools, this makes it pretty much idiot proof.
#7
Registered User
Join Date: Mar 2003
Location: Auburn, CA
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
$60 is well worth the time it takes to make or modify your own bracket.
GM CS130 style alternators are nearly bolt-in on the 3.0 and 3.4 V6, no extra brackets needed.
http://www.pirate4x4.com/forum/showthread.php?t=458156
http://www.pirate4x4.com/forum/showthread.php?t=592931
High quality 140A rated Powermaster alternators are only about $160 from Summit Racing.
GM CS130 style alternators are nearly bolt-in on the 3.0 and 3.4 V6, no extra brackets needed.
http://www.pirate4x4.com/forum/showthread.php?t=458156
http://www.pirate4x4.com/forum/showthread.php?t=592931
High quality 140A rated Powermaster alternators are only about $160 from Summit Racing.
Trending Topics
#16
Registered User
Thread Starter
Join Date: Apr 2007
Location: Santa Margarita,CA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
#18
Registered User
Thread Starter
Join Date: Apr 2007
Location: Santa Margarita,CA
Posts: 84
Likes: 0
Received 0 Likes
on
0 Posts
#20
Registered User
Join Date: Apr 2008
Location: Spokane Alley, WA
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
i bought this, and it all fit perfectly. Actually, i think that is my alternator in the pics. bolted it in, hooked up the power, and it's charging @ 14.5. much better than the 180$ yota alternator that keeps losing diodes.
