Clear Turn Signals for 3rd Gen 4Runner and 1st Gen Tacoma ARB Bumpers
I searched (here and other forums) for a source for replacement turn signals and clear lenses for my ARB bumper. And while I found several sources for the ARB indicator lights (ARB part #: 3500080) and clear lenses (sold by Gamiviti) separately... I felt there was no reason these should not be available together in one package.
So I continued my search and found the answer on a Jeep forum (go figure)... It turns out that the turn signal assemblies used by ARB are the same as those found in the European VW Golf MK2 (small bumper). They are widely available and both signals can be had with various lenses (amber, clear and smoke) for $35 a set. This is half the price of buying the ARB lights and clear lenses separately... and I'm saving pennies to buy some sliders from WabFab, so it's a no brainer.
I bought a set from UROTuning (out of Tampa) and they drop shipped them to me the day after I ordered them. I received them a few days later via USPS and got a chance to install them today. I had a good experience with this vendor, so I don't mind posting a link to the set I purchased for those interested: http://www.urotuning.com/shop/mk2mk1...ar-p-1307.html

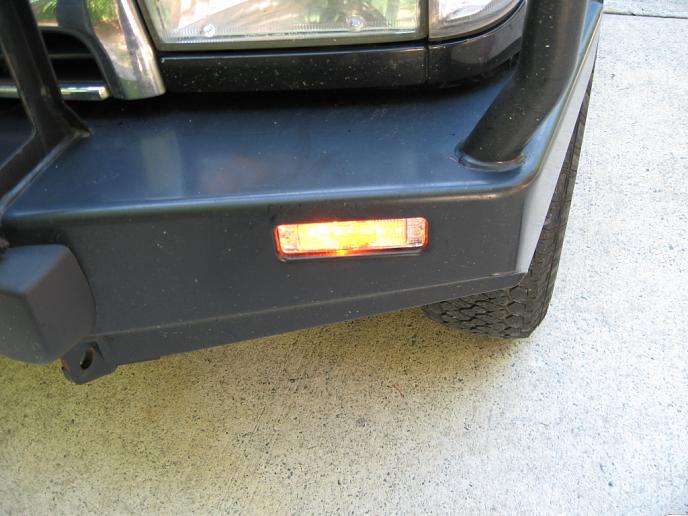

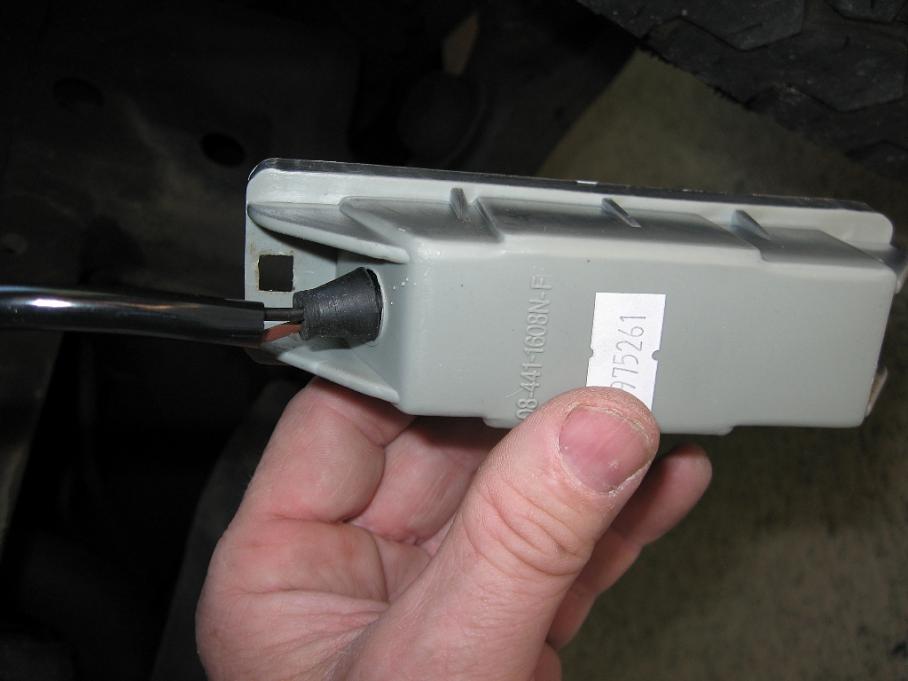

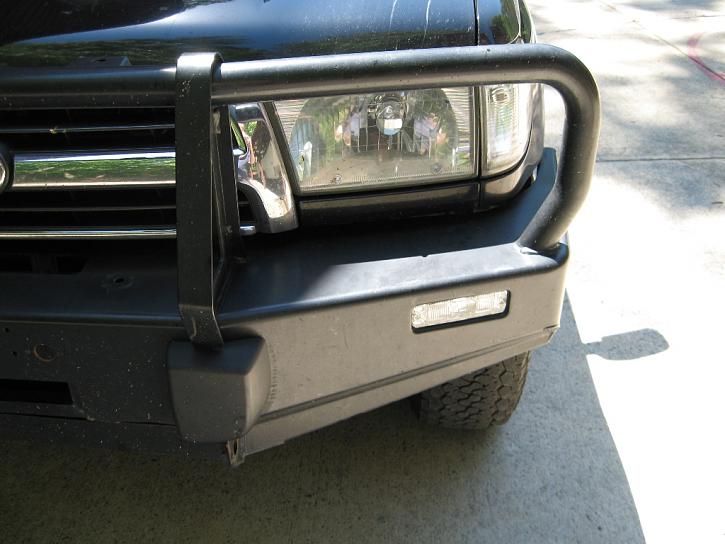

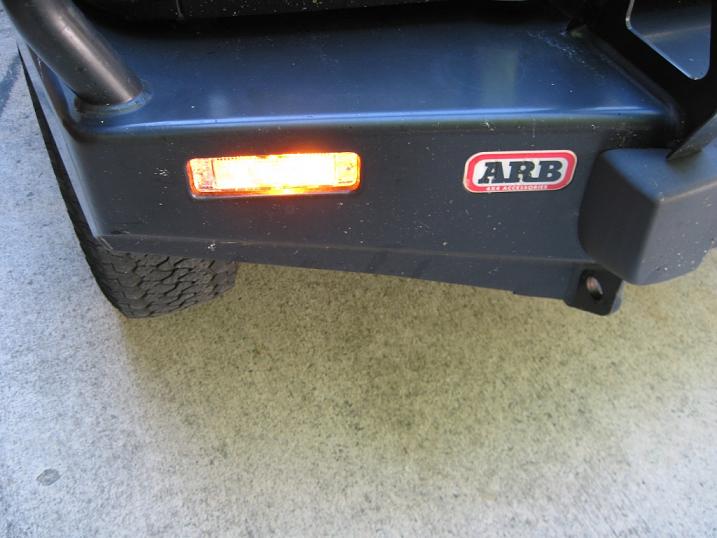

Here are a few pics of today's install:
So I continued my search and found the answer on a Jeep forum (go figure)... It turns out that the turn signal assemblies used by ARB are the same as those found in the European VW Golf MK2 (small bumper). They are widely available and both signals can be had with various lenses (amber, clear and smoke) for $35 a set. This is half the price of buying the ARB lights and clear lenses separately... and I'm saving pennies to buy some sliders from WabFab, so it's a no brainer.
I bought a set from UROTuning (out of Tampa) and they drop shipped them to me the day after I ordered them. I received them a few days later via USPS and got a chance to install them today. I had a good experience with this vendor, so I don't mind posting a link to the set I purchased for those interested: http://www.urotuning.com/shop/mk2mk1...ar-p-1307.html
Here are a few pics of today's install:
