Anybody retrofit e-locker rear on 2002 4Runner with ATRAC?
#1
Registered User
Thread Starter
Anybody retrofit e-locker rear on 2002 4Runner with ATRAC?
I'm sick of searching so here goes...
Has anybody actually added the 3rd gen e-locker to the 2001/02 3rd gen with ATRAC? I read a thread where it was thought that perhaps you could swap the whole e-lock axle assembly over and ATRAC would be cool as long as it was an ABS equipped e-lock axle assembly. Can anybody answer definitively on this or point me somewhere that can?
I understand that you can mod the housing and add the third (I've seen all the write-ups around on this mod), but I want to make it stupid-easy and just swap the whole assembly.
What about differences/similarities between the Taco rears and Runner rears? Are they bolt-on swappable? Where can i find info on that?
I come from the Land Cruiser world, so my knowledge on Tacos and Runners is limited.
-Ferg-
Has anybody actually added the 3rd gen e-locker to the 2001/02 3rd gen with ATRAC? I read a thread where it was thought that perhaps you could swap the whole e-lock axle assembly over and ATRAC would be cool as long as it was an ABS equipped e-lock axle assembly. Can anybody answer definitively on this or point me somewhere that can?
I understand that you can mod the housing and add the third (I've seen all the write-ups around on this mod), but I want to make it stupid-easy and just swap the whole assembly.
What about differences/similarities between the Taco rears and Runner rears? Are they bolt-on swappable? Where can i find info on that?
I come from the Land Cruiser world, so my knowledge on Tacos and Runners is limited.
-Ferg-
#2
Registered User
Join Date: Apr 2008
Location: Tempe, AZ
Posts: 471
Likes: 0
Received 0 Likes
on
0 Posts
the mod to fit the e-locker in a non e-locker axle is already stupid easy...you just shave it a bit. faster and cheaper than replacing a whole axle assembly and you don't have to worry about messing with the ATRAC system.
#4
Registered User
Join Date: Jul 2006
Location: Tennessee
Posts: 1,836
Likes: 0
Received 0 Likes
on
0 Posts
ferg - Tacoma/4Runner rears are not bolt-on swappable. Only reason is that Tacoma's use leafs and 4Runners use coils. But other than that, it's all the same.
Also, why are you looking to do a swap instead of going ARB? Just curious.
And on a side note, the ATRAC system was not that impressive to me. I had an 02 Sport Edition and in certain situations, the ATRAC almost got me killed. I think the ATRAC in the new FJ's are much more aggressive (better).
Also, why are you looking to do a swap instead of going ARB? Just curious.
And on a side note, the ATRAC system was not that impressive to me. I had an 02 Sport Edition and in certain situations, the ATRAC almost got me killed. I think the ATRAC in the new FJ's are much more aggressive (better).
Last edited by cackalak han; 09-17-2008 at 07:56 AM.
#5
Contributing Member
I'll be able to answer this qiestion in a month or so. I have a 2001 with ATRAC I'm in the process of buying an e-locked axle from a 97. I'll keep you up to date when the axle gets to me and I can see if a straight swap will work.
#6
Registered User
Join Date: Apr 2008
Location: Tempe, AZ
Posts: 471
Likes: 0
Received 0 Likes
on
0 Posts
#7
Contributing Member
iTrader: (1)
I looked into doing this very mod on my '02 a while back. Here's a few points I learned along the way:
ATRAC is not an issue with an e-locker...nor is it an issue with any locker for that fact. Plenty of guys here are running ARB air lockers in their '02s and have zero issues doing so.
You cannot just swap the e-locked axle over to your '02. Bracketry is different between the '02 and earlier axles. (I'd probably have done this mod, had this not been the case. A simple axle sway would be great.)
Your only option is to remove the e-locker diff from the donor axle and install it in your '02 axle. Of course, your '02 diff opening will need to be widened a bit to clearance the new e-lock diff. This can be easily be done, but it must be done precisely or your diff will leak. (If you've read all the e-locker installs floating around the net, then I'm sure you know what I mean when I say "clearancing the diff.")
I had the chance to pick up an e-locker, wiring and all the other misc stuff for it + having it installed for half the price an ARB + install would run me in my neck of the woods. But I passed on it, b/c I didn't feel like dealing with all the hassle of getting it installed. Plus with the age of the unit itself, I'd prefer to go with a new unit instead.
Knowing what I know now, an ARB air locker is the better choice for my situation. Granted it's pricey, but you get what you pay for.
Good luck if you decide to go thru with this mod. Who knows, if you decide to do it and it turns out great, I might reconsider
ATRAC is not an issue with an e-locker...nor is it an issue with any locker for that fact. Plenty of guys here are running ARB air lockers in their '02s and have zero issues doing so.
You cannot just swap the e-locked axle over to your '02. Bracketry is different between the '02 and earlier axles. (I'd probably have done this mod, had this not been the case. A simple axle sway would be great.)
Your only option is to remove the e-locker diff from the donor axle and install it in your '02 axle. Of course, your '02 diff opening will need to be widened a bit to clearance the new e-lock diff. This can be easily be done, but it must be done precisely or your diff will leak. (If you've read all the e-locker installs floating around the net, then I'm sure you know what I mean when I say "clearancing the diff.")
I had the chance to pick up an e-locker, wiring and all the other misc stuff for it + having it installed for half the price an ARB + install would run me in my neck of the woods. But I passed on it, b/c I didn't feel like dealing with all the hassle of getting it installed. Plus with the age of the unit itself, I'd prefer to go with a new unit instead.
Knowing what I know now, an ARB air locker is the better choice for my situation. Granted it's pricey, but you get what you pay for.
Good luck if you decide to go thru with this mod. Who knows, if you decide to do it and it turns out great, I might reconsider
Trending Topics
#8
Contributing Member
OK, I've just completed the swap of a 97 LTD axle into my 2001, with ATRAC. The brackets on the 01 axle are very slightly different than the 97 axle, but there is only one bracket to swap, which is a lot easier then modifying the housing to fit the e-locker. Pics are here showing the differece in the brake lines, and the bracket that has to be moved. Modifying the 97 axle to fit the bracket is simple, 2 holes have to be drilled in the driver side upper control arm mounting bracket. One for a locating tab and one for a bolt.

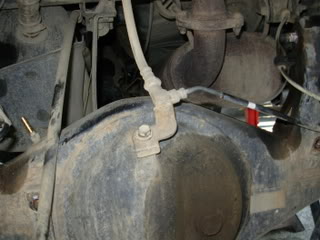

The first 2 pics show the difference in the brake lines, the 97 has both sides coming from a common connector above the diff, the 01 has only the passenger side from this. On the 01 the driver side line is seperate, attaching to the aforementioned bracket.
