A big thanks to Pdyebrasil for giving me yet another reason to blow more money on my 4Runner (He was the first guy I saw do this mod to a 4Runner). Also, a big thanks to Pfdaxe for answering all the emails I sent him every time I ran into a snag. For more information on what they both did, check out this link: Click Me.

Oh and for more information on yet another FX Projector Retrofit I came across, check out WeCool.net: Click Me


For my own install, I followed Pfdaxe’s retrofit very closely. Here’s what I used:

Infiniti FX Bi-xenon Projectors
Acura TSX Lenses
Hella Gen 3 Ballasts
35W 4300K Philip D2S 85122+ Bulbs
H4 Plug-n-Play Wiring Kit -(ebay special)
Malibu Light Covers

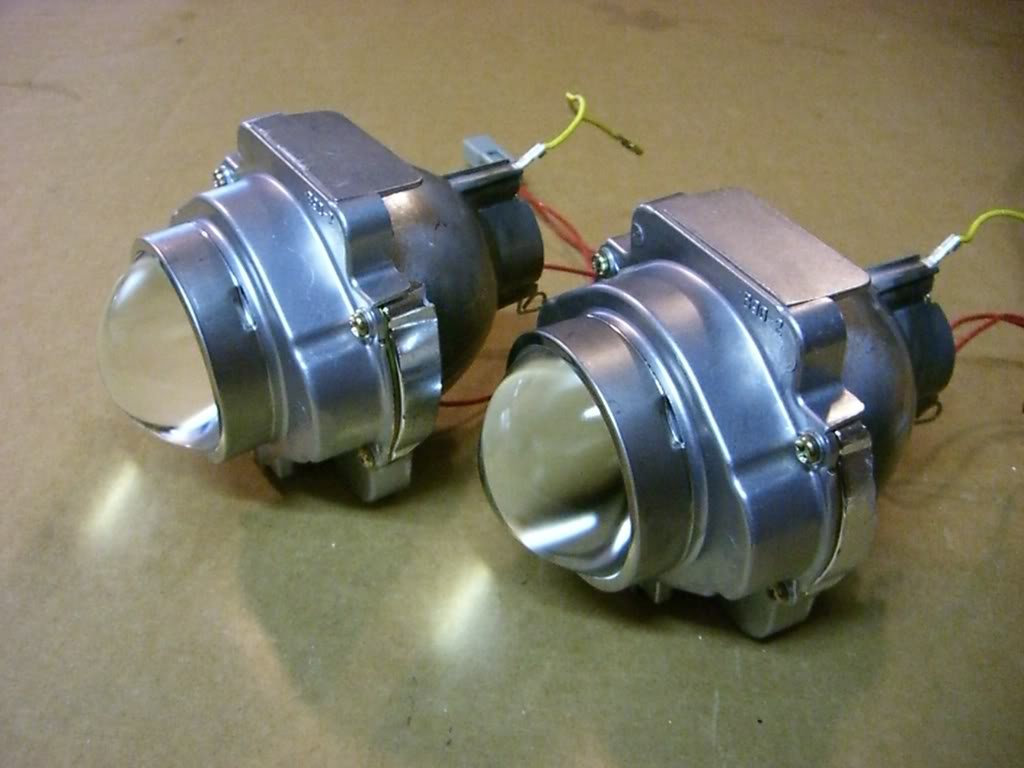

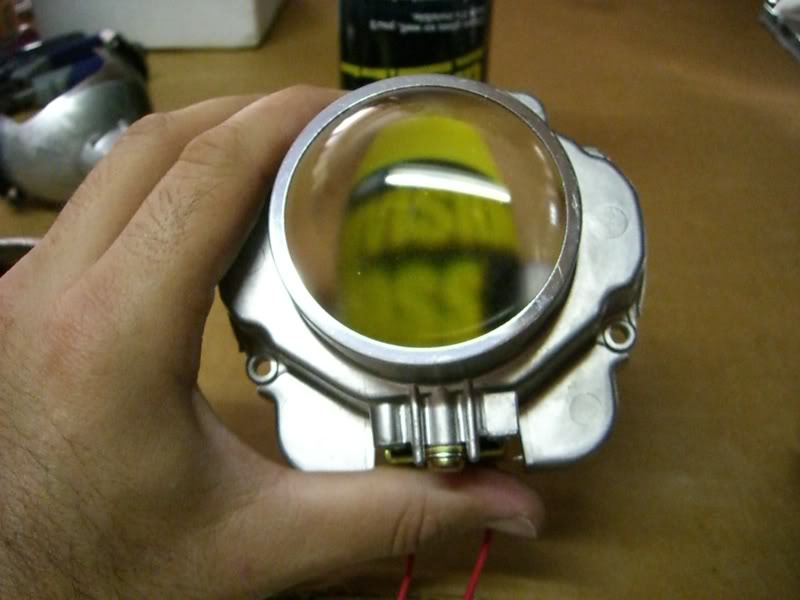

Stock Infiniti FX Bi-xenon Projectors:

Note, the yellow wires are not used.

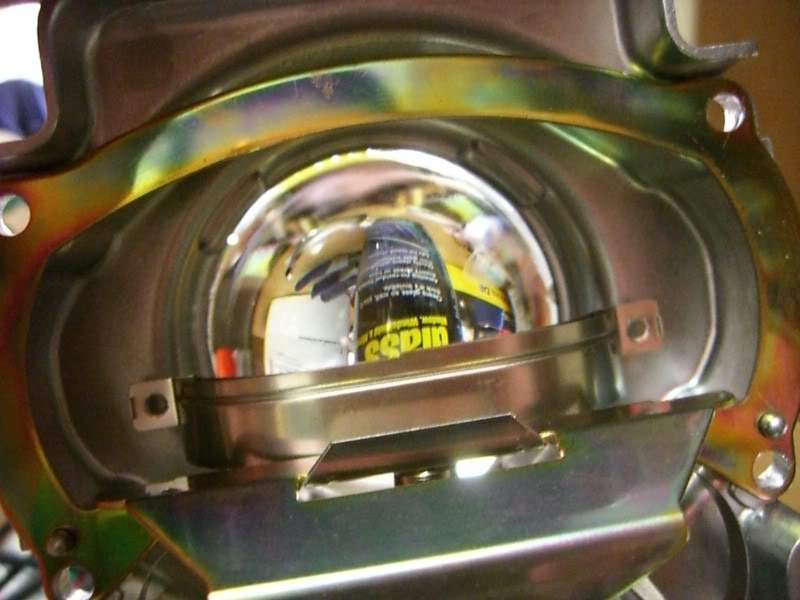

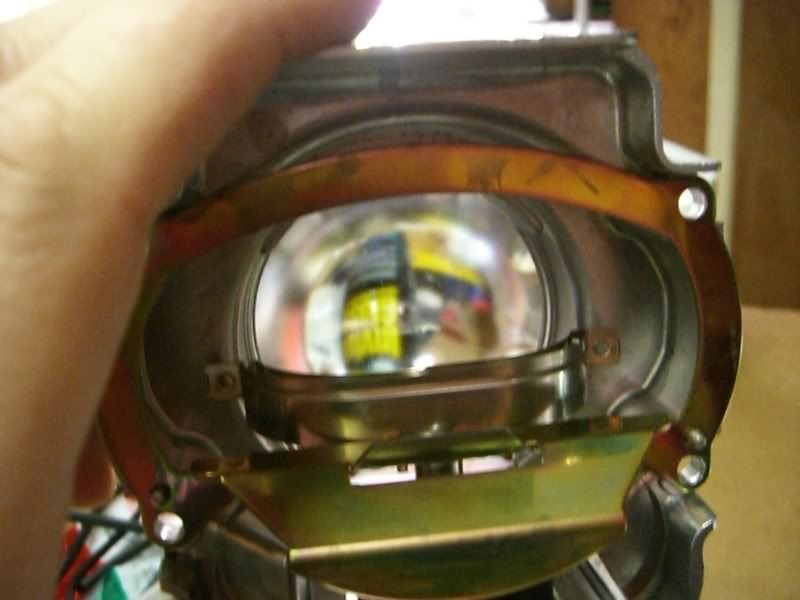

FX Lenses Removed:





The above lenses appear very clear, but looks can be deceiving. So I purchased a set of stock Acura TSX Single Beam Projectors strictly for their truly clear lenses.

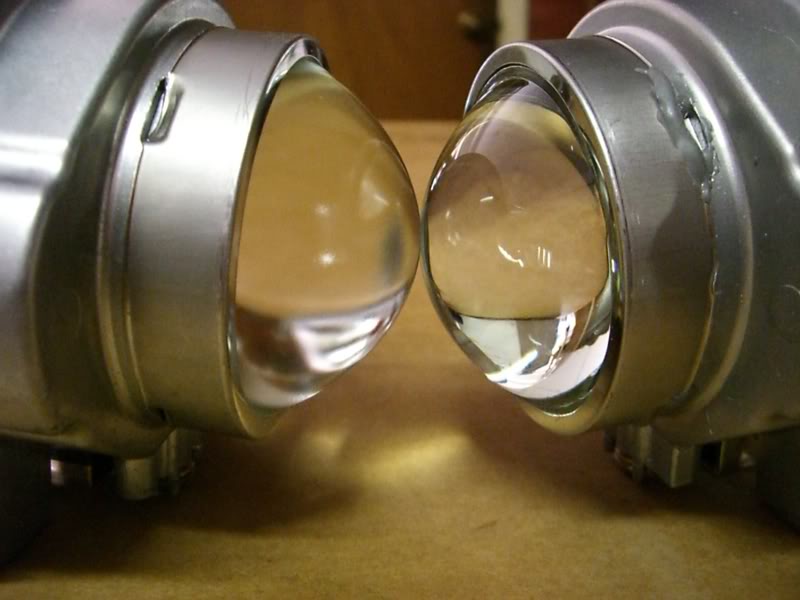

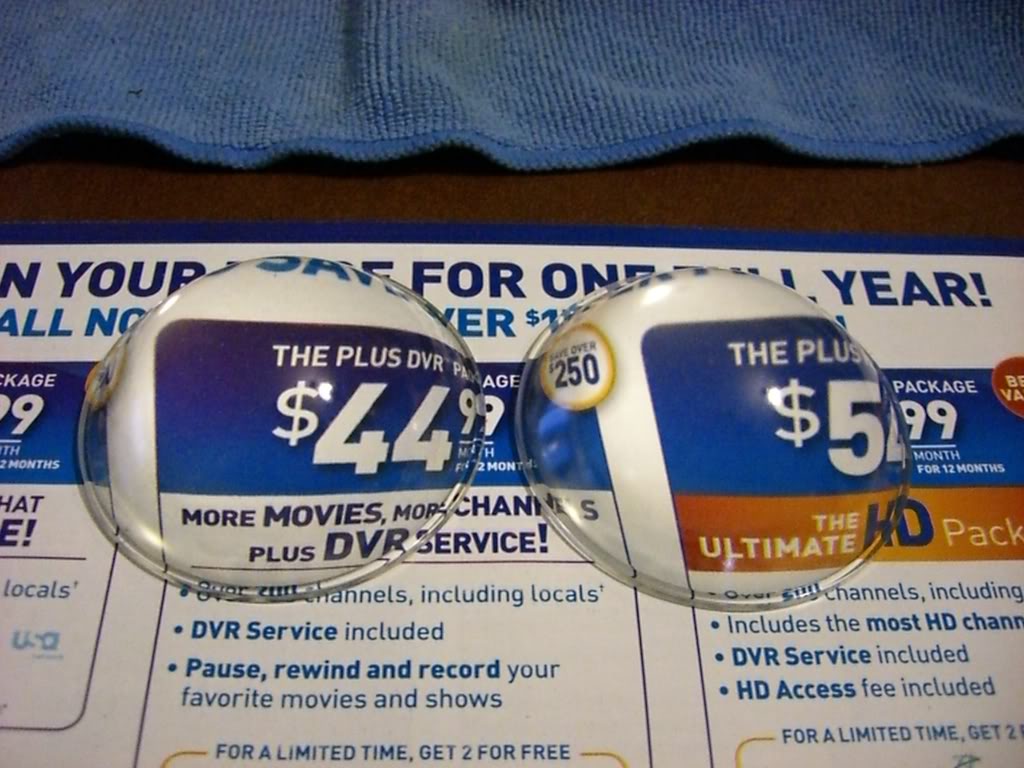

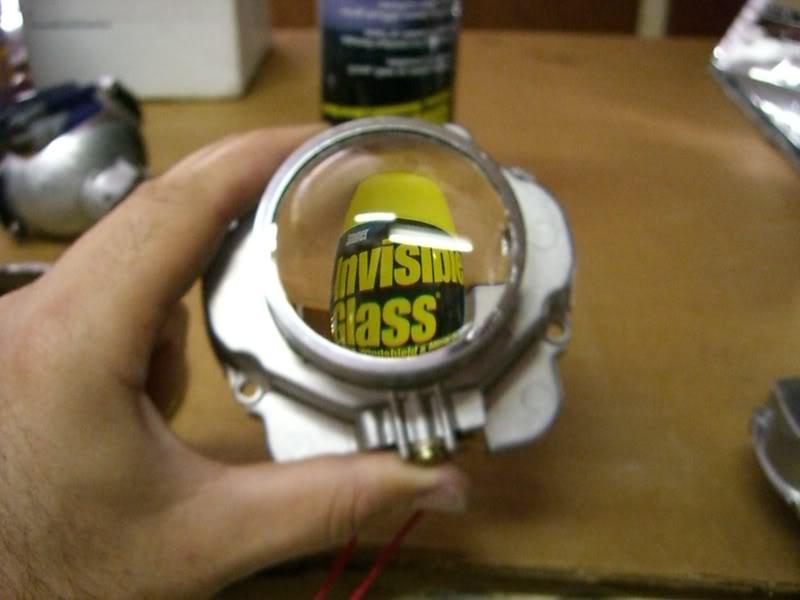

I then removed the TSX lenses and installed them into the FX Projectors. Although, the FX lenses I already had were considered the “clear” version by market standards (as seen in the picture above), when compared to that of the TSX lenses, the FX lenses left very little to be desired. The TSX lenses are so incredibly clear, that they make the FX lenses look like crap. Here are a few comparison shots of the FX and TSX lenses:


FX vs. TSX Lenses installed in FX Projectors:





FX vs. TSX Lenses installed in FX Projectors:

1st Comparison Shot:


FX:


TSX:



2nd Comparison Shot:

FX:


TSX:




I obtained both the pair of 35W 4300K Philip D2S 85122+ bulbs and Hella Gen3 Ballasts from YT member Pfdaxe. As for the PnP Wiring Kit, I purchased it directly from Ebay. It came with all the necessary wiring to retain proper function of my high beams with the newly installed FX projectors.


I attempted the Color O-ring Mod, but had mixed results. I simply could not find a large enough gasket to make this mod worth my time. So I scrapped it and moved on. For those interested in this Mod, visit HID Planet: Click Me

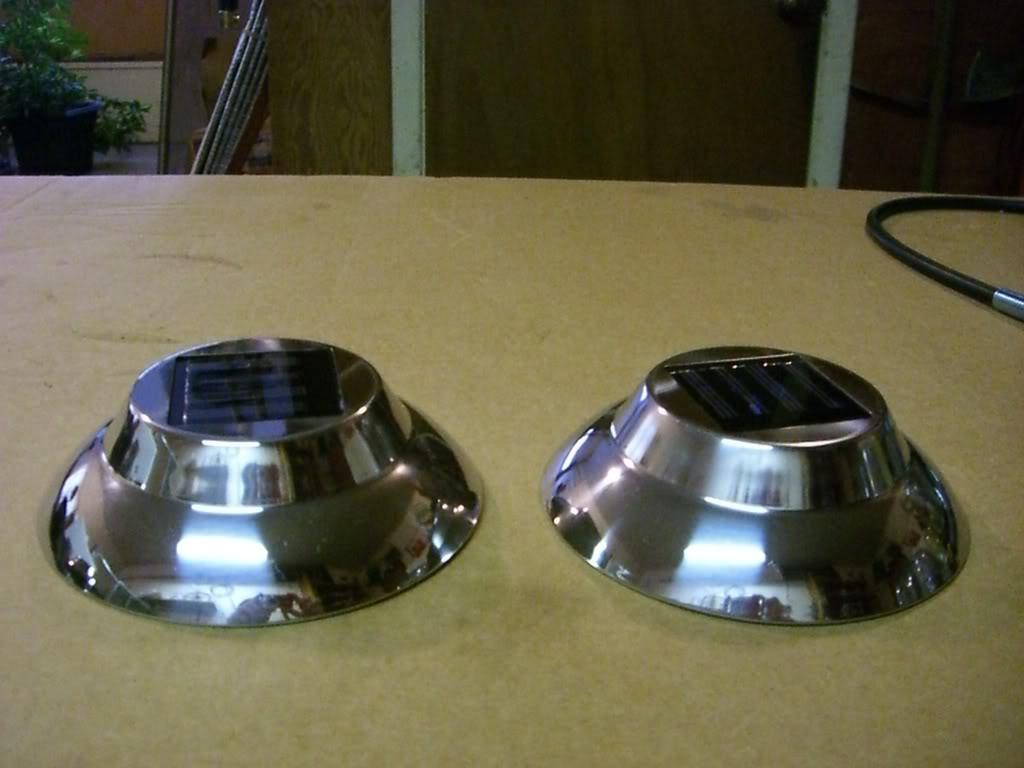

For the Malibu Light Covers, I went with Intermatic.com. I found that while they do not sell the entire Malibu light itself, they do offer individual replacement parts for it. (Which was great, considering I only needed the covers anyway.)


Stock Photo of the Entire Malibu Light:



The Product Number for the entire light above is – LZ512SS found here: www.intermaticstore.com

Once you are there, click the "Parts" Tab at the bottom of the page. The first item in the list should be:

Light cover itself: Item # LZ512SSA
Description: SOLAR TOP-WHITE LED-INCLUDES BATTERY
Price per Cover: $6.25

I ordered 4 of these light covers (two extra in case I screwed the other 2 up) and had them at sitting at my front door in 3 days.

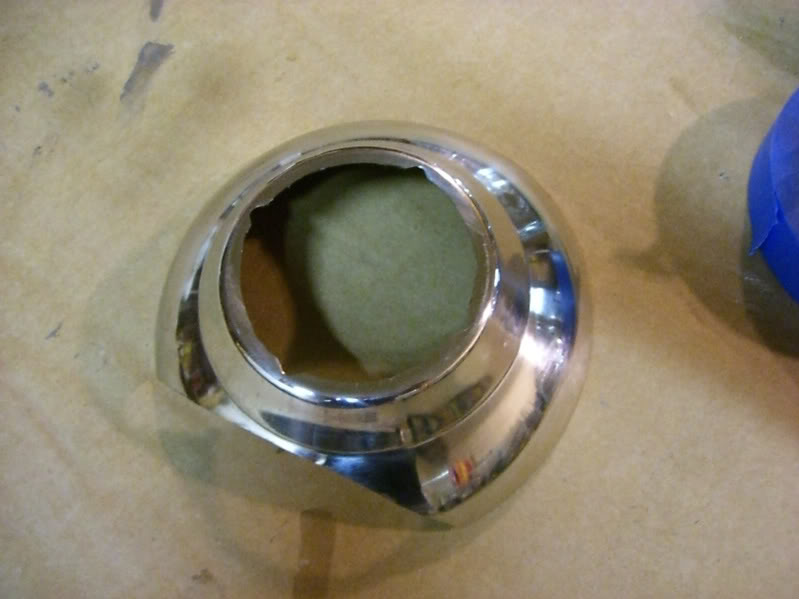

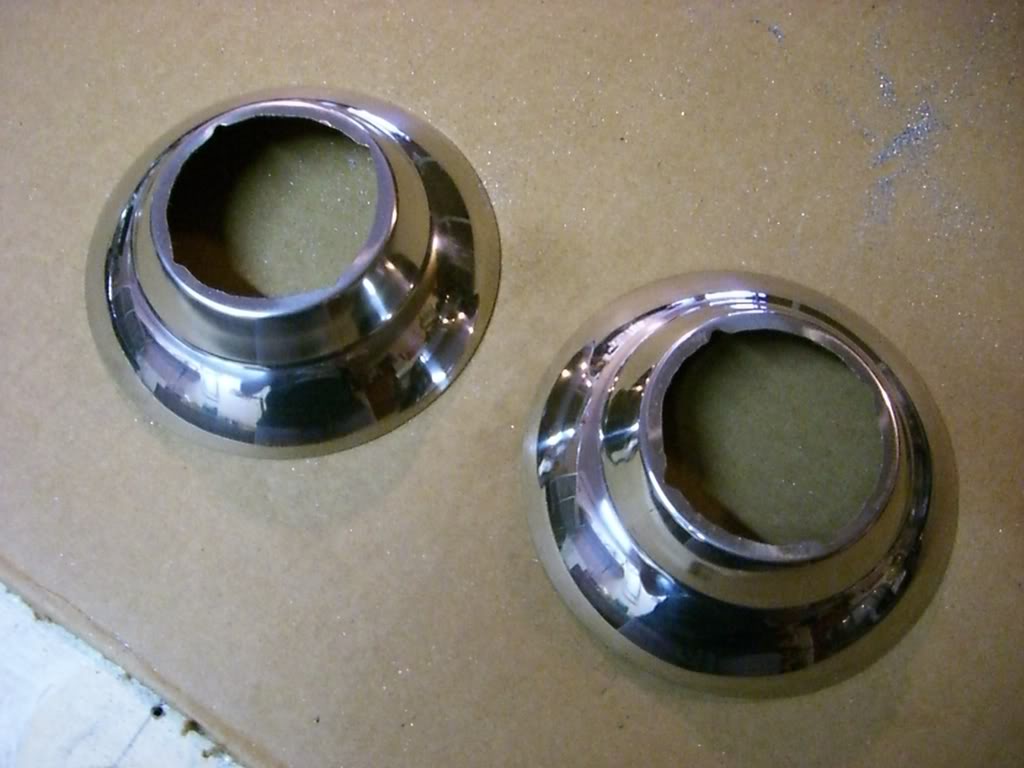

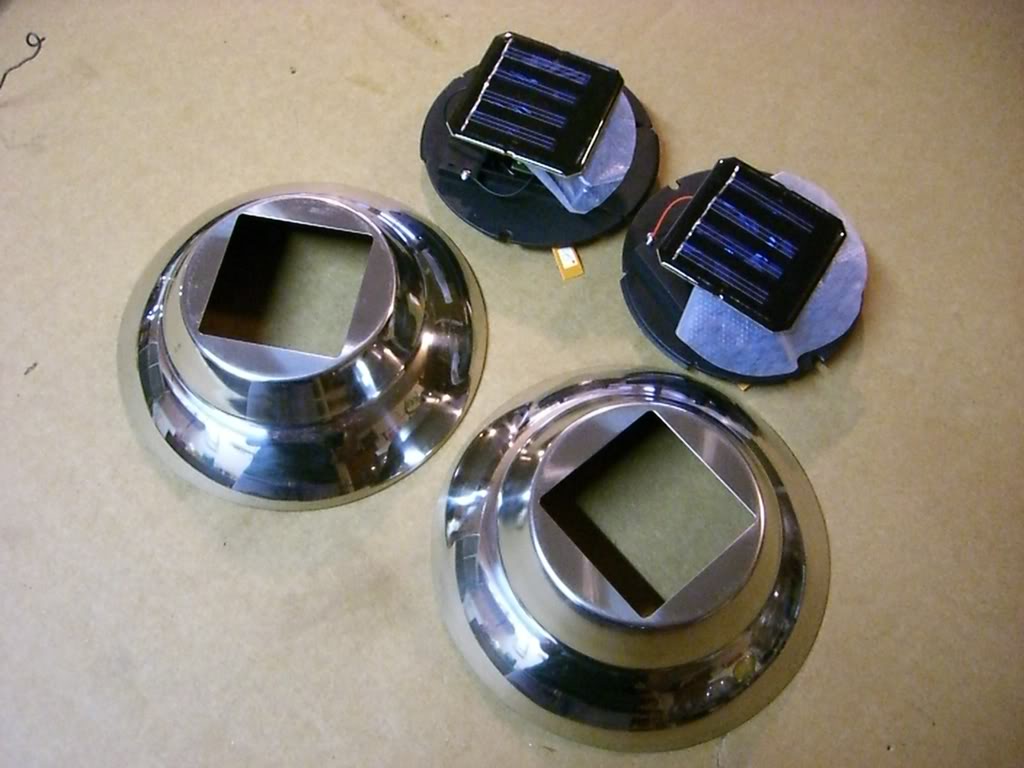

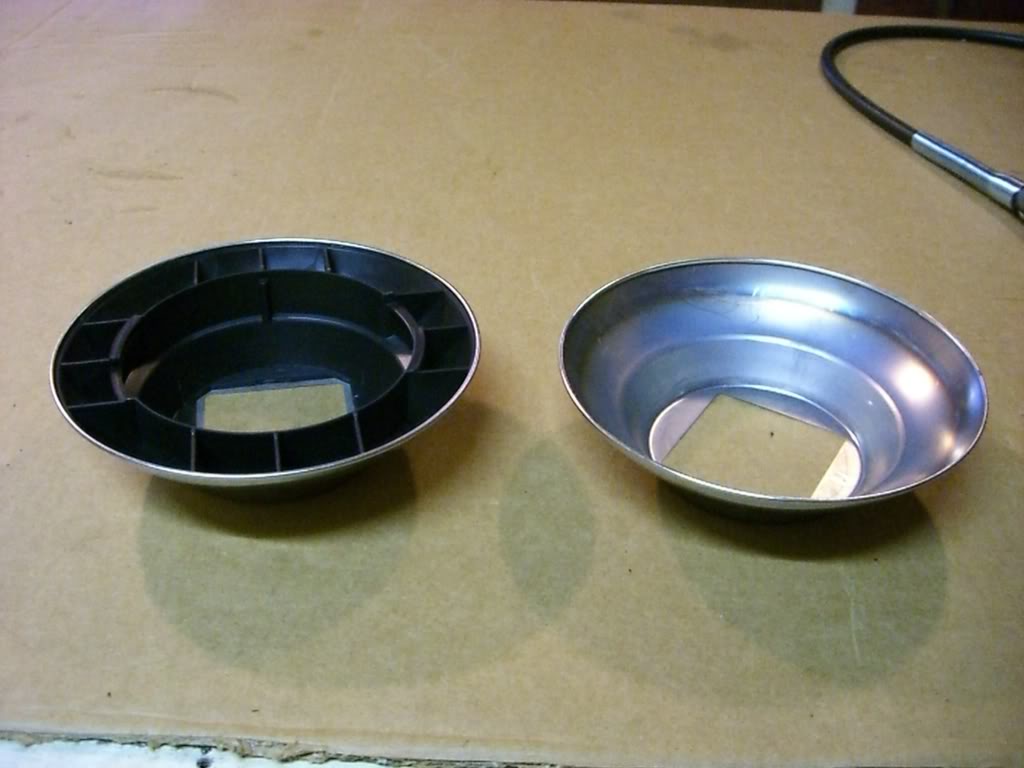

Here’s the process I took to convert the Malibu covers into Projector Shrouds:










I also purchased a 2nd pair of oem headlights to use in my 4Runner while I completed this retrofit on my existing headlights. Once I finished the retrofit, I swapped in my newly modified projector headlights and sold the donor lights.

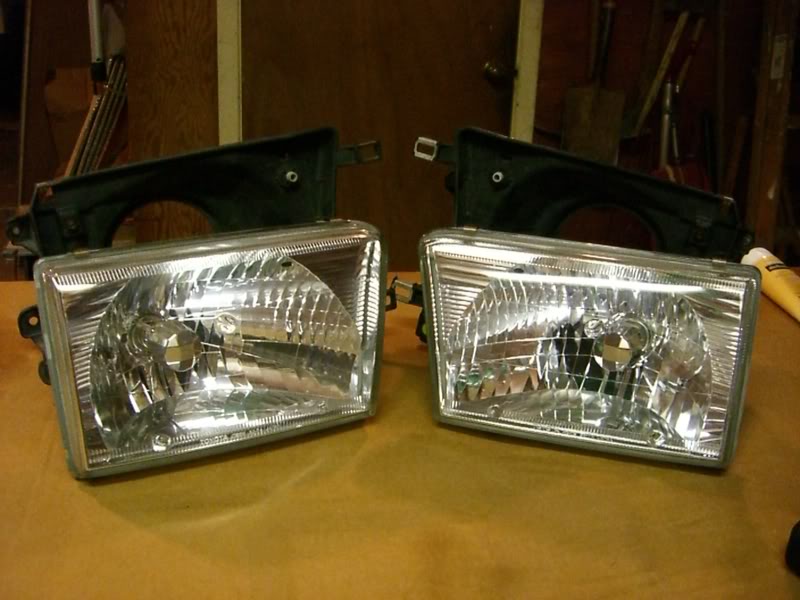

Stock Headlight Housings:




To remove the headlight glass, I baked each light individually in the oven at 350 degrees for 5 minutes. This process permitted the hardened glue to become very soft, which in turn, allowed me to take a flat head screwdriver and pry the glass off of the housing.

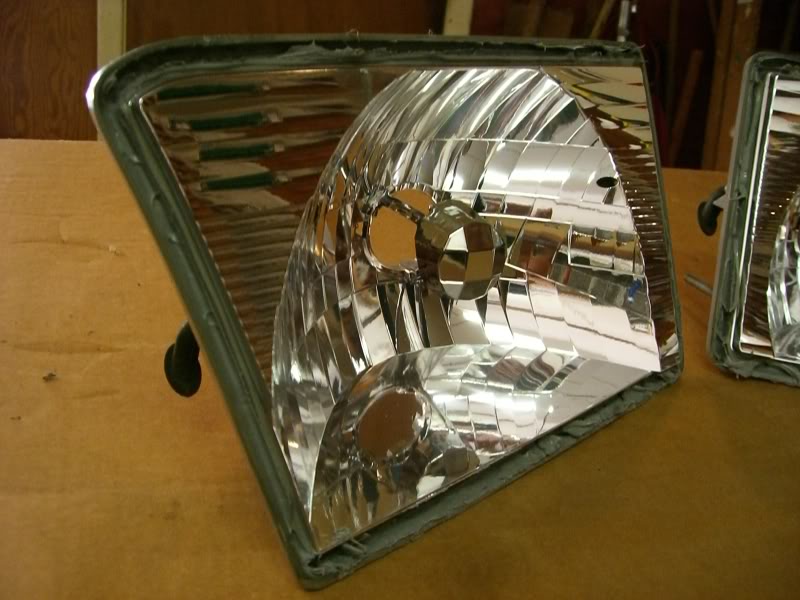

Glass & Bulb Cover removed from Driver side Headlight:





In order to fit the FX Projectors in these headlights, the rear opening needed to be enlarged. A 2-inch hole saw made for a quick cut:

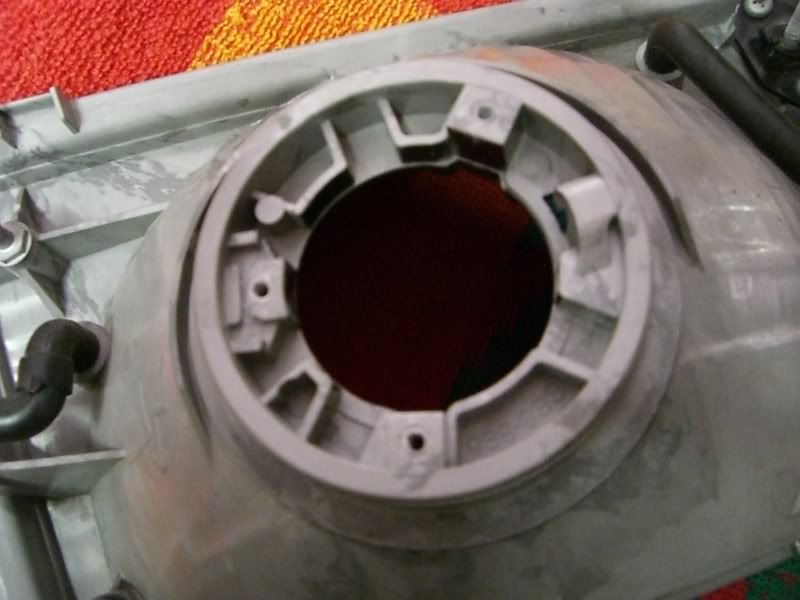

Before Rear Opening was cut:

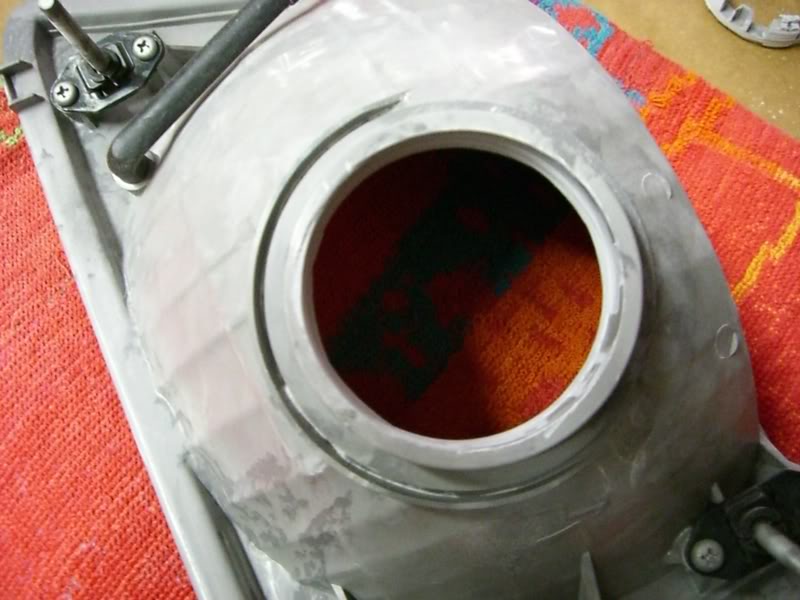

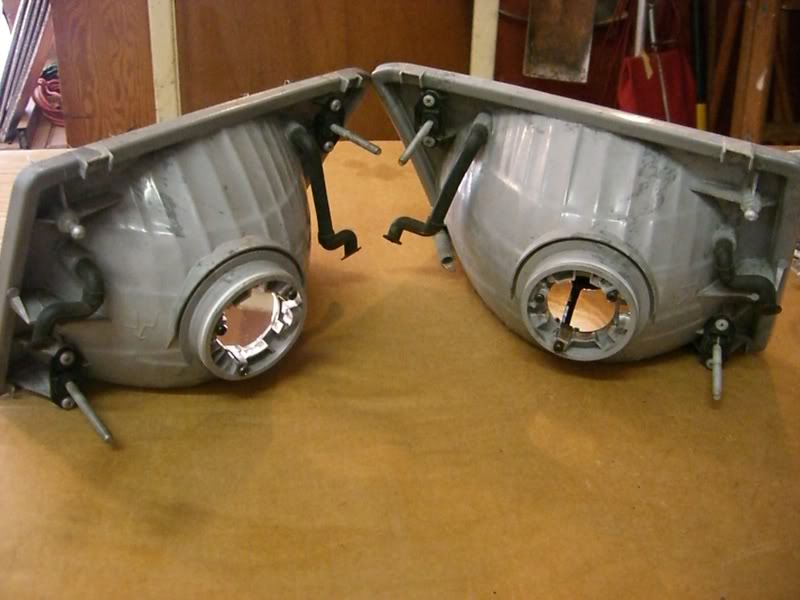

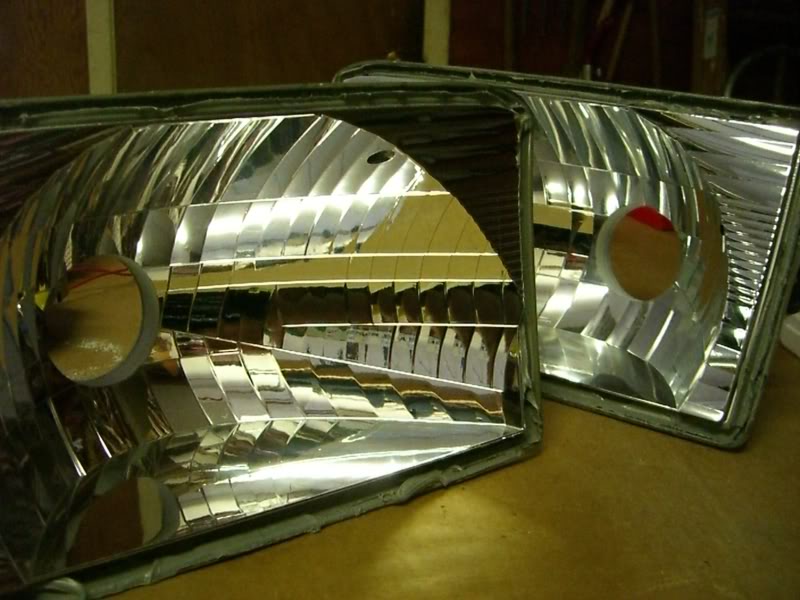

After Cuts were Made:

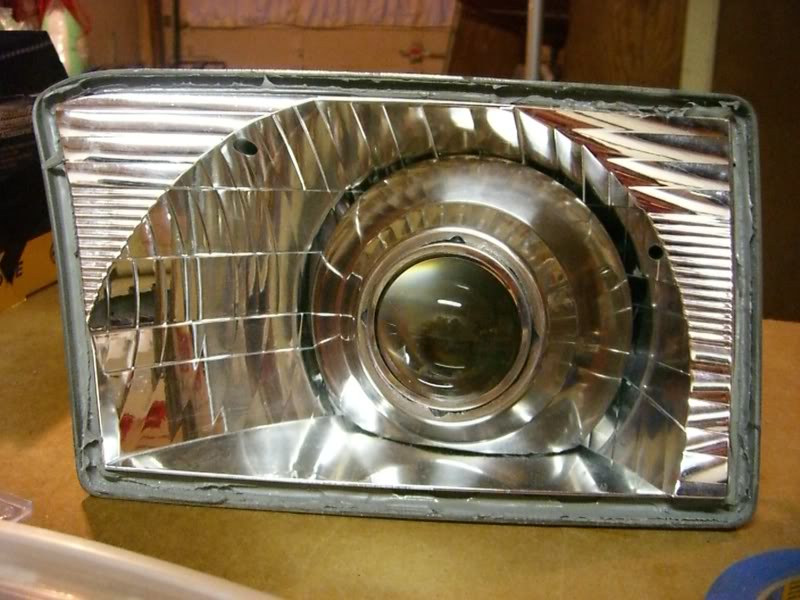

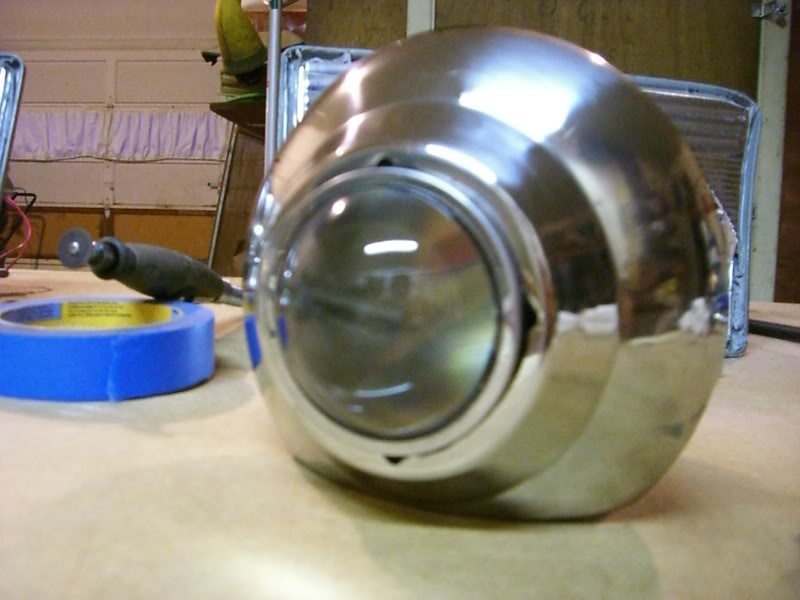

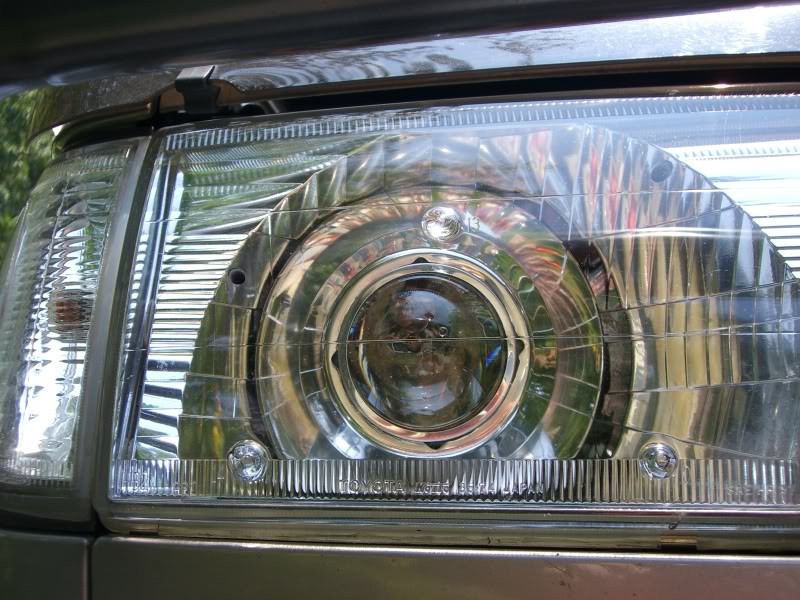

Projector Mounted with the Malibu Cover On:

To secure the projector itself to the headlight, I drilled 4 small holes into the headlight and ran 4 long screws thru the projector mounting tabs and thru the holes in the headlight. Bolted them down on the backside of the headlight using lock washers, nuts, liquid thread locker and even some JB Weld to further seal them up.

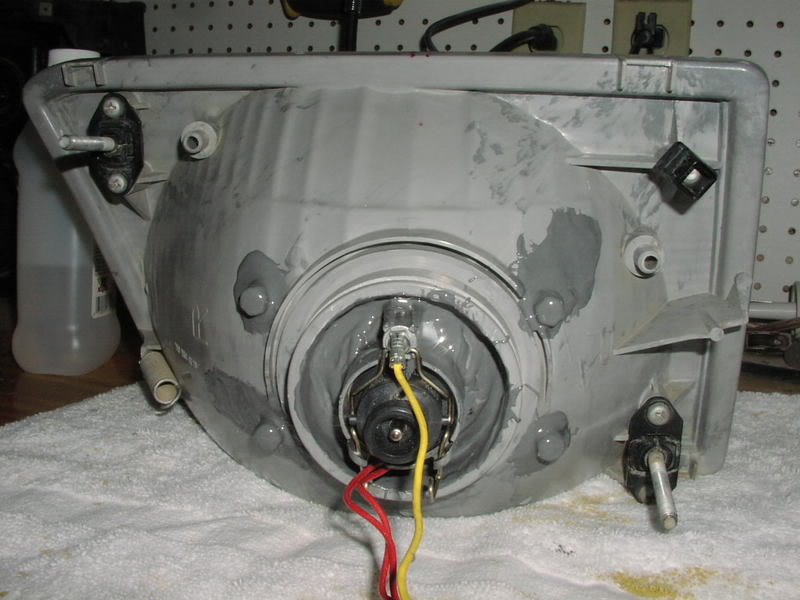

Backside of Light:

Since I did not get a picture of the back of my finished lights, here is a picture I got from WeCool.net. I used JB Weld to cover my 4 bolts as they did, but instead of using JB Weld to fill in the gap around the back of the projector as this one below, I simply used clear RTV Silicone. Less dry time and easily removable if need be:






The following day, I individually baked each light again for 5 minutes at 350 degrees in order to reseal the glass to the housing. Upon removing each light from the oven, I then firmly pressed the glass back to the housing. After the housings cooled, I placed a thin bead of clear RTV silicone around each light where the glass joins the housing. This was done to further waterproof the housings. I also took the same silicone and placed a good amount of it on the backside of each headlight, where the projector pushed thru the hole, to further seal any small openings.

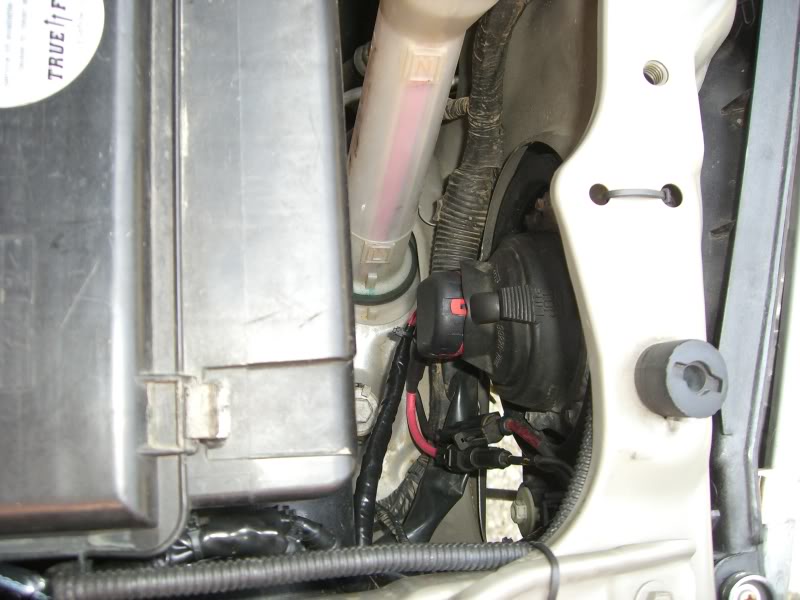

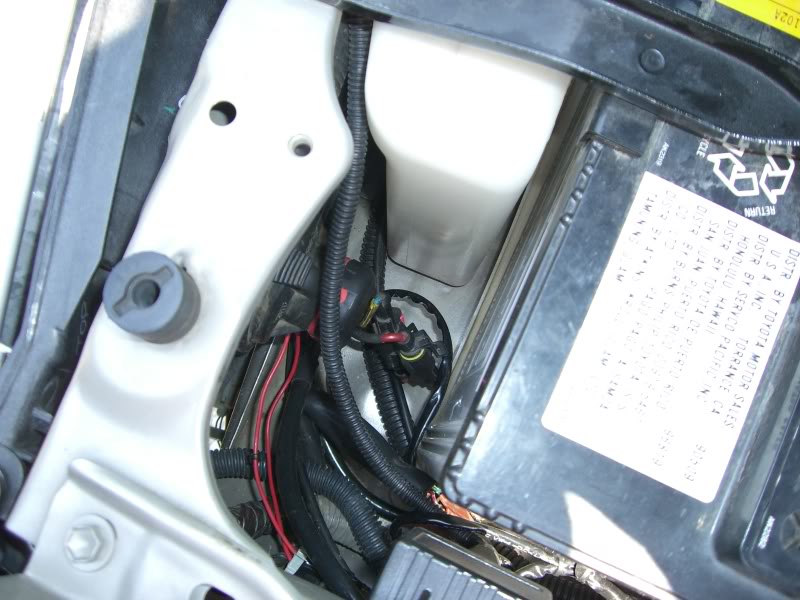

Finally, ran the wiring and mounted the Ballasts:

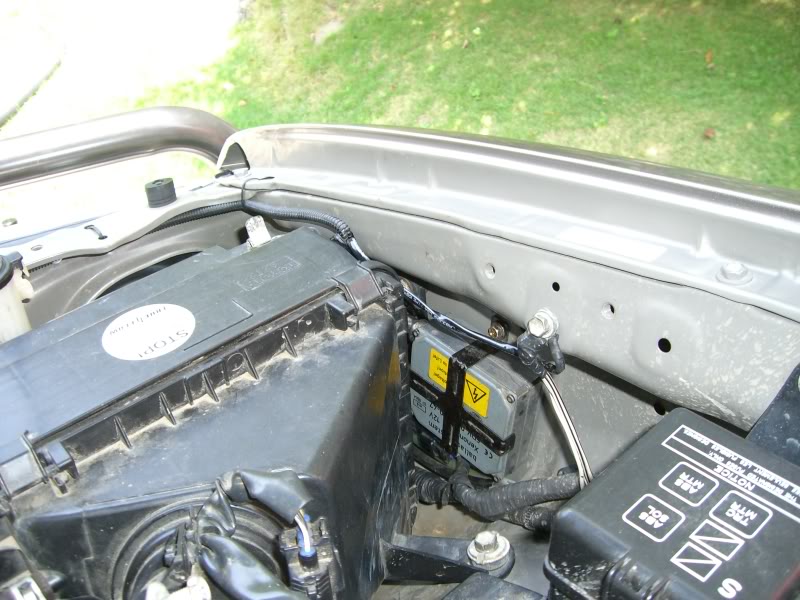

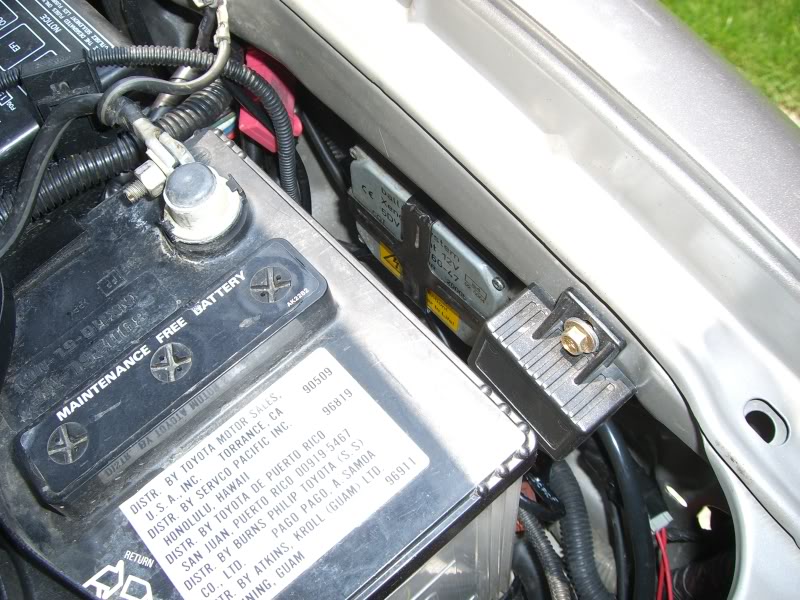

Ballasts Mounted in Engine Bay:

Passenger Side:


Driverside:




Bulbs Installed:

Passenger Side:


Driver Side:

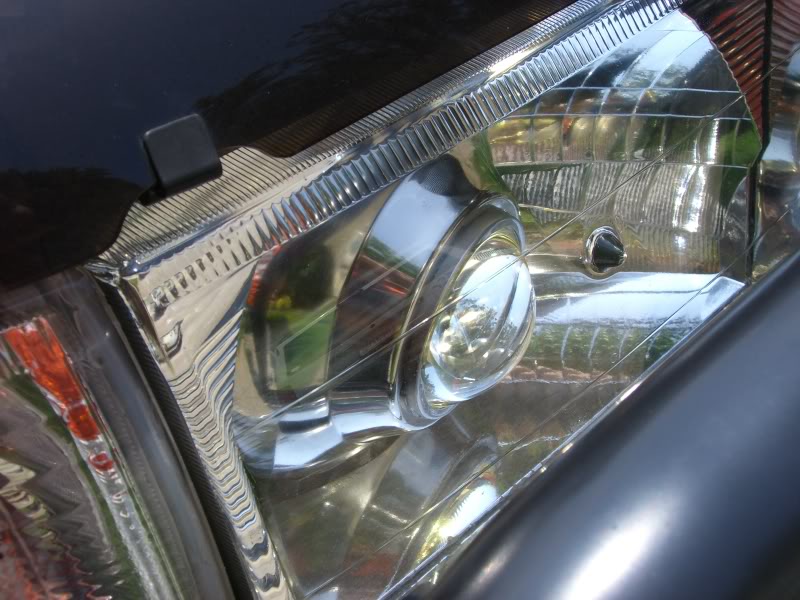

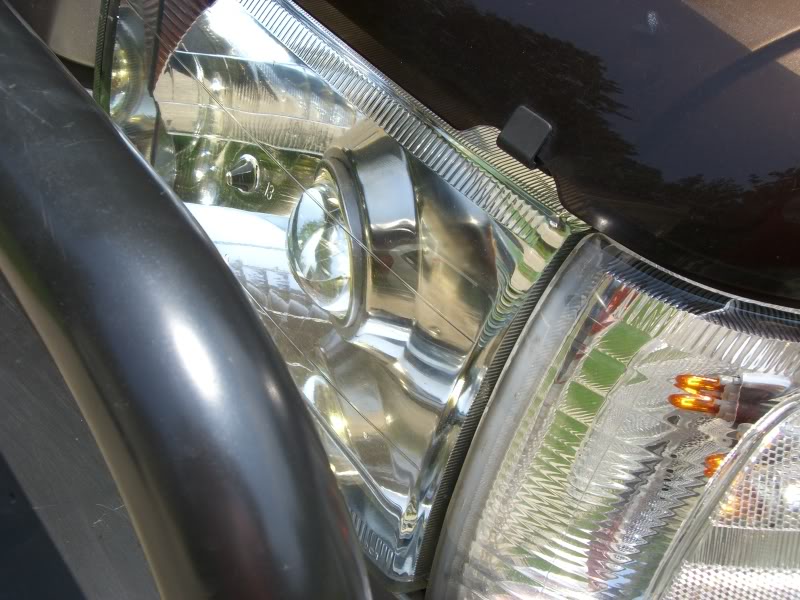

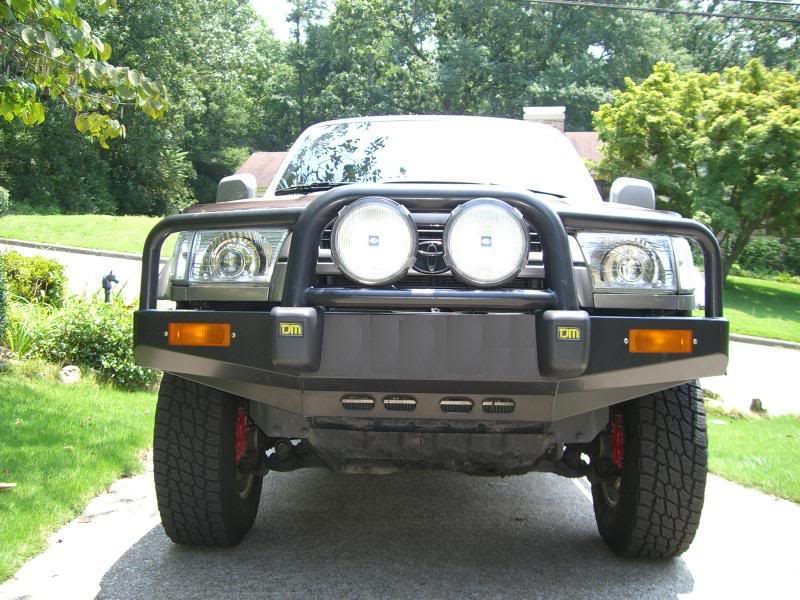

Head Lights Mounted:

(Please note, the headlights were not yet properly aimed when I took these photos.)










Aiming the headlights was effortless. I parked on a level surface, 25ft away from a wall and measured the distance from the center of the projector to the ground below. I took that measurement over to the wall and subtracted 2 inches. I marked this new measurement by placing a piece of tape horizontal on to the wall. Finally, I simply aligned the light cutoff on to the wall so it was even with the tape.


For more detailed information on aiming your headlights, check out this site: Click Me


I have not taken any night shots yet, but the light output is a significant improvement over stock. The light cutoff, created by the projectors, is so sharp, it puts aftermarket PnP kits to shame. Although I personally have never been blinded at night by others running PnP kits, I simply prefer the “look and feel” of Projectors instead. IMO, projectors create a more professional appearance in both aesthetics and light intensity.



EDIT:

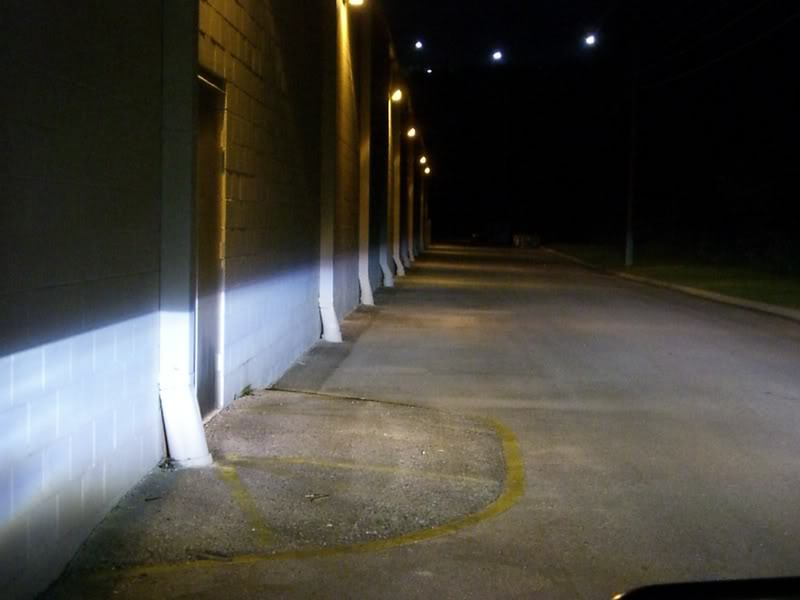

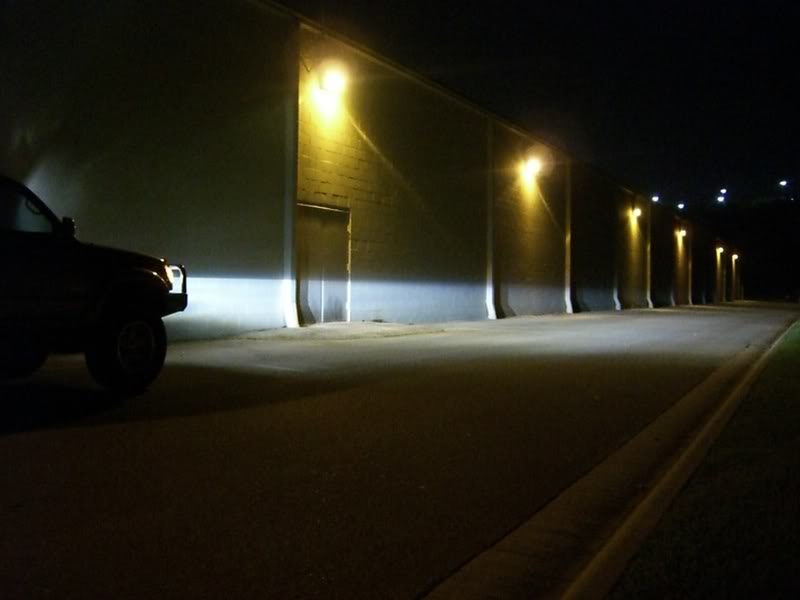

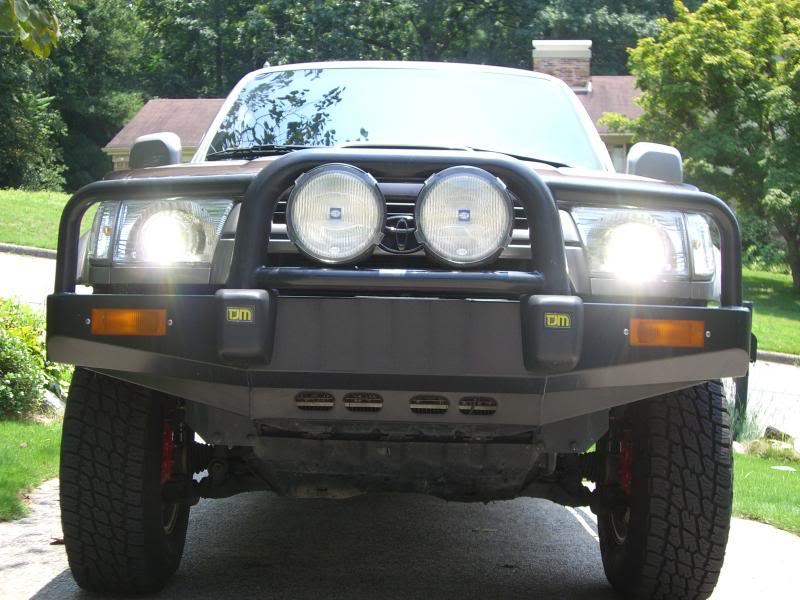

Here's a couple night shots:







Total Price for this Retrofit after everything was said and done…$285.00.




**PRICE LIST**


PURCHASED:
Donor Headlight - Driver..........35
Donor Headlight - Passenger....60
H4 Wiring Harness.............. ..30
2 Hella Gen3 Ballasts..............50
2 Phillip D2S H4 4300K Bulbs. ..50
2 Infiniti FX45 Projectors........75
2 Acura TSX Projectors..........150
4 Malibu Light Covers.............30
Total......................................$480.00

SOLD:
Donor Headlight - Driver.........58
Donor Headlight - Passenger...55
Acura TSX Projectors............55
Infiniti FX45 Lenses...............27
Total......................................$-195.00


Grand Total............................$285.00



There were no misc cost involved b/c I already had plenty of tape, RTV silicone, zip ties, dremel bits and what else just laying around the garage.

It was definitely worth it IMO.




**
