3rd Gen low profile sleeper platform and cargo drawers
#1
Registered User
Thread Starter
Join Date: Dec 2005
Location: Clear Lake, TX
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
3rd Gen low profile sleeper platform and cargo drawers
EDIT:
Since the original facebook album didn't work I'll slap some of the photobucket pics up now that I have a spare minute.
Built a basic box to fit between the wheel wells in the rear. 2x6 frame with drawer made from 1x4 pine. Bottom of drawers is 1/2" plywood. Mounted them in with 36" 250lb drawer slides (hoped to use them as seats, but dont think the wood will hold up to it)
Cut my 'table tops' to fit in empty space above drawers. left about 1/8" play on either side.
Stained, routed edges, and glued outdoor carpet to table tops.
Installed 3/4" plywood on top of the drawers and cut side flaps to fill in the gaps. Attached with piano hinges.

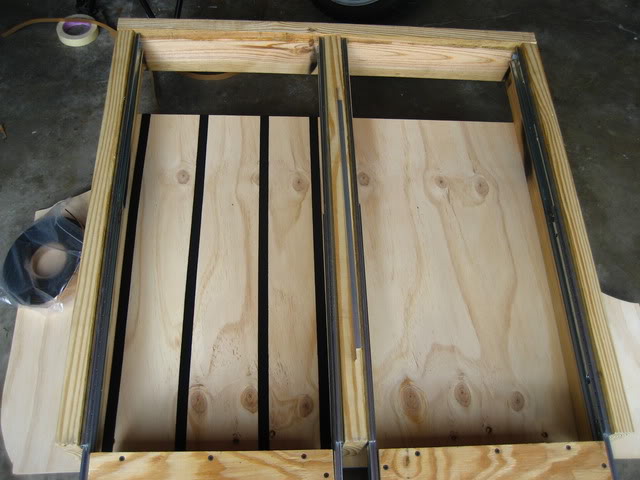

Flipped the whole thing over to install some felt tape on the underside of the platform. This will allow the stained and finished surface of the tabletops to slide without getting scratched up.

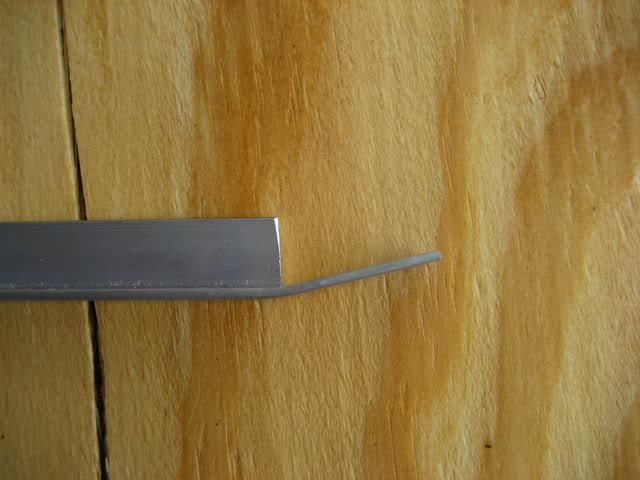

The carpeted side of the tabletops will ride along some 'skis' so they can be pulled out independently of the drawers. The tip of the ski drops low enough that if you push the drawer in with table top out, they will automatically catch the table top and slide it back up into place. Just a piece of 1/2"x1/2" angle iron 2' long. Cut about 1.5" off each end to bend.
(currently missing a pic of how they mount but let me know if you have any questions, again just have a few minutes to post this so I'm trying to get as much down as I can)

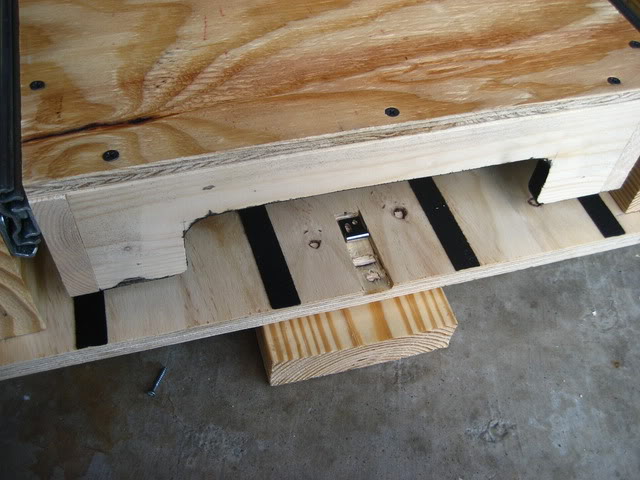

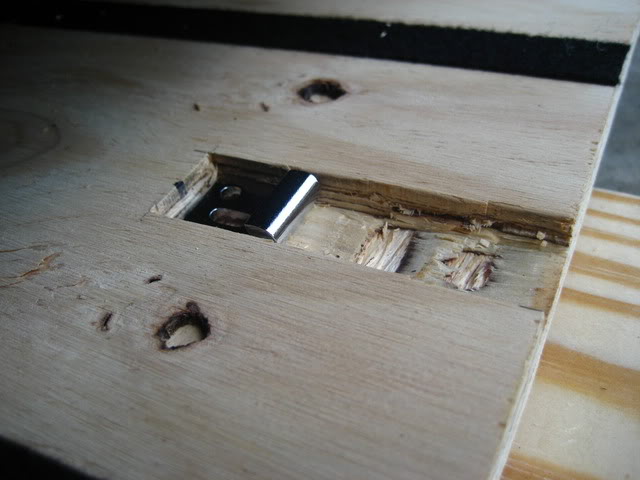

For latches I used a simple cabinet latch that will be completely hidden. The striker for the latch had to be countersunk to allow the table tops to slide in and out.

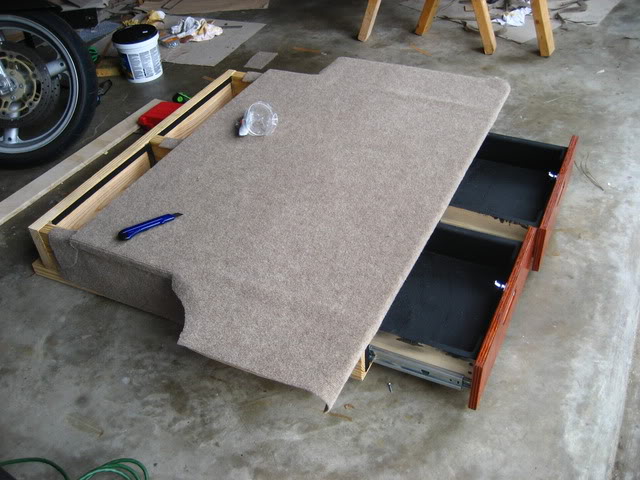

I covered the whole upper surface with outdoor carpeting, stained and finished the drawer fronts, and sprayed a can of duplicolor bed liner in each drawer. If you notice, the platform surface doesn't go completely to the rear of the drawers. This allows support for the filler panels I put on.
Finished product
Tabletops stored in the unit just above the drawers so they are out of the way until you need them

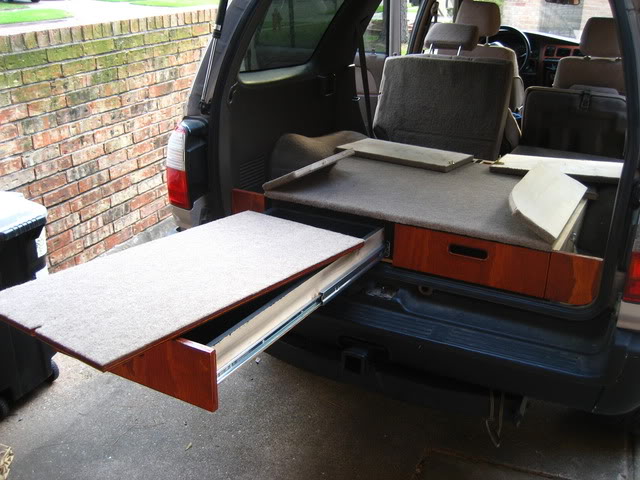

Here is a shot with a table top completely pulled out, wing pockets open, and the two filler panels removed.
Same shot from the rear seats looking out. You can see the added draw catch that reinforces the weak point right behind the seats.
And lastly, one of the sleeper configurations. Pull out a table top, flip it over, and it will rest on the same overhang as the fill panels, just put a support board under the front end and you have extended cargo area or sleeper. The sizes are designed such that I could remove the bottom rear seat and use the table top AND the fill panel to make an even longer sleeper platform but havn't yet cut the support pieces to test that.
My schematics are still burried in the garage but when I find them, I'll try to scan them and put them up here as well. Let me know if you have any questions and I'll try to answer what I can remember off the top of my head. Again I appologize for not having more time to document the whole thing right now, but I'll try to get back to it if there is interest from you guys. Enjoy
-Nick
