95.5-2004 Tacomas & 96-2002 4Runners 4th gen pickups and 3rd gen 4Runners

3.4 swap and Charcoal canister ?

Thread Tools

Search this Thread

Old 11-14-2005 | 05:34 PM
  #1
Tragic Drive's Avatar
Thread Starter
Contributing Member

Joined: Jun 2003
Posts: 432
Likes: 1
From: Maryland
3.4 swap and Charcoal canister ?

So Ive recently put a 3.4 in my 95Runner and as we were loading the truck into the trailer heading to the exhaust shop gas started dripping under the truck. It was a good amount of gas more like a stream instead of a drip. So we shut the truck off and pushed her back out and lifted the hood to find gas coming out of the vent tube of the charcaol canister.
Name:  ce4019bc.jpg
Views: 16961
Size:  47.4 KB

I think I had the lines hooked up backwards that go the fuel tank but I'm still not sure. On my original canister there are two ports one reads "To fuel Tank" and the other Reads " purge". I hooked the fuel return from the 3.4 to the line that was on "To fuel tank" and the one from the Charcoal canister to the line that was hooked up to purge..I've since switched them and everything seems fine but I wonder if I ruined my new charcoal canister by saturating it with fuel. Can someone help me out ??


Name:  006.jpg
Views: 4865
Size:  48.2 KB
Old 11-14-2005 | 06:49 PM
  #2
MTL_4runner's Avatar
Contributing Member

Joined: Jul 2003
Posts: 8,807
Likes: 3
From: Montreal, QC Canada
If you filled it completely with fuel it may not be ruined but it will take a long time to dry out and function correctly....it may throw a code if you have OBD II hooked up too. Sounds like you just had the two lines crossed if it is not overflowing now.

Last edited by MTL_4runner; 11-14-2005 at 06:53 PM.
Old 11-15-2005 | 09:27 AM
  #3
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
Man, tragic. I will learn from your mistake. I'm about to put my 3.4 canister on in a couple of days so let me know if you find the correct hookup.
Old 11-15-2005 | 09:28 AM
  #4
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
Where did you get the braided line for the clutch?
Old 11-15-2005 | 09:41 AM
  #5
mt_goat's Avatar
Contributing Member

Joined: Nov 2002
Posts: 10,666
Likes: 5
From: Oklahoma State
I was planning on using my original 1993 charcoal canister with a 3.4 engine from a 2001 Taco, was there a problem throwing codes with using your original can?
Old 11-15-2005 | 09:44 AM
  #6
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
I haven't put it in yet. But I wouldn't chance it. I thought about it to for a second cause the 3.4 4x4 canister looks complicated but I just decided to get the 3.4 canister. Cost me $40 shipped.
Old 11-15-2005 | 09:45 AM
  #7
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
Do you have a service manual? They show how some of the lines on the canister hook up.
Old 11-15-2005 | 09:48 AM
  #8
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
By the way there are 2 fuel line near the steel inlet line. The one closest to the inlet is the return line. The one closest to the passenger fender wall is for the canister. Hope that helps.
Old 11-15-2005 | 10:06 AM
  #9
mt_goat's Avatar
Contributing Member

Joined: Nov 2002
Posts: 10,666
Likes: 5
From: Oklahoma State
Mike @ORS told me he has had success using the original can so I was going to try that route. Where did you score a 3.4 can for $40 those things are scarce as hen's teeth?

Last edited by mt_goat; 11-15-2005 at 11:52 AM.
Old 11-15-2005 | 10:54 AM
  #10
rimpainter.com's Avatar
Contributing Member

Joined: Jan 2003
Posts: 10,916
Likes: 1
By the way, the pictured canister is the older one, which will make the buzzing noise during EVAP. I don't really care about the noise, but if possible, you swap guys should try and get the canister with the buzz-reduction modification, which should be 97+.
Old 11-15-2005 | 11:20 AM
  #11
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
Got one from ebay. the only one I could find. They call it a fuel vapor canistor. Good luck.
Old 11-15-2005 | 04:02 PM
  #12
Tragic Drive's Avatar
Thread Starter
Contributing Member

Joined: Jun 2003
Posts: 432
Likes: 1
From: Maryland
Originally Posted by hektikwon
By the way there are 2 fuel line near the steel inlet line. The one closest to the inlet is the return line. The one closest to the passenger fender wall is for the canister. Hope that helps.
Well that is how I had it hooked up originally. You can see the blue vaccum line (close to the fire wall) in my 2nd picture that is hooked up to the canister. The black gas line is hooked up to the fuel return on the motor.

When I applied air to the line on the firewall you could hear bubbles coming from the tank so that line is submerged. When I applied air to the line farther away from the firewall you could hear the air in the tank so that line is not submerged.

I think I should have orignally hooked up the canister to the line that is not submerged and the fuel return to the line that is submerged. The way the lines are in the picture I believe are incorrect.

hektikwon, The braided line comes with the Downey headers. As far as the canister is concerned I would have rather used my original but this one came with the motor so it wasnt a big deal. But it definatley takes up underhood realestate the newer (97+) buzz free ones are smaller.
Old 11-24-2005 | 11:16 AM
  #13
Tragic Drive's Avatar
Thread Starter
Contributing Member

Joined: Jun 2003
Posts: 432
Likes: 1
From: Maryland
So , I can finally wrap this thread up. After 50 miles so far no fuel coming thru the canister. Thanks, You guys for the help.

Old 11-24-2005 | 08:55 PM
  #14
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
How did you get your engine harness to stretch all the way to the hole on the firewall? I couldn't and just stuck the old boot on there where it goes inside.
Old 11-25-2005 | 11:48 AM
  #15
Tragic Drive's Avatar
Thread Starter
Contributing Member

Joined: Jun 2003
Posts: 432
Likes: 1
From: Maryland
Originally Posted by hektikwon
How did you get your engine harness to stretch all the way to the hole on the firewall? I couldn't and just stuck the old boot on there where it goes inside.
Yeah this had me stumped for a while until I started unwrapping the factory tape. I was able to free up about 5 to 6 inches and was able to get the 3.4 boot to match up to the firewall. I then had to drill new holes for the 3.4's boot and I used some FPG to seal the deal.

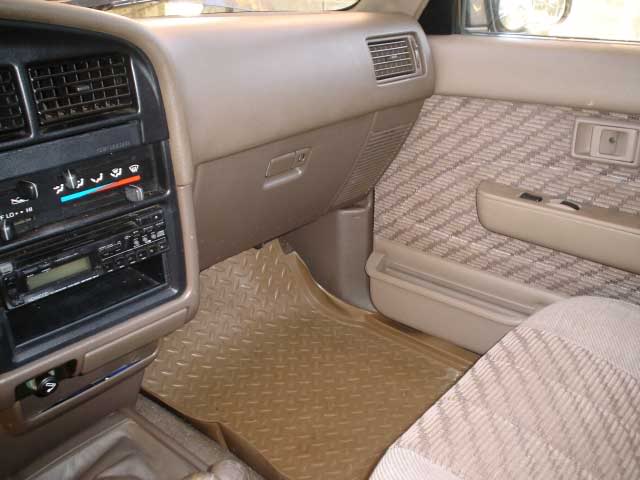

There is really not that much wire to connect to ECU its a very tight fit. I have the part numbers for the molex connectors that plug into the ECU and I will build some extensions so I can mount the ECU in a better location. Its in the facory location right now but the factory brackets wont line up to properly mount it. Here is the after picture of what my pass side floor looks like I had to trim a few inches form the kick panel so It would fit. You really cant even tell.

Name:  11-11-05-ECU-under-floor.jpg
Views: 2865
Size:  32.6 KB
Old 11-25-2005 | 04:28 PM
  #16
hektikwon's Avatar
Registered User

Joined: Oct 2004
Posts: 481
Likes: 0
From: NE GA (Between blizzads & hurricanes)
I got my wire to go to the hole today. I had to cut some tape off then covered the exposed wires with electric tape. If you turn your ECU to have the plugs up and tilt it towards the firewall you can use the small bracket that has the notched part on it and screw it in. I had to remove the white bracket that held the body plugs in place to let them move freely. The fixed screw thingy that the kick panel screws on should hold the top in place snug.
Old 11-25-2005 | 11:01 PM
  #17
midiwall's Avatar
Registered User

Joined: Dec 2002
Posts: 9,048
Likes: 2
From: Seattleish, WA
Originally Posted by <96 Runner>
By the way, the pictured canister is the older one, which will make the buzzing noise during EVAP. I don't really care about the noise, but if possible, you swap guys should try and get the canister with the buzz-reduction modification, which should be 97+.
(older thread informational add-on!)

If you don't want to bother with the canister swap, and the noise bugs you, then when you kill the engine, pop the fuel filler door, open the gas cap, and let the pressure equalize. The buzzing/wheezing will stop. It could start again though if it's warm out - the air in the tank will heat up, expand, and create pressure at the evap canister.
