I started tearing the motor down. Got the Plenum off and one of the metal lines was so plugged up, I had to take a drill bit by hand to get it clear. This is actually alot cleaner then some I have seen. I will make a block off plate to avoid this.
I got to the Intake side and the Allen Bolt stripped on me. This isnt the first time it has happened to me. I think I will try and find a regular bolt to put in. I am sure there is one out there.
I got the valve cover off and I think the timing chain has been replaced before. The Chain Guides looked new. The head itself looked really clean, with the exception of exhaust valves #3 and #4. It is probably one of the cleanest I have seen. I wondering if it was redone before the PO parked it. I couldnt see anything out of the ordinary with just the cover off.
I did loose a 12mm socket. I checked all of the usual hiding places such as the front axle, on top of the fuel filter, and on top of the starter. I looked for 15-20 minutes. I seen fall off on the Intake side and it didnt go all the way to the ground. I think chasing tools around is just part of being a mechanic. : )
I replaced my back gate. The window was out and someone had cut the wires to the motor. It was just easier to replace the whole thing. The gate worked on my parts truck but not on this one. I havent looked into it just yet. I hoping it might just be a fuse, but not sure I could be so lucky. I will start from the switch back. Electrical is not my strongest area. I know just enough to be dangerous.
Well I started cleaning some more parts I took off. It is a slow process.
I got to the Intake side and the Allen Bolt stripped on me. This isnt the first time it has happened to me. I think I will try and find a regular bolt to put in. I am sure there is one out there.
I got the valve cover off and I think the timing chain has been replaced before. The Chain Guides looked new. The head itself looked really clean, with the exception of exhaust valves #3 and #4. It is probably one of the cleanest I have seen. I wondering if it was redone before the PO parked it. I couldnt see anything out of the ordinary with just the cover off.
I did loose a 12mm socket. I checked all of the usual hiding places such as the front axle, on top of the fuel filter, and on top of the starter. I looked for 15-20 minutes. I seen fall off on the Intake side and it didnt go all the way to the ground. I think chasing tools around is just part of being a mechanic. : )
I replaced my back gate. The window was out and someone had cut the wires to the motor. It was just easier to replace the whole thing. The gate worked on my parts truck but not on this one. I havent looked into it just yet. I hoping it might just be a fuse, but not sure I could be so lucky. I will start from the switch back. Electrical is not my strongest area. I know just enough to be dangerous.
Well I started cleaning some more parts I took off. It is a slow process.
Last edited by Terrys87; 03-01-2016 at 02:05 AM.
01-29-2011 | 06:47 AM
#43
Thread Starter
Joined: Aug 2008
Posts: 11,787
Likes: 25
From: Anderson Missouri
Fix: How to clean an EGR and fix code 71 is below pictures.
More how to pics: https://www.yotatech.com/forums/f199...l#post52146627
Did get a few more parts cleaned and got the stripped Allen bolt out. So am making steady progress.
--------------------------------------------------------------------------------------------------
Fix for EGR/ Code 71
I got a couple of pictures out of order, but this should give you a good idea of what is needed to be done. You can leave the Plenum on the truck and clean the parts and hoses, I tried to explain both on and off the truck. Best is to take it off and pressure wash it.
I have ran into several EGR codes 71. I have been able to get them fixed without ever replacing one. There may come a time that I will have to replace one. To fix this problem, it will have a bunch of carbon, blocking flow of things. These EGRs usually cost $150 or more new.
2 bolts hold it to the back of the plenum and 3 to the head. Remove and clean out the little tube on the EGR for the vacuum hose and the pipes attached to the EGR. I will use a drill bit, cloth hanger and air hose. Probably could use brake cleaner or something.
This EGR is set up a little different then most but the Valve and EGR are the same as yours. You should be able to a vacuum on the hose and a vacuum on the EGR and get air to flow through(where my thumb and pointer finger is). I have a drill bit in the small tube. I usually try to take the screw out and but this one doesnt want to come out and dont want to risk breaking. A small wire will get around the bend. Get all pipes clean.
If you leave the Plenum on the truck,take a cloth hanger/ wire and clean out the back of the Plenum where the 2 bolts connect. It will have a bunch of carbon there also. I just work it with wire and air hose til I get it the best that I can.

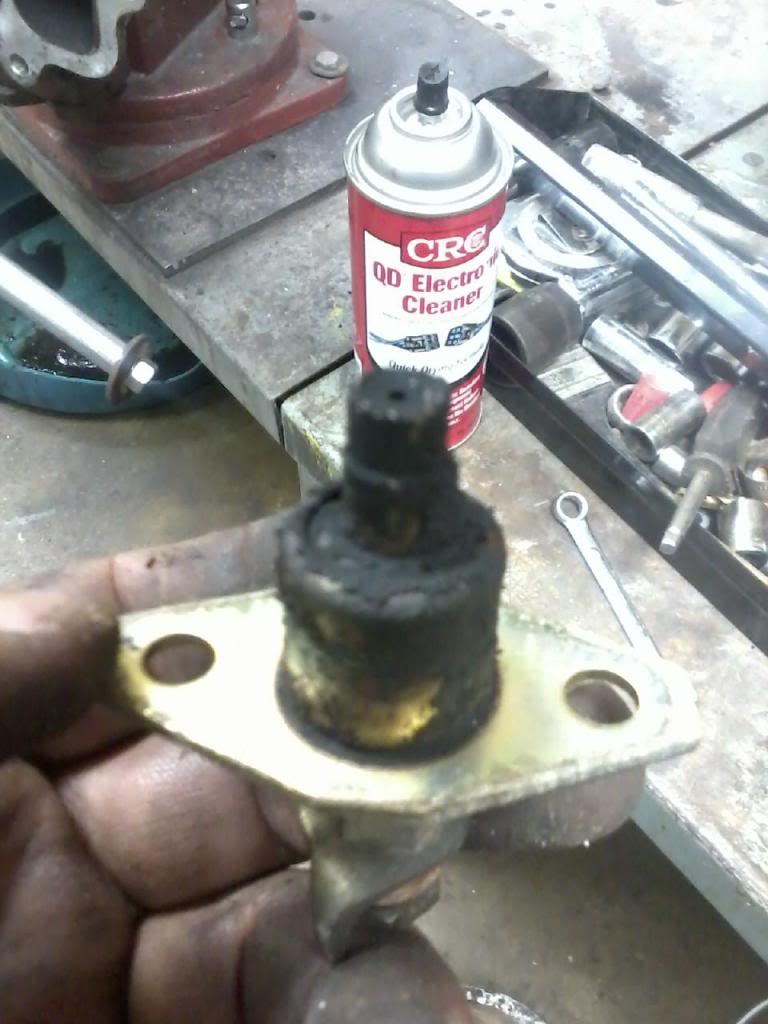

Here is how I clean the EGR. You will most likely need to pull the Plenum and clean all of the hoses and pipes as they will probably be plugged as well.

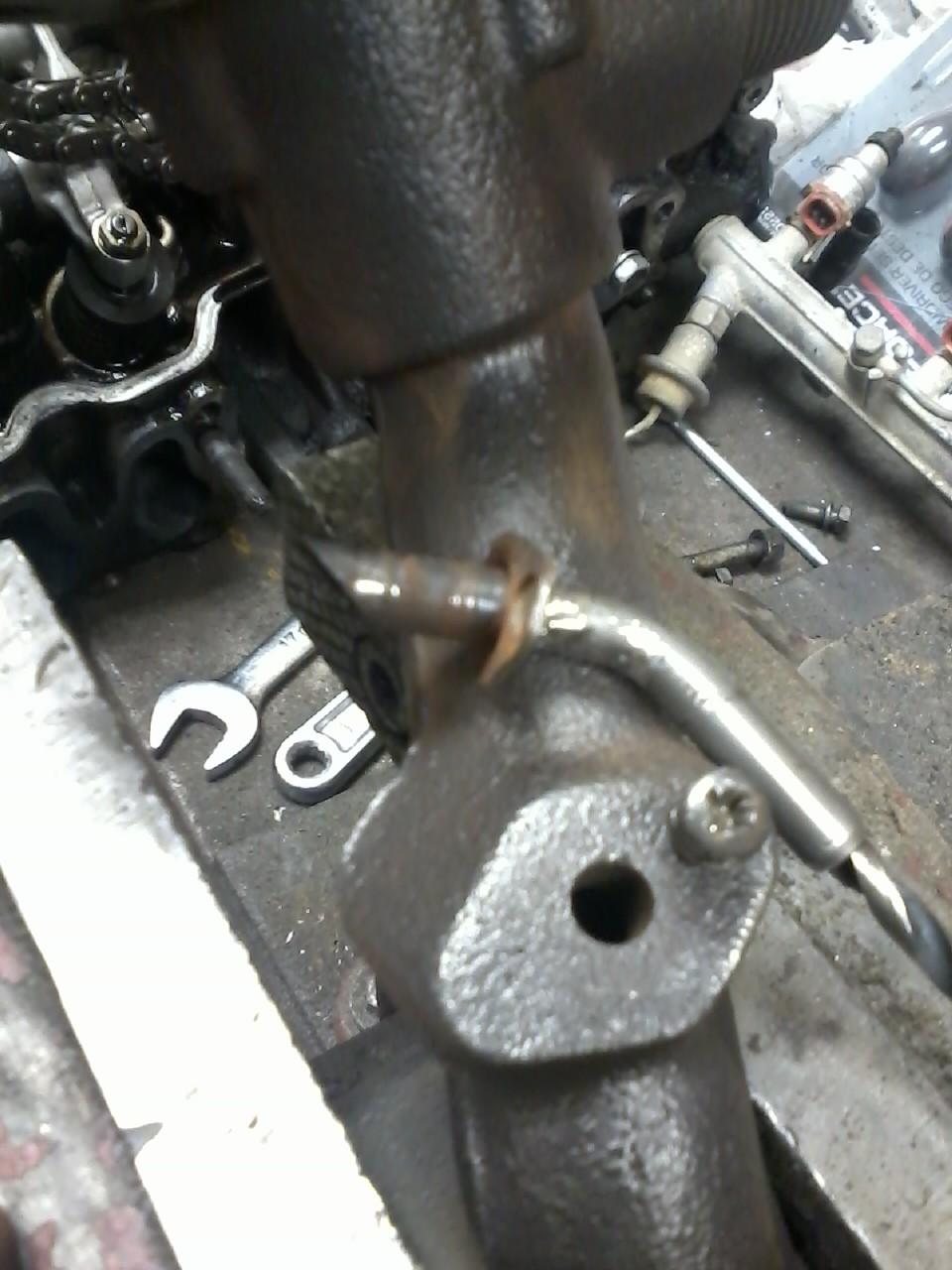

I worked on the EGR. Here is another picture that may look like the wrong way to do this, but the screw will strip if you use a screwdriver. Get a good firm grip, but not so hard to distort the screw.

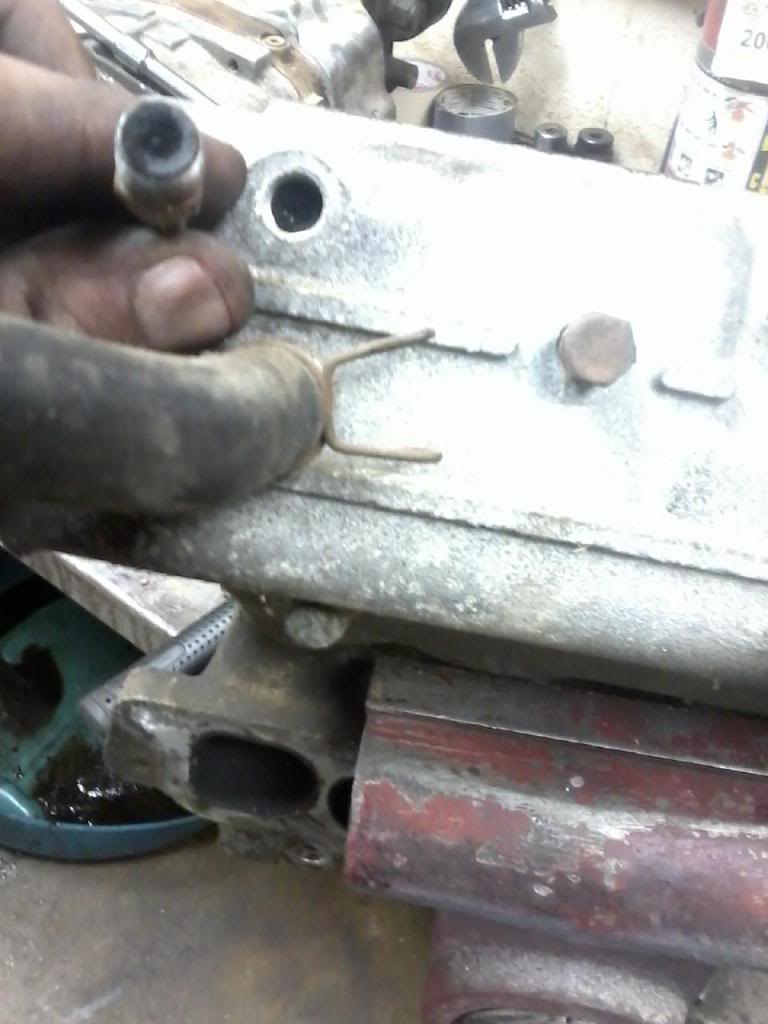

With the screw out, get another bite on the the pipe to get it out of the EGR. Leave the carbon in the pipe at this time as it will help keep the pipe round. The carbon is hard as concrete. Slowly work back and forth to get the pipe spinning inside the EGR tube and to start breaking it free. Could take up to 10 minutes but just be patient.

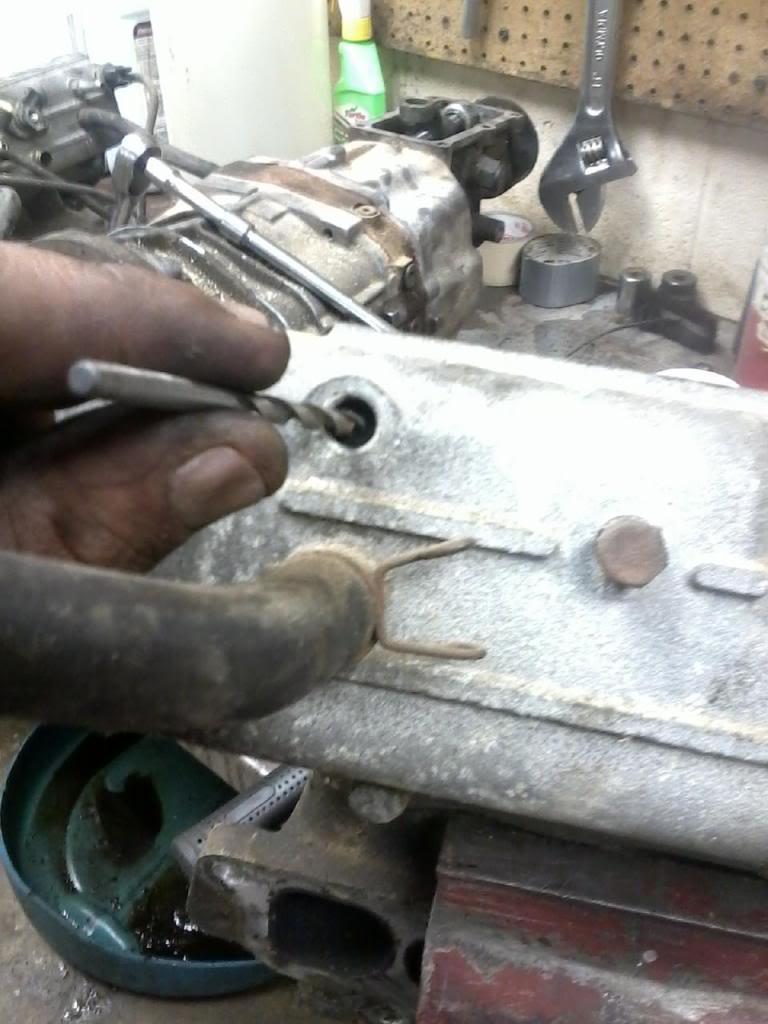

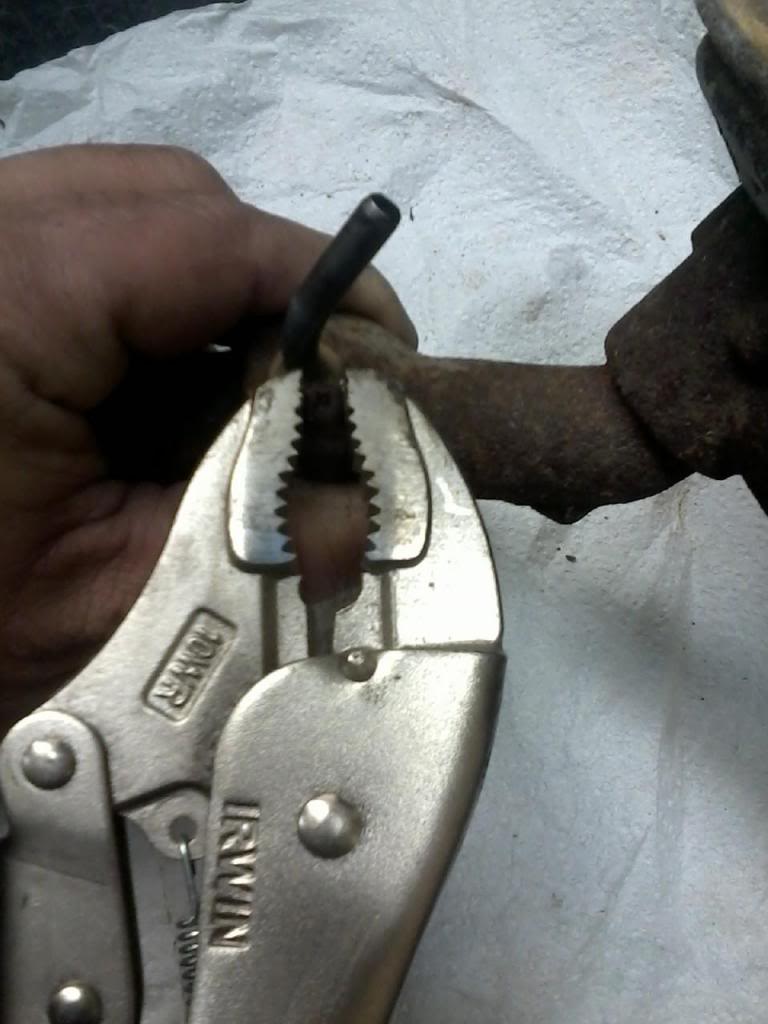

Here is me using a drill bit. I have never gotten as screw out with a Phillips screwdriver. Ususally rusted to bad. I use vise grips, then getting the pipe out is another job in itself. Take your time, you have to get this out to get all the carbon out.
After it is apart, I use a drill bit, screw driver, nail, clothes hanger to get all of the carbon out. It is rock solid in places. You can put vacuum on the hose and see and hear the plunger moving and operating inside the EGR, the goldish part.
If you take the Plenum off, Pull the Throttle Body off and take the Plenum to the carwash. The Thottle Postion Sensor is on the Throttle Body. Dont get it wet with water or cleaner. I just leave it on. You dont want the TPS giving problems. Where the EGR connects on to the Plenum, it will be very dirty. It has tubes that go through the Plenum so you wont be able to see all the way through. I take some kind of cleaner and spray into it to break up the carbon.

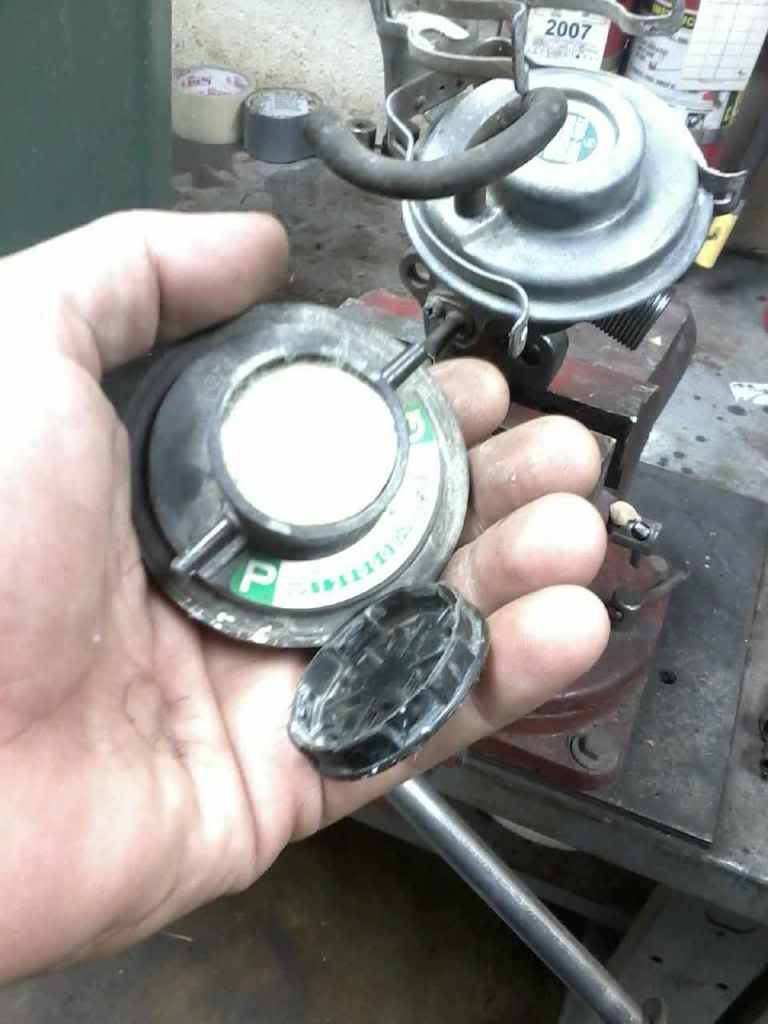

On the Brown Valve, just pop the black cap off and take an air hose and blow the paper filter clean.
All of the hose connections on the Plenum will more than likely be plugged to. Here to I use a drill bit with my fingers and get it all cleared out. Check the hoses also and make sure there is no carbon blocking them.

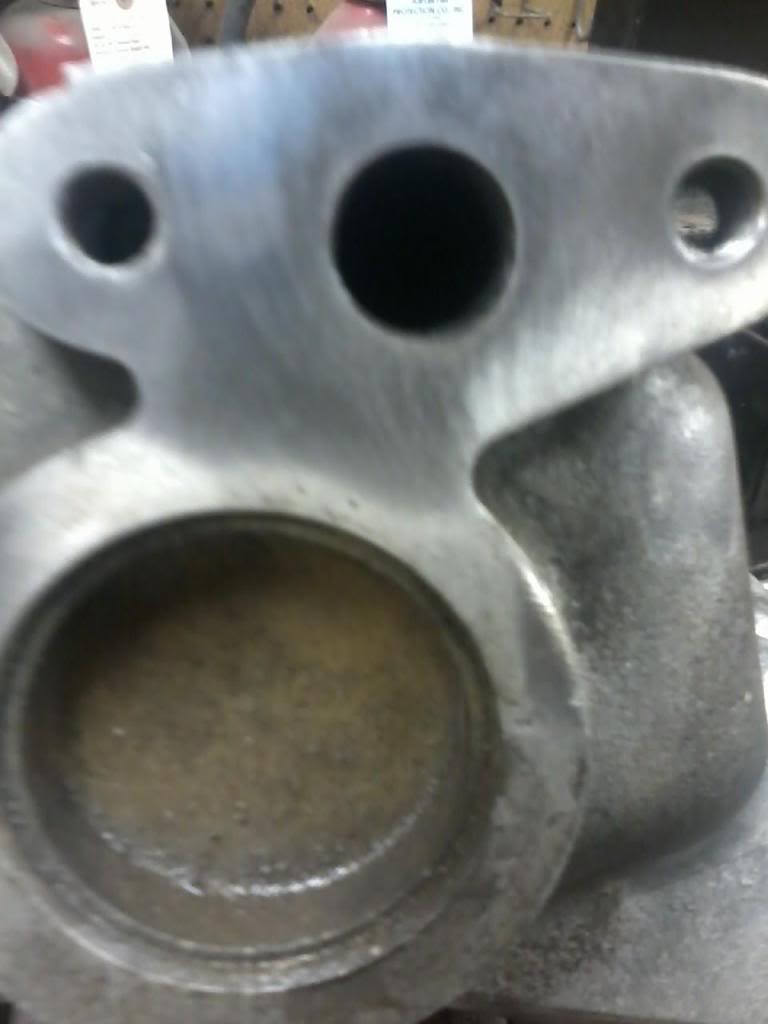

Here both the port and line is completely plugged with carbon. There were others plugged as well.
The Cold Start Injector is held on with two 10 mm bolts. The Throttle Body and Cold Start Injector gaskets usually stay on the Plenum and I just reuse the gaskets. Just be careful cleaning around them so as not to damage and you can reuse the gasket. Here is a picture of a dirty CSI. I just clean it up with a wire tooth brush. It will have a metal line connected to it. Double check when you start your truck up that it is not leaking. This is on place it will want to leak and is under a lot of pressure.

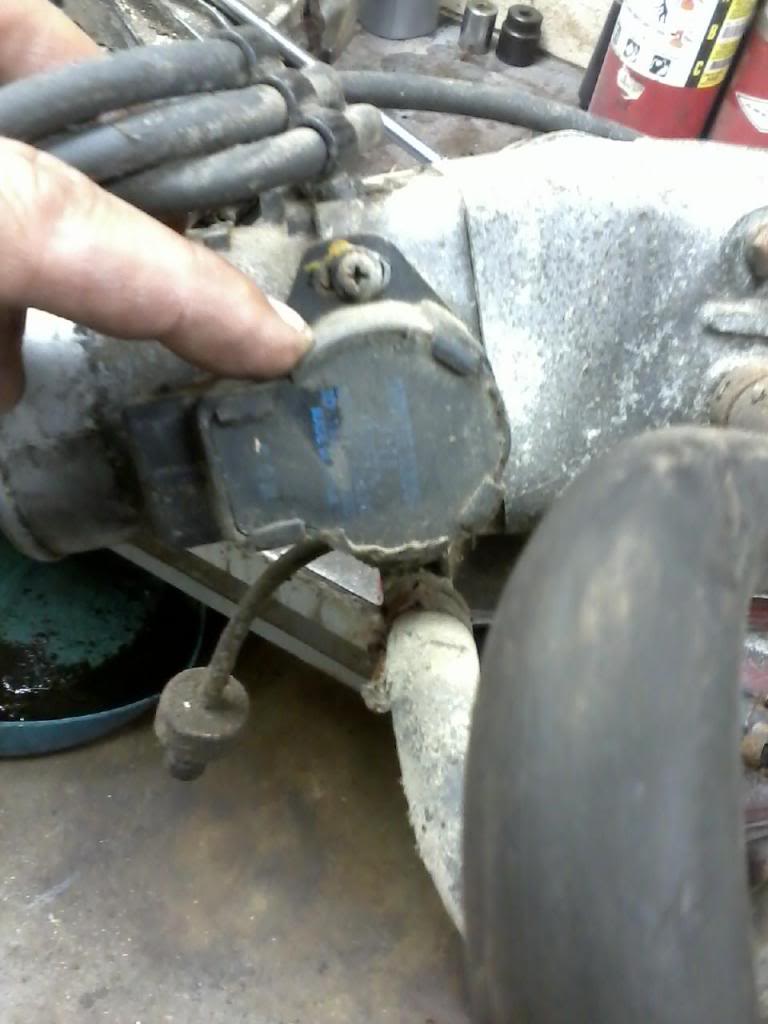

Here is a picture of the Throttle Position Sensor. You dont want to remove this from the Throttle Body or get it wet with water or chemical cleaners. Just clean around it.
The best way to get this is to remove the Throttle Body and take the Plenum to a carwash and really wash it out good. You will be surprised at the build up in it. I can usually have this done from start to finish in about an hour to an hour and half.
In Post #42 is a poor picture of some of the build up. The Modulator on the head cover may just need taken apart and cleaned with an air hose. The Haynes manual on page 6-38 says "California Model only" for a Code #71, this pretty much applies to all trucks.
More how to pics: https://www.yotatech.com/forums/f199...l#post52146627
Did get a few more parts cleaned and got the stripped Allen bolt out. So am making steady progress.
--------------------------------------------------------------------------------------------------
Fix for EGR/ Code 71
I got a couple of pictures out of order, but this should give you a good idea of what is needed to be done. You can leave the Plenum on the truck and clean the parts and hoses, I tried to explain both on and off the truck. Best is to take it off and pressure wash it.
I have ran into several EGR codes 71. I have been able to get them fixed without ever replacing one. There may come a time that I will have to replace one. To fix this problem, it will have a bunch of carbon, blocking flow of things. These EGRs usually cost $150 or more new.
2 bolts hold it to the back of the plenum and 3 to the head. Remove and clean out the little tube on the EGR for the vacuum hose and the pipes attached to the EGR. I will use a drill bit, cloth hanger and air hose. Probably could use brake cleaner or something.
This EGR is set up a little different then most but the Valve and EGR are the same as yours. You should be able to a vacuum on the hose and a vacuum on the EGR and get air to flow through(where my thumb and pointer finger is). I have a drill bit in the small tube. I usually try to take the screw out and but this one doesnt want to come out and dont want to risk breaking. A small wire will get around the bend. Get all pipes clean.
If you leave the Plenum on the truck,take a cloth hanger/ wire and clean out the back of the Plenum where the 2 bolts connect. It will have a bunch of carbon there also. I just work it with wire and air hose til I get it the best that I can.
Here is how I clean the EGR. You will most likely need to pull the Plenum and clean all of the hoses and pipes as they will probably be plugged as well.
I worked on the EGR. Here is another picture that may look like the wrong way to do this, but the screw will strip if you use a screwdriver. Get a good firm grip, but not so hard to distort the screw.
With the screw out, get another bite on the the pipe to get it out of the EGR. Leave the carbon in the pipe at this time as it will help keep the pipe round. The carbon is hard as concrete. Slowly work back and forth to get the pipe spinning inside the EGR tube and to start breaking it free. Could take up to 10 minutes but just be patient.
Here is me using a drill bit. I have never gotten as screw out with a Phillips screwdriver. Ususally rusted to bad. I use vise grips, then getting the pipe out is another job in itself. Take your time, you have to get this out to get all the carbon out.
After it is apart, I use a drill bit, screw driver, nail, clothes hanger to get all of the carbon out. It is rock solid in places. You can put vacuum on the hose and see and hear the plunger moving and operating inside the EGR, the goldish part.
If you take the Plenum off, Pull the Throttle Body off and take the Plenum to the carwash. The Thottle Postion Sensor is on the Throttle Body. Dont get it wet with water or cleaner. I just leave it on. You dont want the TPS giving problems. Where the EGR connects on to the Plenum, it will be very dirty. It has tubes that go through the Plenum so you wont be able to see all the way through. I take some kind of cleaner and spray into it to break up the carbon.
On the Brown Valve, just pop the black cap off and take an air hose and blow the paper filter clean.
All of the hose connections on the Plenum will more than likely be plugged to. Here to I use a drill bit with my fingers and get it all cleared out. Check the hoses also and make sure there is no carbon blocking them.
Here both the port and line is completely plugged with carbon. There were others plugged as well.
The Cold Start Injector is held on with two 10 mm bolts. The Throttle Body and Cold Start Injector gaskets usually stay on the Plenum and I just reuse the gaskets. Just be careful cleaning around them so as not to damage and you can reuse the gasket. Here is a picture of a dirty CSI. I just clean it up with a wire tooth brush. It will have a metal line connected to it. Double check when you start your truck up that it is not leaking. This is on place it will want to leak and is under a lot of pressure.
Here is a picture of the Throttle Position Sensor. You dont want to remove this from the Throttle Body or get it wet with water or chemical cleaners. Just clean around it.
The best way to get this is to remove the Throttle Body and take the Plenum to a carwash and really wash it out good. You will be surprised at the build up in it. I can usually have this done from start to finish in about an hour to an hour and half.
In Post #42 is a poor picture of some of the build up. The Modulator on the head cover may just need taken apart and cleaned with an air hose. The Haynes manual on page 6-38 says "California Model only" for a Code #71, this pretty much applies to all trucks.
Last edited by Terrys87; 10-07-2015 at 01:31 PM.
01-30-2011 | 12:56 AM
#44
Thread Starter
Joined: Aug 2008
Posts: 11,787
Likes: 25
From: Anderson Missouri
May not be the best picture, but it does show the overall condition of the head. The far rockers on
right have carbon/ sludge like build up. The rest of the head is really clean. I thinking the head gasket
was leaking between #3 and #4 cylinders. I am taking the head in to the machine shop to have it
checked out.
Any suggestions as what to look for as I am wondering if I have a crack in
the head that would cause this?? Also on the intake side of the head there
feels and looks like an oil leak that has like a rubbery feeling to it. It is not dry,
powdery,crusty build up like carbon would have. It is in all 4 of the intake runners.
I think once I hear the results of the head being checked will answer alot of my questions.
It will be around 4 or 5 days before I get a chance to have it checked. I will get some pictures of it up so show the runners on the intake.
Thanks for any suggestions.
