irab88's 1993 PickUp Build-Up Thread
#61

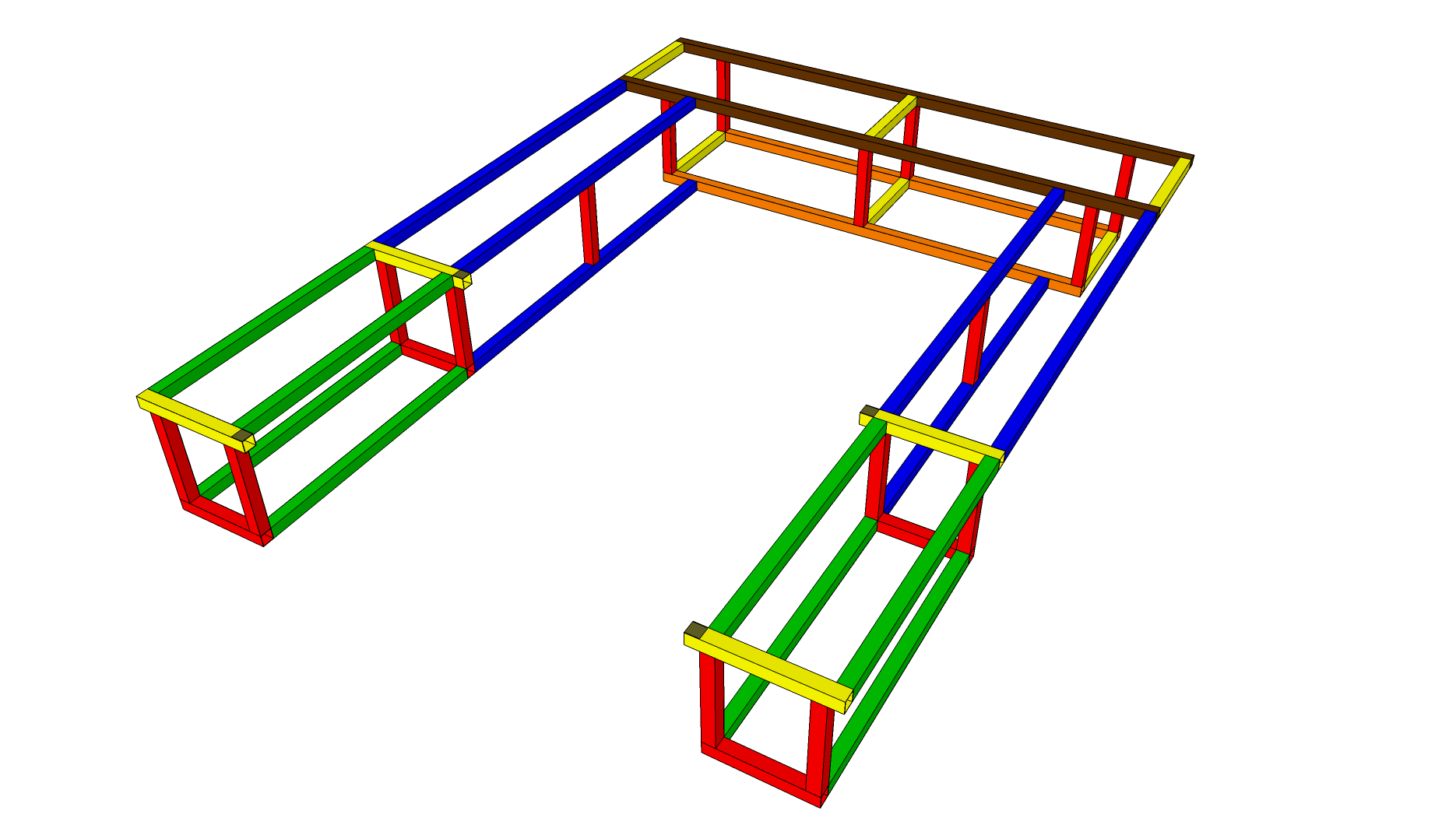

here is the updated drawing, with each length color-coded. the new design uses almost 5 feet less than before (70'8" vs. 75'). that also means it's lighter by a few pounds.

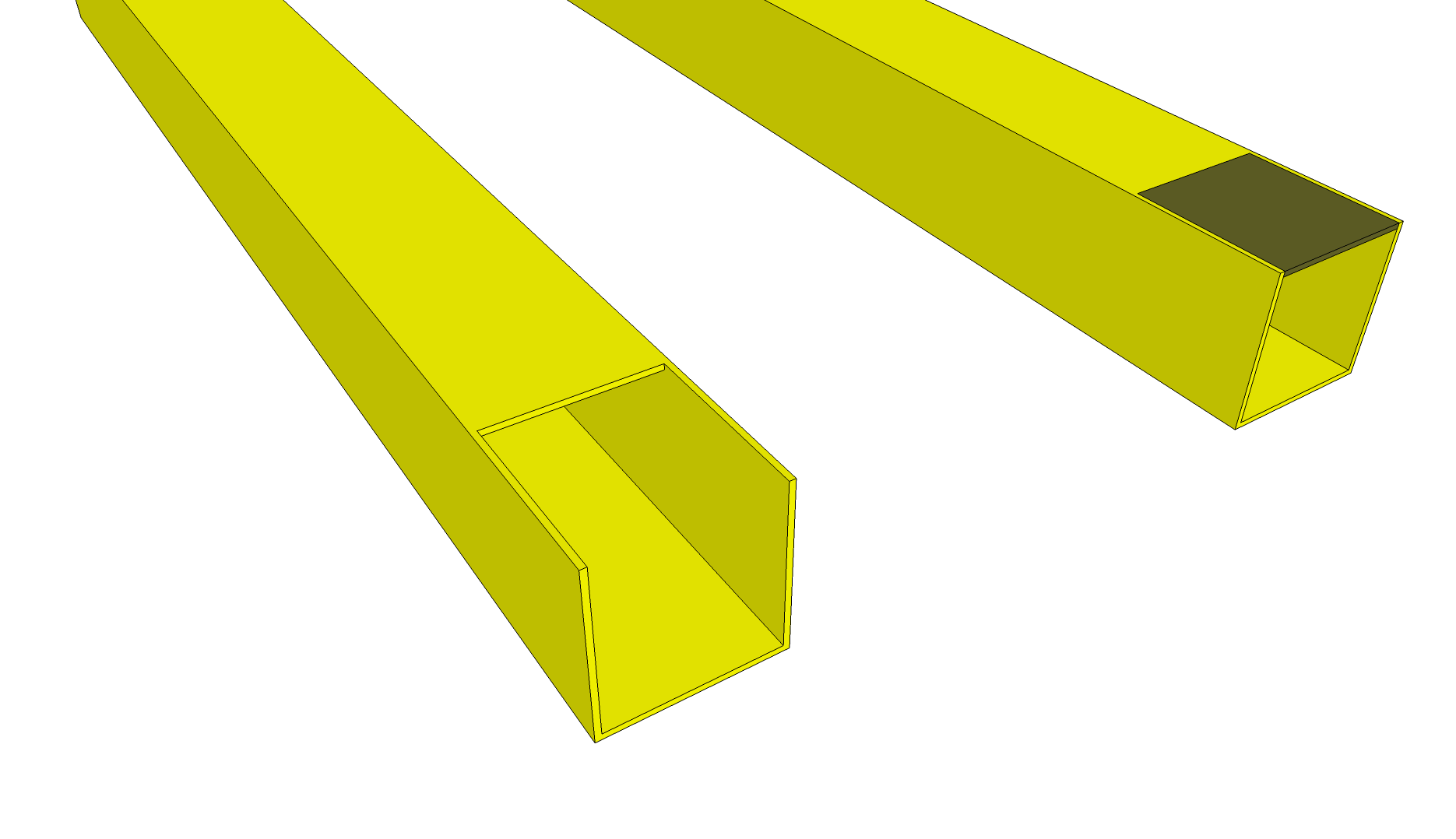

instead of making them 9", i made the rear top members 10". they stick out one inch, so i'll take the top off (below) to be able to fit wood supports for the rest of the platform.
list of members:
[qty x length (color)]
20 x 8" (red)
10 x 10" (yellow)
8 x 22" (green)
6 x 36" (blue)
2 x 44" (orange)
2 x 54" (brown)
instead of making them 9", i made the rear top members 10". they stick out one inch, so i'll take the top off (below) to be able to fit wood supports for the rest of the platform.
list of members:
[qty x length (color)]
20 x 8" (red)
10 x 10" (yellow)
8 x 22" (green)
6 x 36" (blue)
2 x 44" (orange)
2 x 54" (brown)
#63
Registered User
Join Date: Apr 2010
Location: Kingston, Ontario CANADA
Posts: 815
Likes: 0
Received 0 Likes
on
0 Posts
#64
Registered User
Join Date: Oct 2010
Location: hernando, florida
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
I love the ideas you're coming up with. human ingenuity at its best. i hopefully will be swapping my dying 20r from my 80 pickup for a 3.4 v6 soon. good luck on the camper living quarters build.
#65
a side note: u-bolts are out of stock, so i'm going to order them and do the aal's next weekend
#66
aahhh... the joy of rain. no progress for the next 2 days.
i found a site that sells grade 8 u-bolts (the link is at work, i'll get it later). 2 bolts, 4 washers, and 4 nuts for $20. not bad at all. and a whole bunch of sizes. so i'll probably try to use the existing hardware this weekend. if i can do that without breaking any bolts, i'll swap in new bolts later in the week. if i do break one, then they all will come off then and there, and i'll have to borrow one of the family's cars to get around for the week.
i found a site that sells grade 8 u-bolts (the link is at work, i'll get it later). 2 bolts, 4 washers, and 4 nuts for $20. not bad at all. and a whole bunch of sizes. so i'll probably try to use the existing hardware this weekend. if i can do that without breaking any bolts, i'll swap in new bolts later in the week. if i do break one, then they all will come off then and there, and i'll have to borrow one of the family's cars to get around for the week.
#67
here is the link for the u-bolts
part number: 361-368
they are $14 for a pair and hardware, and $11 shipping for 2 sets
part number: 361-368
they are $14 for a pair and hardware, and $11 shipping for 2 sets
Last edited by irab88; 11-04-2010 at 09:03 AM.
#70
add-a-leafs are on
and here are the pics:
before, jacked up
http://www.flickr.com/photos/ianrab/5151688902/
new u-bolts. all this for $40 vs a single bolt from the dealer for the same price
http://www.flickr.com/photos/ianrab/5151688898/
http://www.flickr.com/photos/ianrab/5151673280/
the aal's and bolts
http://www.flickr.com/photos/ianrab/5151688892/
wheel off
http://www.flickr.com/photos/ianrab/5151688882/
http://www.flickr.com/photos/ianrab/5151673276/
http://www.flickr.com/photos/ianrab/5151673274/
http://www.flickr.com/photos/ianrab/5151673270/
http://www.flickr.com/photos/ianrab/5151673266/
http://www.flickr.com/photos/ianrab/5151673264/
and for today's pictures
http://www.flickr.com/photos/ianrab/5151056637/
http://www.flickr.com/photos/ianrab/5151056631/
mmmm...rust. enough flaked off to go from 14mm to 13mm
http://www.flickr.com/photos/ianrab/5151056625/
http://www.flickr.com/photos/ianrab/5151056623/
http://www.flickr.com/photos/ianrab/5151056621/
http://www.flickr.com/photos/ianrab/5151056615/
http://www.flickr.com/photos/ianrab/5151039031/
done
http://www.flickr.com/photos/ianrab/5151039025/
http://www.flickr.com/photos/ianrab/5151039021/
and of course...
http://www.flickr.com/photos/ianrab/5151039015/
http://www.flickr.com/photos/ianrab/5151039013/
http://www.flickr.com/photos/ianrab/5151039003/
it rides sooooo nice. best $100 ever (to date...)
and here are the pics:
before, jacked up
http://www.flickr.com/photos/ianrab/5151688902/
new u-bolts. all this for $40 vs a single bolt from the dealer for the same price
http://www.flickr.com/photos/ianrab/5151688898/
http://www.flickr.com/photos/ianrab/5151673280/
the aal's and bolts
http://www.flickr.com/photos/ianrab/5151688892/
wheel off
http://www.flickr.com/photos/ianrab/5151688882/
http://www.flickr.com/photos/ianrab/5151673276/
http://www.flickr.com/photos/ianrab/5151673274/
http://www.flickr.com/photos/ianrab/5151673270/
http://www.flickr.com/photos/ianrab/5151673266/
http://www.flickr.com/photos/ianrab/5151673264/
and for today's pictures
http://www.flickr.com/photos/ianrab/5151056637/
http://www.flickr.com/photos/ianrab/5151056631/
mmmm...rust. enough flaked off to go from 14mm to 13mm
http://www.flickr.com/photos/ianrab/5151056625/
http://www.flickr.com/photos/ianrab/5151056623/
http://www.flickr.com/photos/ianrab/5151056621/
http://www.flickr.com/photos/ianrab/5151056615/
http://www.flickr.com/photos/ianrab/5151039031/
done
http://www.flickr.com/photos/ianrab/5151039025/
http://www.flickr.com/photos/ianrab/5151039021/
and of course...
http://www.flickr.com/photos/ianrab/5151039015/
http://www.flickr.com/photos/ianrab/5151039013/
http://www.flickr.com/photos/ianrab/5151039003/
it rides sooooo nice. best $100 ever (to date...)
#75
Registered User
It is a Yakima rack system the q towers I think it is called and the cargo thing is called the "Load Warrior." It is also from Yakima.
#79
Registered User
iTrader: (5)
Great work, Ian, ..
Happy you're liking the ride. How is the 5 turns of the t-bars working out? Also liked the insulation work! Nice rig, Ian.... It's looking really nice. I have to read back as to what you're doing with the rear cargo area... interesting, from what I could see.
HEY, it's JDS!^^^ Another rig I like! lol.
Happy you're liking the ride. How is the 5 turns of the t-bars working out? Also liked the insulation work! Nice rig, Ian.... It's looking really nice. I have to read back as to what you're doing with the rear cargo area... interesting, from what I could see.
HEY, it's JDS!^^^ Another rig I like! lol.
#80
speaking of "4"...
happy 4th page!!!
