Need verification on front spring hanger position and shackle angle please
#1
Registered User
Thread Starter
Need verification on front spring hanger position and shackle angle please
1986 Toyota Pickup 4x4 with Trail Gear 5" HD springs and 5" shackles. Spaced the front hanger 3/4" forward from the middle cross member. It looks weird to me. Just want to make sure it's right. It's tacked in right now. I'm going to try to run 37's eventually. Also, my shackle angle on the passenger side doesn't look that bad if 10 degrees will settle to 20, but the driver's side is near vertical. I'm putting an OM617 Diesel engine in the truck in the next month or two, so I'm expecting that to really squat the front end down. I just want to know if my angles are on the right track.
Only other question is, does anyone know about moving the front hanger forward and what it does to the steering box? Do I need to move the steering box forward, too? Do I have to do it? When the diesel goes in, I'm upgrading to a power steering box, so moving it forward then won't bother me, but I'd like to leave mine where it's at right now.
Thanks guys!
passenger
![Name: DSCI0016.jpg
Views: 4523
Size: 73.9 KB](https://www.yotatech.com/forums/attachments/f152/190894d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0016.jpg)
driver
![Name: DSCI0015.jpg
Views: 2822
Size: 68.1 KB](https://www.yotatech.com/forums/attachments/f152/190895d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0015.jpg)
front hanger
![Name: DSCI0007.jpg
Views: 4005
Size: 74.4 KB](https://www.yotatech.com/forums/attachments/f152/190896d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0007.jpg)
![Name: DSCI00032.jpg
Views: 3463
Size: 127.1 KB](https://www.yotatech.com/forums/attachments/f152/190897d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci00032.jpg)
Only other question is, does anyone know about moving the front hanger forward and what it does to the steering box? Do I need to move the steering box forward, too? Do I have to do it? When the diesel goes in, I'm upgrading to a power steering box, so moving it forward then won't bother me, but I'd like to leave mine where it's at right now.
Thanks guys!
passenger
![Name: DSCI0016.jpg
Views: 4523
Size: 73.9 KB](https://www.yotatech.com/forums/attachments/f152/190894d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0016.jpg)
driver
![Name: DSCI0015.jpg
Views: 2822
Size: 68.1 KB](https://www.yotatech.com/forums/attachments/f152/190895d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0015.jpg)
front hanger
![Name: DSCI0007.jpg
Views: 4005
Size: 74.4 KB](https://www.yotatech.com/forums/attachments/f152/190896d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci0007.jpg)
![Name: DSCI00032.jpg
Views: 3463
Size: 127.1 KB](https://www.yotatech.com/forums/attachments/f152/190897d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci00032.jpg)

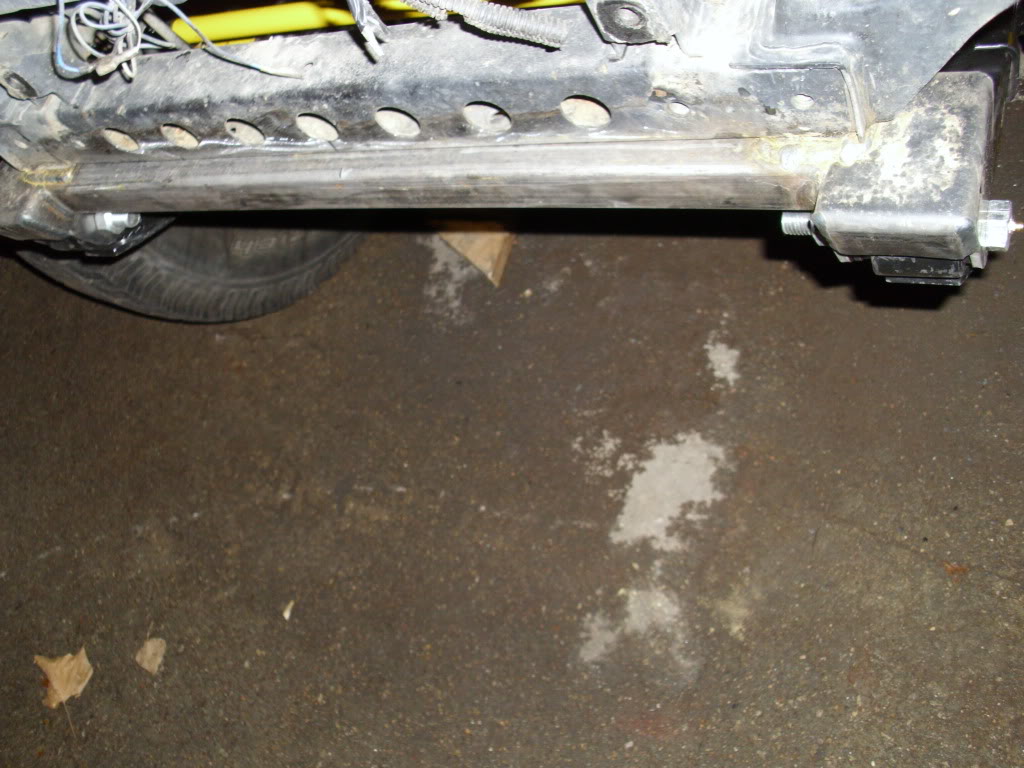

![Name: DSCI00022.jpg
Views: 2285
Size: 118.1 KB](https://www.yotatech.com/forums/attachments/f152/190898d1501885158-need-verification-front-spring-hanger-position-shackle-angle-please-dsci00022.jpg)
Last edited by pyrojoe22; 01-17-2012 at 03:54 PM.
#4
Registered User
personally, its a good rule to always put the rear hangar tube as far forward in the body mount as possible. Always a lot more adjustability with the front hangar.
youre fine just gonna ride a lil stiff.
youre fine just gonna ride a lil stiff.
#6
Registered User
Thread Starter
Drew- I aired the tires up equally today. One was almost flat and I hadn't noticed it in the dark. The springs are at equal height. The perches are level with each other.
I really despise TG's instructions. Although they're better than AP's. It said to center the stencil in the body mount. I used to think you were supposed to slide it forward until I saw their picture. TG says center the hole. AP says slide it forward.
I really despise TG's instructions. Although they're better than AP's. It said to center the stencil in the body mount. I used to think you were supposed to slide it forward until I saw their picture. TG says center the hole. AP says slide it forward.
Last edited by pyrojoe22; 01-17-2012 at 03:55 PM.
#7
Registered User
yea their instructions are terrible, i threw em out lol
best to do your research first, and theres plenty of SAS's with TG springs on here to figure out how to best do yours :/
best to do your research first, and theres plenty of SAS's with TG springs on here to figure out how to best do yours :/
Trending Topics
#8
Registered User
Thread Starter
Ya there's only 6 pages on here. I think I've read through most of the swaps that pertain to my truck. Not a whole lot of 5" lifts going on though.
#9
Registered User
iTrader: (1)
Join Date: Jan 2012
Location: SLC, UT
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Interested in what you eyed up with on this. Im putting the 5in springs on this wknd and want to do it right the first time. The guys I've talked to at trail gear assured me to center the frame tube jig and mount the front hanger 3/4" forward. Anybody else saying different??? Its a 92 pu ext cab v6 with a tg front bumper and winch.
#10
Registered User
Thread Starter
Interested in what you eyed up with on this. Im putting the 5in springs on this wknd and want to do it right the first time. The guys I've talked to at trail gear assured me to center the frame tube jig and mount the front hanger 3/4" forward. Anybody else saying different??? Its a 92 pu ext cab v6 with a tg front bumper and winch.
#11
Registered User
iTrader: (1)
Join Date: Jan 2012
Location: SLC, UT
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
I will give them a call in the morning to pick their brains some more on it. I think im for sure moving the front hanger forward 3/4" but it's still up in the air on the rear mount I guess. Anybody else have any input on the 5 inch springs?
#13
Registered User
Join Date: Nov 2007
Location: Dillsburg, PA
Posts: 954
Likes: 0
Received 0 Likes
on
0 Posts
I can't really tell from the pictures, because they are all at the same anle from the driver side, but it looks like the driver side of the hanger is sticking out a little more than the passenger side.
#14
Registered User
iTrader: (1)
Join Date: Jan 2012
Location: SLC, UT
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Just in case anybody wants more info or verification on this I ended up mounting my front hanger 3/4" forward and moving my frame tubes as far forward as possible. The shackle angles turned out perfect so this is what I would recommend to anyone doing the 5" springs. I will be posting up a build thread as soon as I finish up in a few days. Took lots of pics throughout the process.
Thread
