Hey,

My park brake on my 86 4Runner was very weak so I tried to adjust it...I have drum brakes.
I used a scrrewdriver to access the little screw inside the drum, that sets the position of the brake pads. I turned the screw as long as I was not able to move the wheel anymore...the problem:
I can`t contract the brake pads, because the teeth of the little screws are totally destroyed. I used my phone to take a picture and the screw looks like a saw blade; this makes the screwdriver slip over the screw all the time.

Do you have any suggestions? I probably won`t be able to pull of the drum, because the brakes are pressing against it...In the worst case I`ll have to cut off the drum?

Hope zou can give me some ideas!



Your drum has two bolt holes in it that you can install a bolt and it will push against the axle and assist in getting the drum off. If I recall right the bolts are a 12mm head and need to be about 3/4 inch long.

If you are concerned with the brakes holding the drum on, what I have done is get a pea grinder and cut the pins that hold the drum shoes on, that will let the shoes collapse and take some of the pressure off of the drums. Be careful not to get carried away with the grinder on the back side of the back plate. You might could even chisel them off with a very narrow chisel against the pin.

I would just order a hard ware replacement kit which will have the star gear and all of the other springs, clips and such for the brake shoes.

On the drum you will see two bolt holes opposite of each other that you can use 12mm bolts to push against the flange to push off the drum. The two bolt holes will be located in between two of the bolt studs.

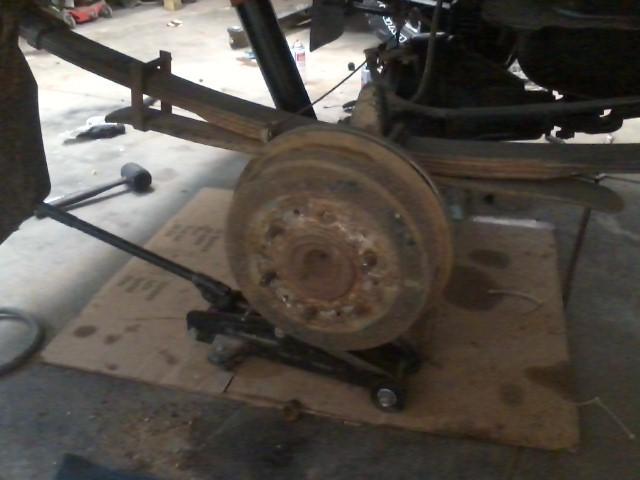

If you can see on this picture, at the 11 o'clock and 5 o'clock position, you can see the bolt holes to use a 12mm bolt. I don't know the thread size but it is a standard Toyota bolt. Once you get the drums off and get the pads closely adjusted, what I do is install the drums and while backing the truck up, I pump the hand brake and that gets the pads adjusted correctly for me. It can take several pumps to get the pads adjusted.



I believe it's M8x1.25. I would try to make sure it's grade 10.9. If it pulls the threads then you'll have to go to extremes like mentioned below.




I had trouble getting my drums off even after I loosened the star wheel/e-bake adjuster.
I soaked the wheel studs and damn near everywhere I could shoot PB Blaster for two days and didn't get anywhere. I even applied heat from a Burnz-O-Matic and used a sledge hammer and it wouldn't budge.

I got desperate and center punched the pins that hold the shoes in place then used a small drill bit and drilled mine out. Before I got all the way through the bit caught and turned the pins right out of the spring holders and I was able to pull them out. However I still couldn't get the drums off.

I then got the bright idea to remove the brake line and unbolt the wheel cylinder to let it all collapse. That didn't work either. Luckily I have an auto shop VERY close by my place that I limped it to. They beat on it with one hell of a big sledge and got the drums off. They cracked one of them doing so and neither of us noticed it. It's only when I was cleaning things up that I noticed it. The brake cleaner let the brake dust run inside of the cracks and it ended up looking like what you expect to see from a magnaflux treatment.
I don't blame them at all because they were STUCK in place by a lot of bad rust.

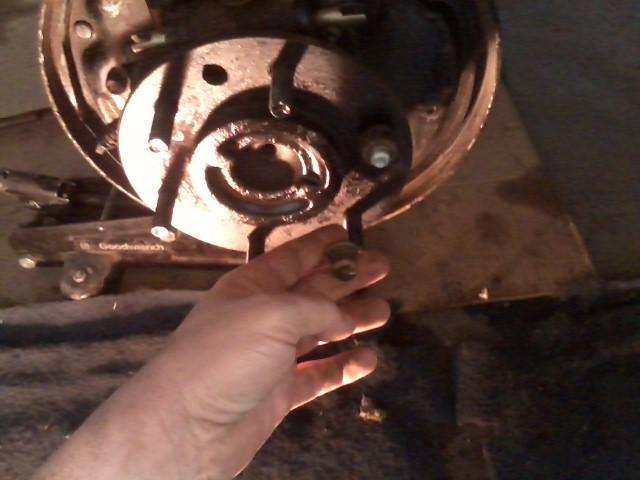

I was going to purchase this tool to try and get them off but figured it would be cheaper if I could pay a shop to just get the drums off. They ended up not charging me at all but I had to get a new drum anyhow so I might have broke even there.
Then again I might have purchased the tool and then broke my drum trying to get it off and be deeper in the $$$ hole, you never know.

Rotors and drums can brake even when using a tool.
(Not mine)






Just be sure to use a wire wheel to clean off the rust anywhere the drum makes metal to metal contact with the hub end of the axle. Apply some anti-seize to the contact areas before you bolt the drums back on. That way things won't rust up so bad and the next time it needs to come apart it will be easier.

.



That would be a handy tool to have and something I have not thought of. Another thing I have done is once I got the bolts in with a few good twist in to the drum, I took a wire cloth hanger and twisted each end of the wire to the bolts. I then took a sliding hammer and connect to the wire and tug on it with it.

Some times these hubs can be a bear to get off. Another thing I have done is to take a hand file and just go over the hub of the axle and the center of the drum just to help reduce the chance of it hanging on there.

About once a year or so I like to just pull the drums off just to keep them from being so difficult or having a chance to freeze on there.

My disc on the front were needing to be turned. To have them turned was going to be $20 a piece but I was able to buy new ones for $25 a piece. I am not sure what rear ones cost but some times getting new ones might be well worth cutting them off in worse case scenario.



That's being creative and worth a shot if you've got a slide hammer.



I thought about doing that but didn't want to take a chance on getting the drum off center any more than I have to. I reasoned that it could create balance/vibration problems. I know the wheel studs would help keep the drum centered but I think there's still a little wiggle room.


That is a VERY good idea, the end of winter would be a great time for it.
I also noticed one of my hubs had some type of fabric glued to it. I did my best to remove the rust while leaving that material in place.
I don't know if it was factory or what but that's the side where it wasn't that hard to remove the drum. It survived to be used another day.


.



Thanks for your answers guys!

The solution was as simple as it can be: I did not know that there is this lever on the adjuster star, that locks it in one direction.

I had to expand the adjuster even more, that took the pressure of the lever and I finally managed to contract the brake pads again.
The p-brake is still not very good, but I tried the screw on the lever under the car, where the two cables connect. I set it to the maximum, but the brake didnt get noticeably better...I better leave it like it is!
Thanks!
