Total Chaos Long Travel Install
Last week I started working on putting a total chaos long travel kit on my 93 pickup. Over the past semester I collected all the parts I needed, shocks a-arms and a few other odds and ends.
I decided to go with total chaos because they have such an excellent reputation. I bought FOA 10in coil overs because they're less expensive than Fox and King but ought to perform well for my needs.
I started out with this.

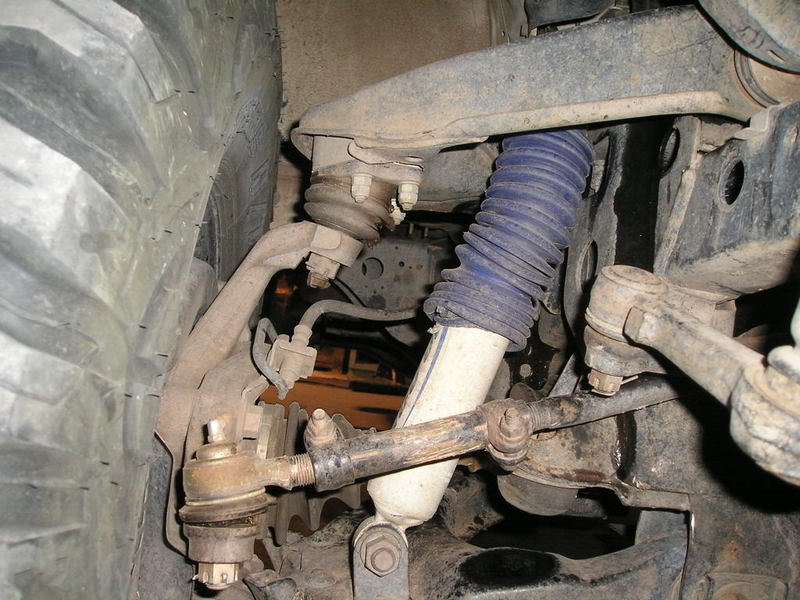

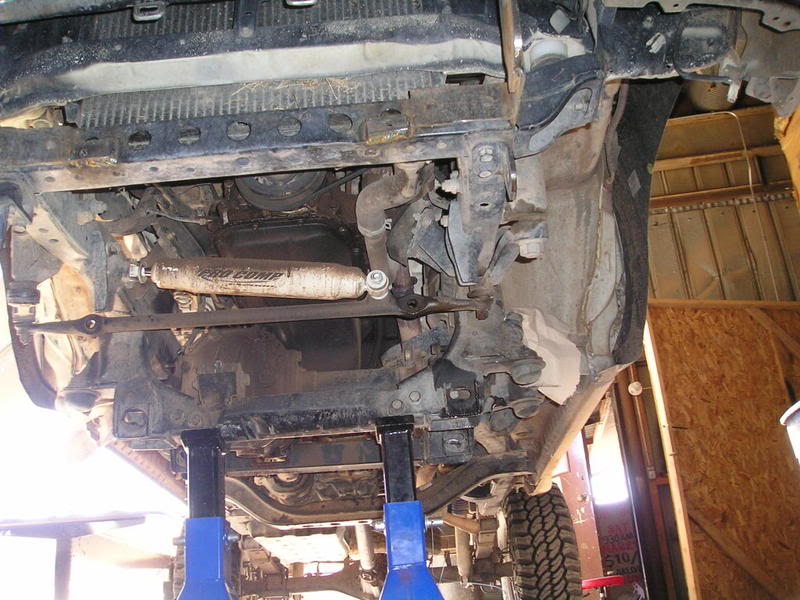

Ball joint spacers and ProComp ES9000 shocks
First step the tires off and hubs apart.

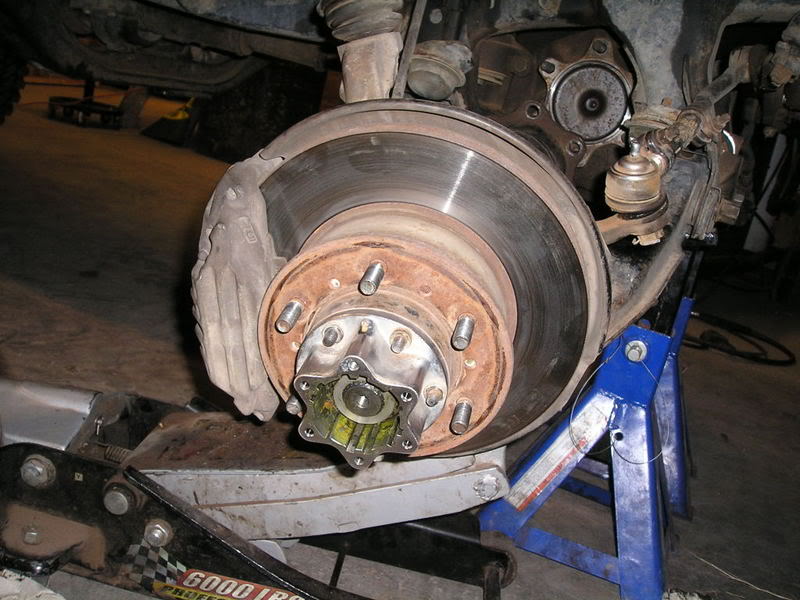

Pulled the knuckles off
No more LCA
After a lot of PB and a 2ft breaker bar I got the T Bars off.
No more UCA

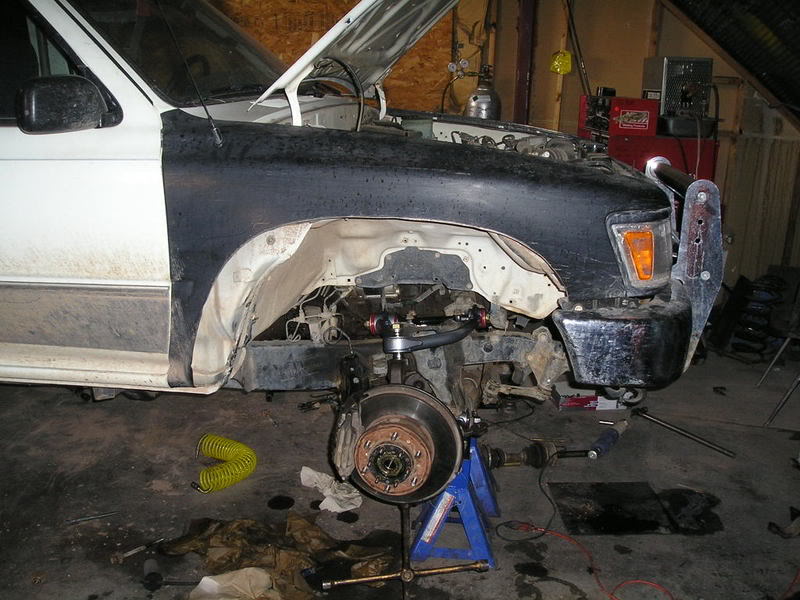

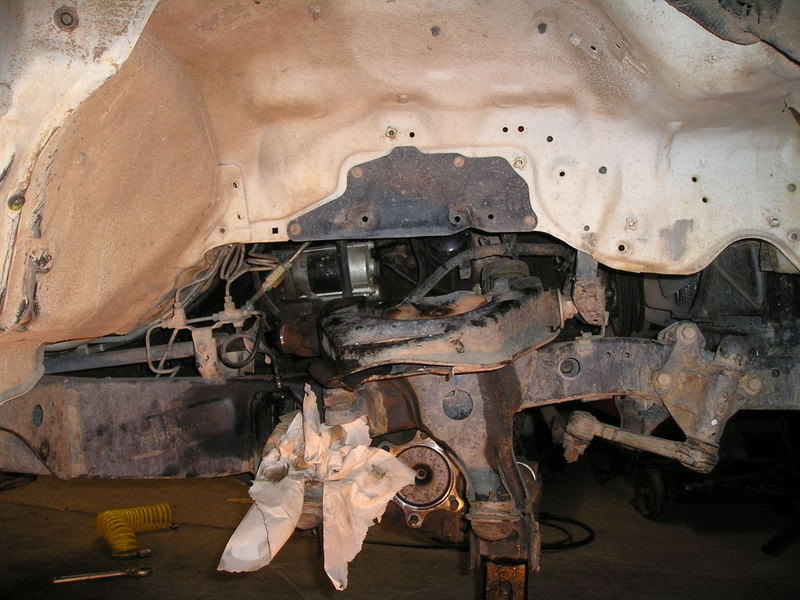

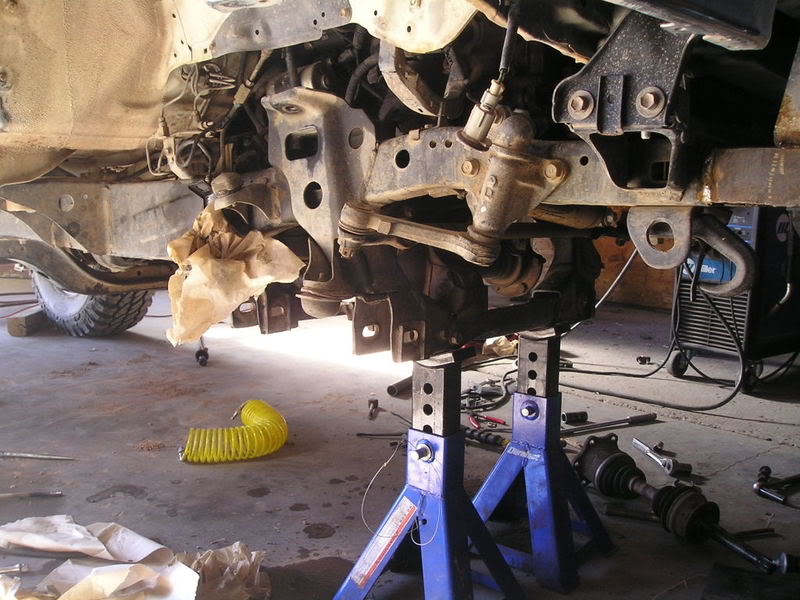

Stock suspension gone

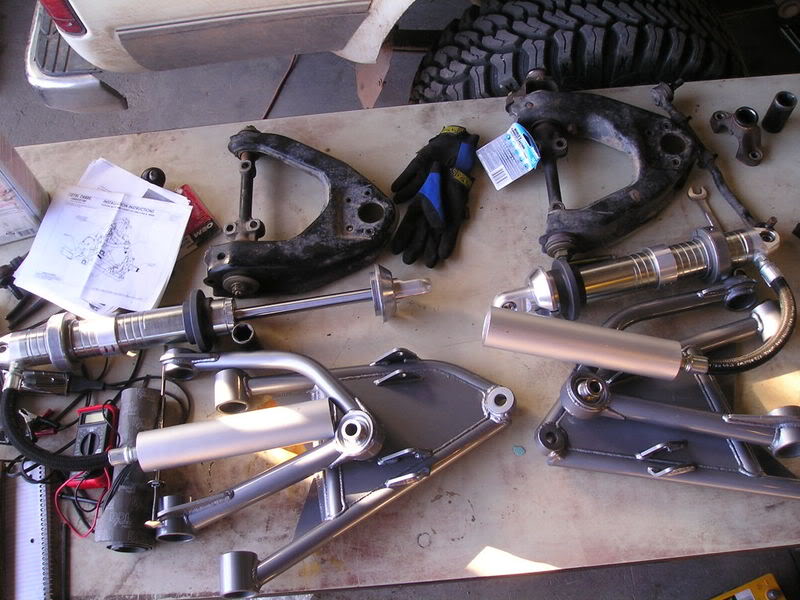

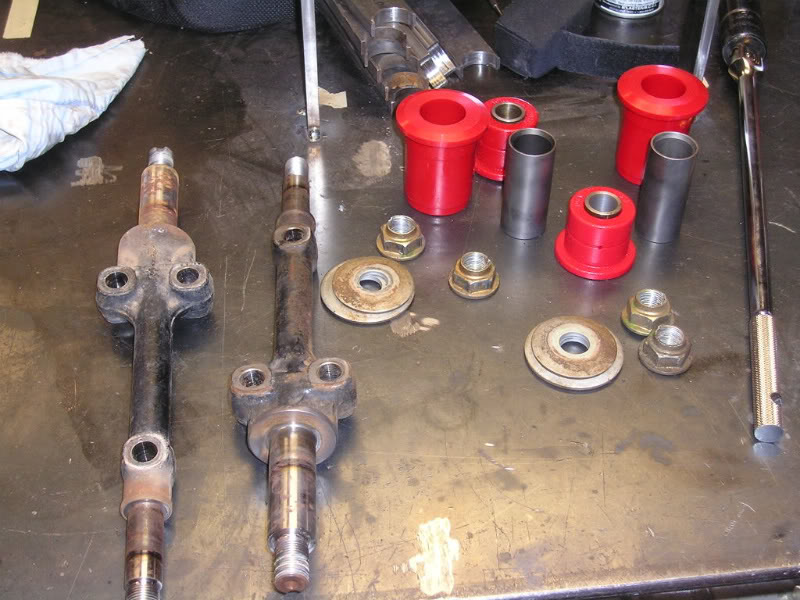

Collection of goodies
Getting those damn bolts off the UCA required a bit of leverage

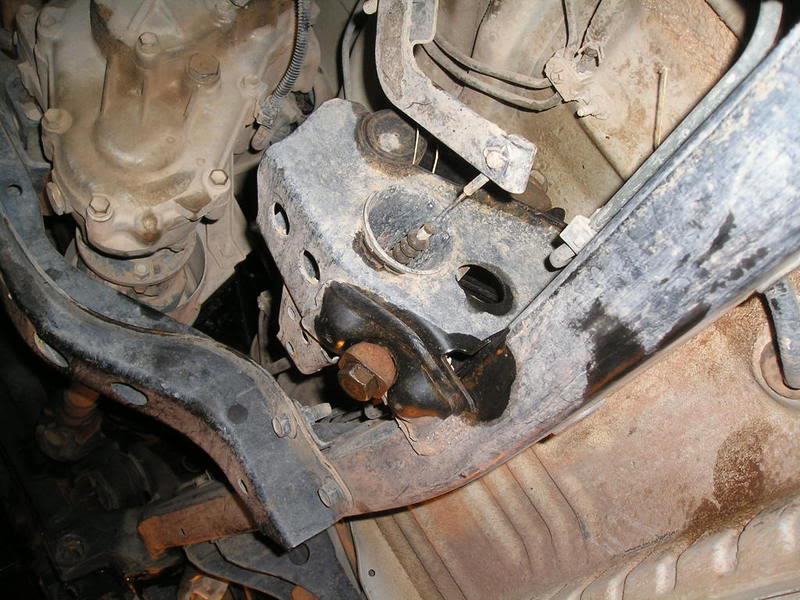

UCA mounts removed, all those new bushings look mighty pretty.

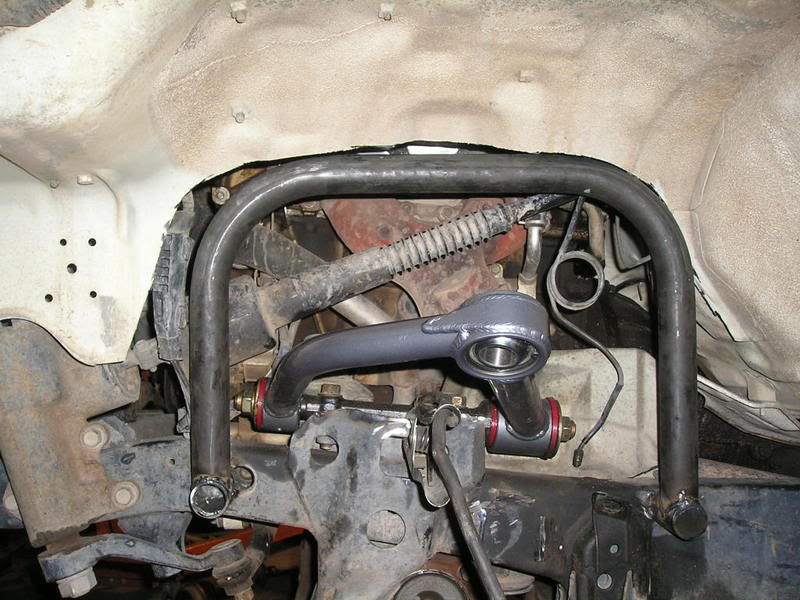

New UCA put together
LCA put together and mounted up
I then took saturday off and went to the track with some friends, there were some pretty awesome cars there.

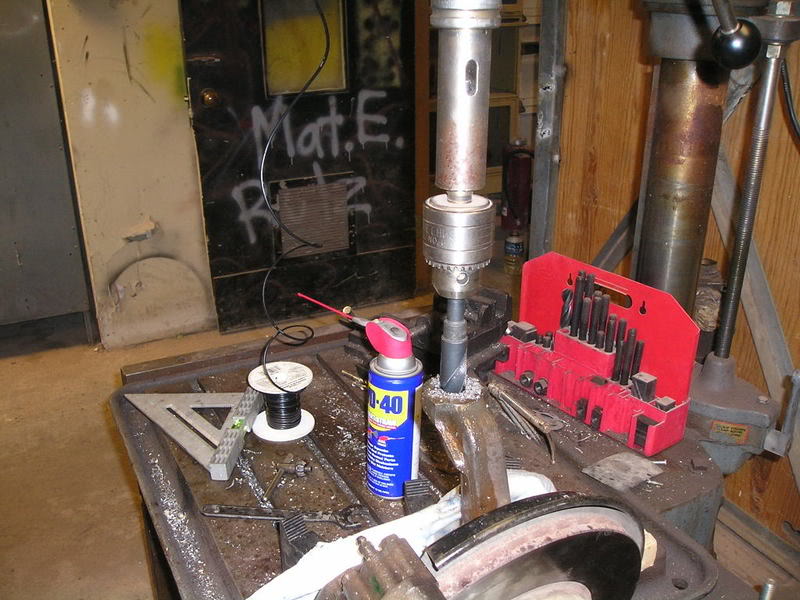

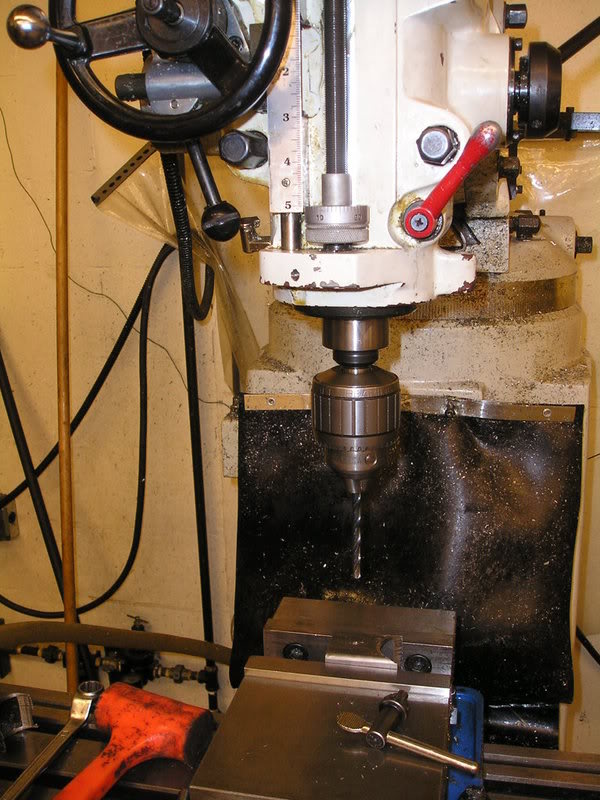

Got back to work on sunday drilled out the knuckles to a straight 3/4in
They look pretty sweet all mounted

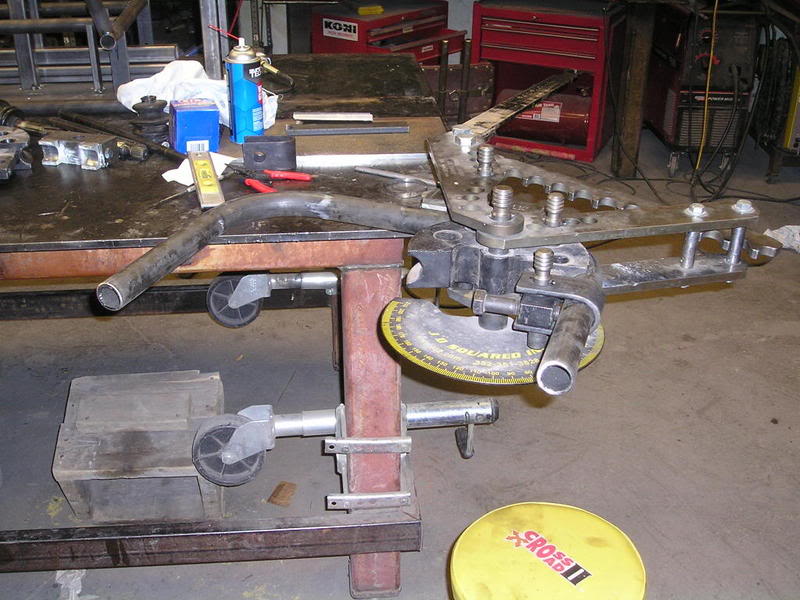

Bending tube for shock hoops

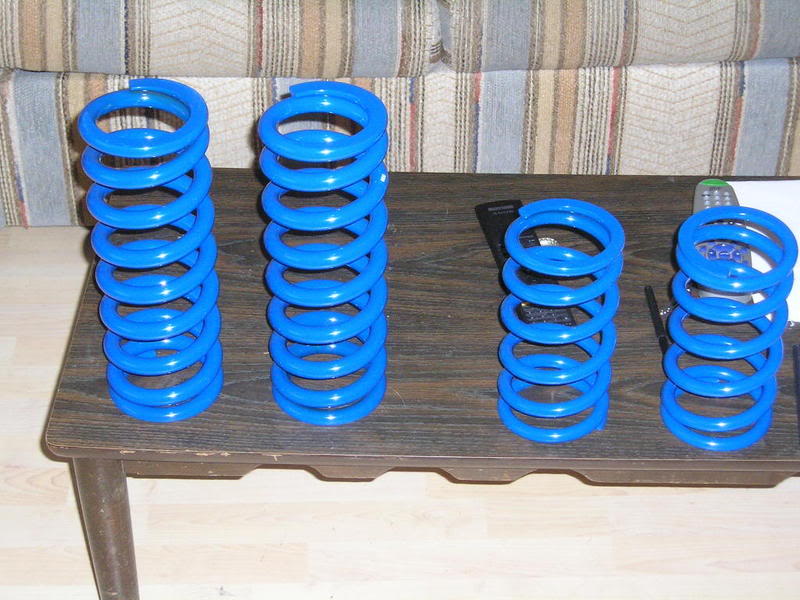

Springs finally showed up on monday
Notching the shock hoops

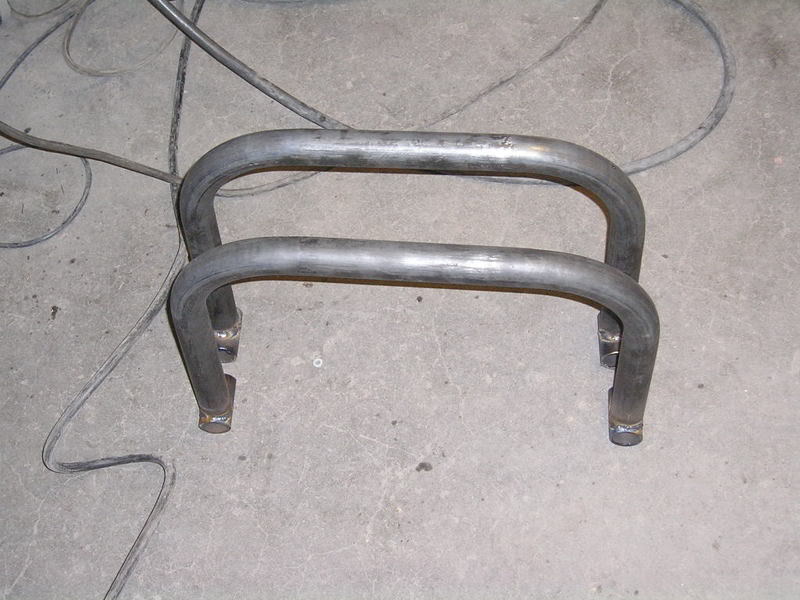

welded up
Tacked to the frame
Making Shock tabs

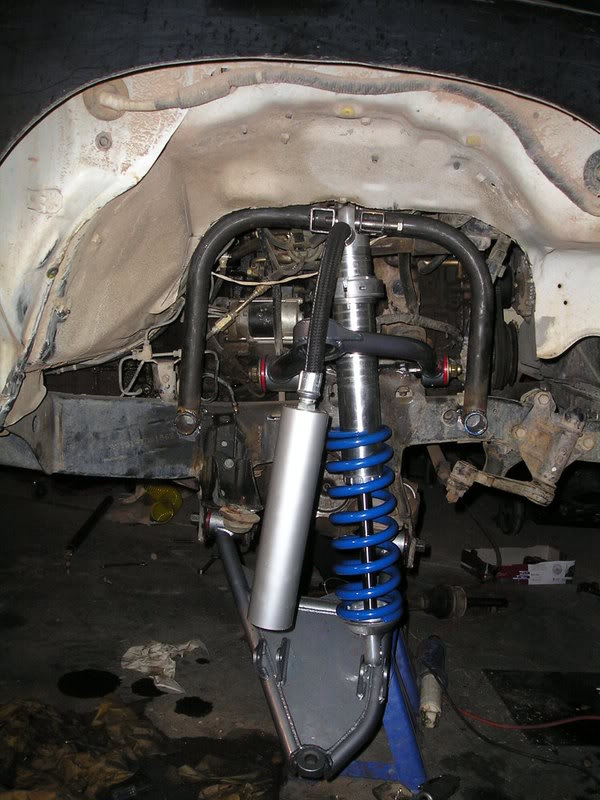

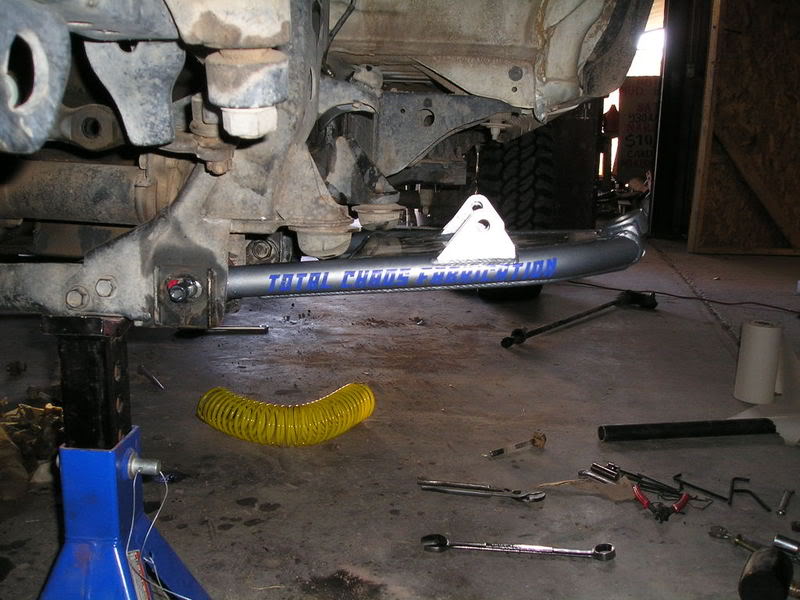

Whole thing tacked together and mocked up

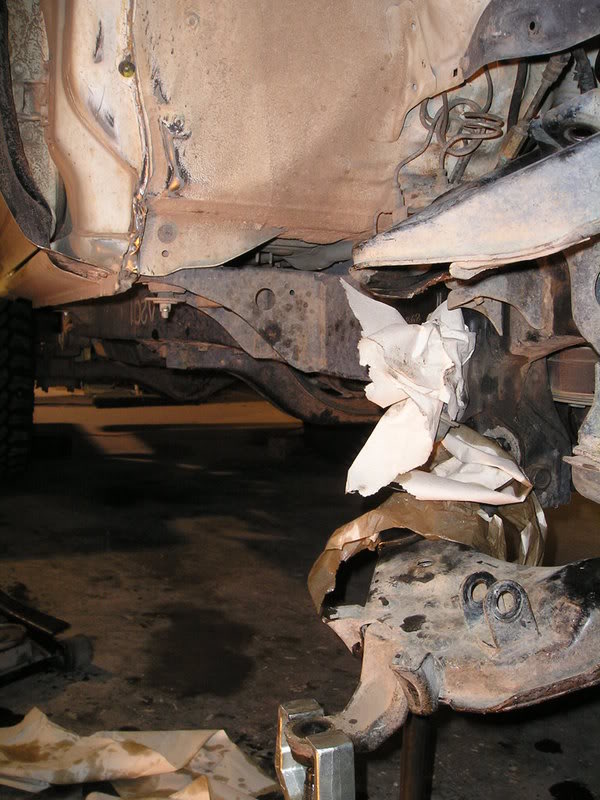

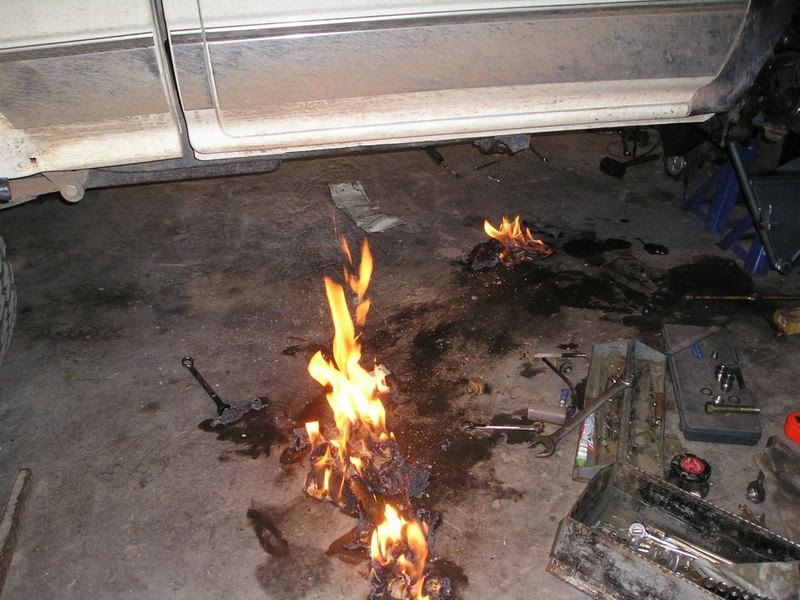

I discovered that welding near brake fluid soaked rags isn't really a good idea.

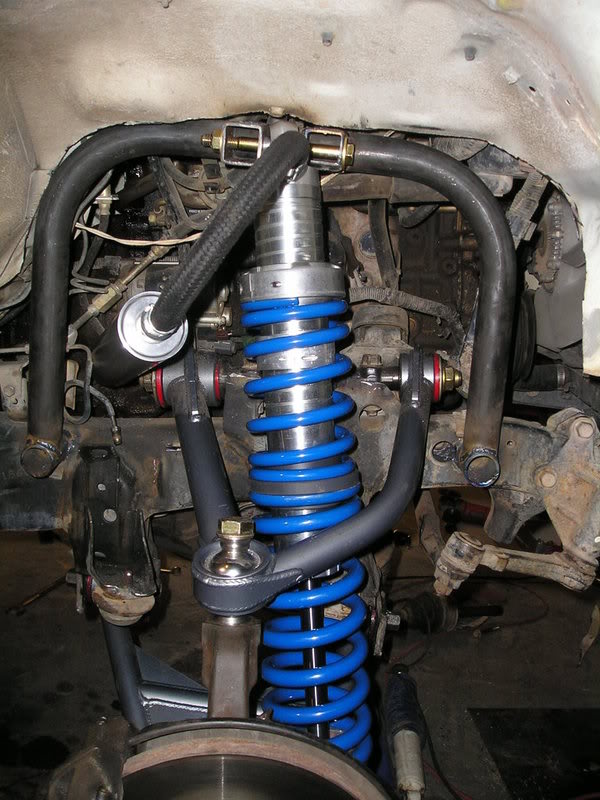

Welded up and ready to roll

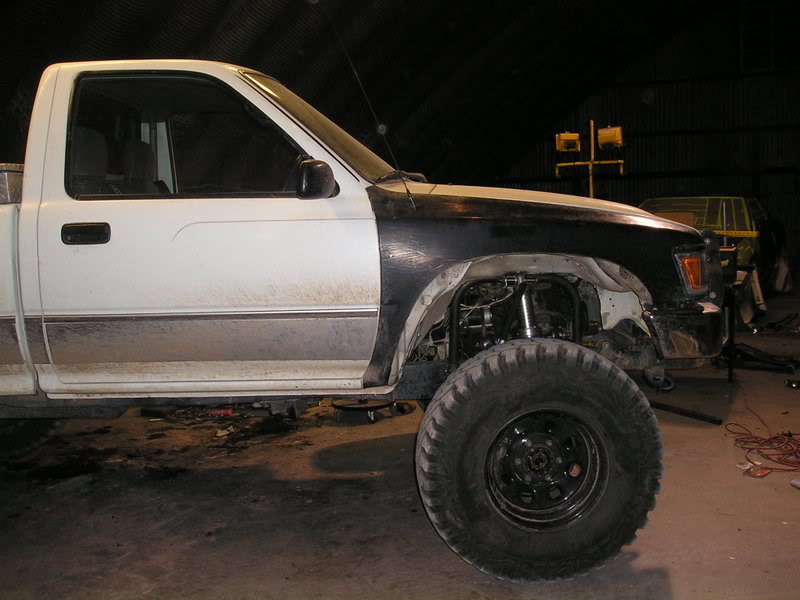

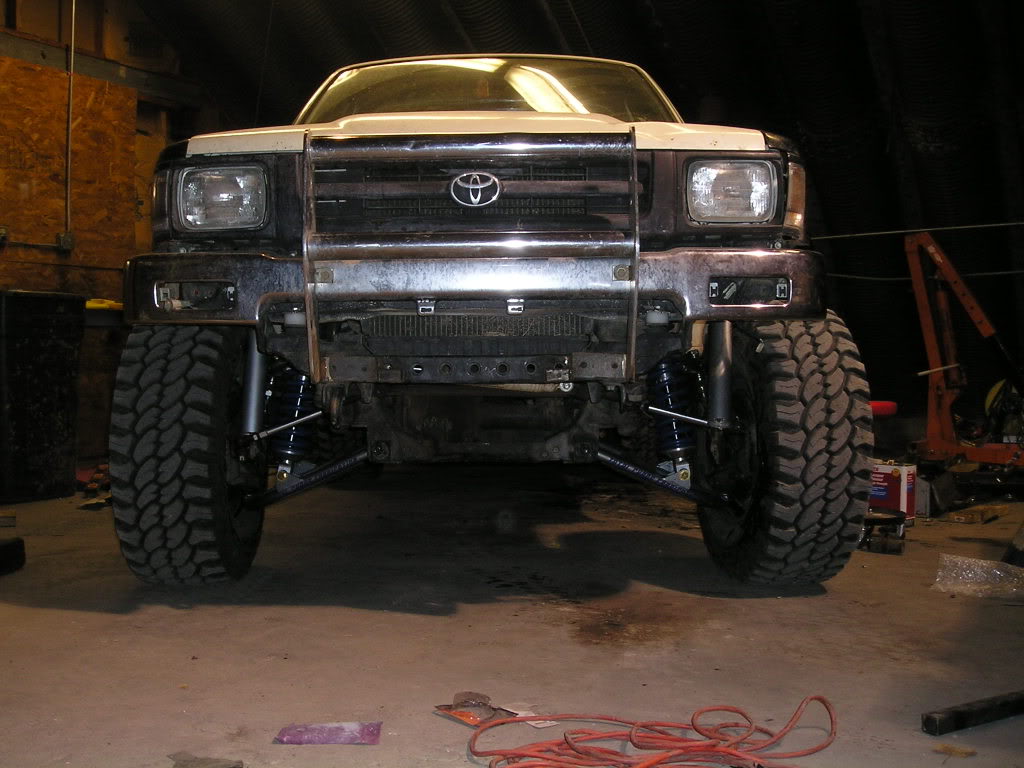

ROLLING!!!
CV shafts are still on order, should be here sometime at the end of next week. So then I'll have to weld on the new droop stops and take it for a real test drive.
I decided to go with total chaos because they have such an excellent reputation. I bought FOA 10in coil overs because they're less expensive than Fox and King but ought to perform well for my needs.
I started out with this.
Ball joint spacers and ProComp ES9000 shocks
First step the tires off and hubs apart.
Pulled the knuckles off
No more LCA
After a lot of PB and a 2ft breaker bar I got the T Bars off.
No more UCA
Stock suspension gone
Collection of goodies
Getting those damn bolts off the UCA required a bit of leverage
UCA mounts removed, all those new bushings look mighty pretty.
New UCA put together
LCA put together and mounted up
I then took saturday off and went to the track with some friends, there were some pretty awesome cars there.
Got back to work on sunday drilled out the knuckles to a straight 3/4in
They look pretty sweet all mounted
Bending tube for shock hoops
Springs finally showed up on monday
Notching the shock hoops
welded up
Tacked to the frame
Making Shock tabs
Whole thing tacked together and mocked up
I discovered that welding near brake fluid soaked rags isn't really a good idea.
Welded up and ready to roll
ROLLING!!!
CV shafts are still on order, should be here sometime at the end of next week. So then I'll have to weld on the new droop stops and take it for a real test drive.
#4
Registered User
Join Date: Mar 2008
Location: Temecula Valley, CA
Posts: 12,723
Likes: 0
Received 5 Likes
on
5 Posts
agreed, looks good....
... but you should've said at least "Uniball" somewhere in your subject line since the ball-joint kit is different than the uniball (which appears to be the kit you installed)... and you actually appear to be the Caddy Gen2 which looses 4wd and turns the truck into 'pre-runner' status... or am I missing something?
... but you should've said at least "Uniball" somewhere in your subject line since the ball-joint kit is different than the uniball (which appears to be the kit you installed)... and you actually appear to be the Caddy Gen2 which looses 4wd and turns the truck into 'pre-runner' status... or am I missing something?
#7
Contributing Member
agreed, looks good....
... but you should've said at least "Uniball" somewhere in your subject line since the ball-joint kit is different than the uniball (which appears to be the kit you installed)... and you actually appear to be the Caddy Gen2 which looses 4wd and turns the truck into 'pre-runner' status... or am I missing something?
... but you should've said at least "Uniball" somewhere in your subject line since the ball-joint kit is different than the uniball (which appears to be the kit you installed)... and you actually appear to be the Caddy Gen2 which looses 4wd and turns the truck into 'pre-runner' status... or am I missing something?
I think you missed something
Trending Topics
#15
Can you use stock droop bump stops with the TC kit or do you have to have new ones welded in? Just curious since I'm planning on throwing a TC kit on my 4runner one day...
Looks good though. What's your plan for the rear?
Looks good though. What's your plan for the rear?
#16
Registered User
Thread Starter
Join Date: Apr 2008
Location: Peoria, IL
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
If you want to keep 4wd you'll need to weld on the TC droop stops. The bump stops remain stock.
As for the rear it's gonna stay the same for now, I've got skyjacker springs and 5.5in shackles right now so it's not to bad. When I can afford it I plan on putting Deavers, 12in shackles and an axle over conversion in the rear maybe with some 16in travel shocks.
As for the rear it's gonna stay the same for now, I've got skyjacker springs and 5.5in shackles right now so it's not to bad. When I can afford it I plan on putting Deavers, 12in shackles and an axle over conversion in the rear maybe with some 16in travel shocks.
#18
Registered User
Thread Starter
Join Date: Apr 2008
Location: Peoria, IL
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
Axle over, putting the axle on top of the springs eliminates axle wrap completely which is good for handling. I may not do this though because of the decrease in ground clearance
I finally got the CVs in and the whole thing put together and ready to go. Went to Gordy's hill this afternoon just for an hour or so to give the new setup a shakedown. So here's the full report on the Total Chaos gen 2 caddy kit with 10in FOA coil over shocks and suspension spring specialists blue coil springs
The ride quality on the street is about the same stock, maybe a little more body roll, but it's negligible, I'd taken the sway bar off my stock suspension ages ago anyway so the roll actually is a little less now. Even so the stability is great, the extra width really keeps the truck planted.
Offroad the difference is staggering. I can take most small obstacles at twice (at least) the speed I could with the stock setup. The truck just soaks up the bumps with no problems at all.
I was actually surprised how well this suspension setup flexes, I decided to go the long travel route mostly because of the high speed benefits but I do like to do a bit of rock crawling and this suspension does really well.
I don't have any pictures of the high speed stuff (I'm gonna have to enlist a friend or two to get some pics). But here's a few poser shots from today.

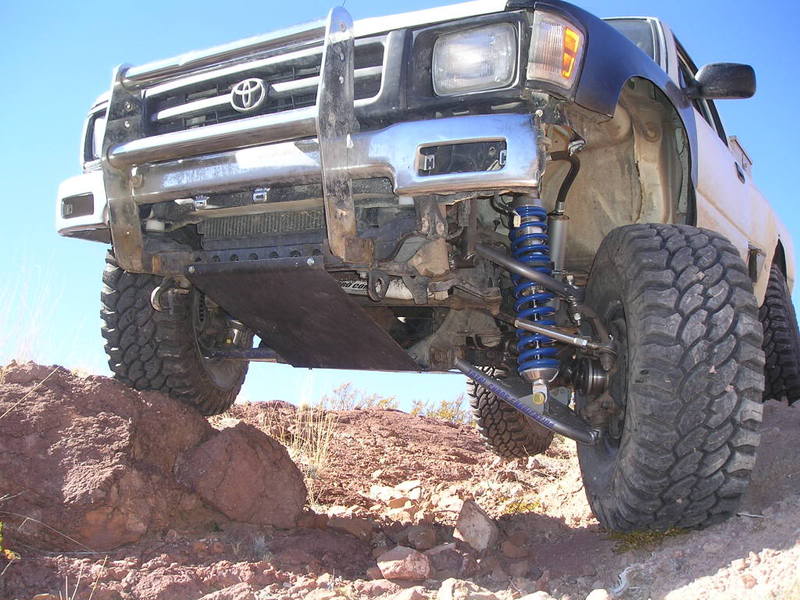

The front end is really wide now, as expected
Can't really tell from the picture but this was a bit of a hairy moment, I nearly rolled down the hill there.

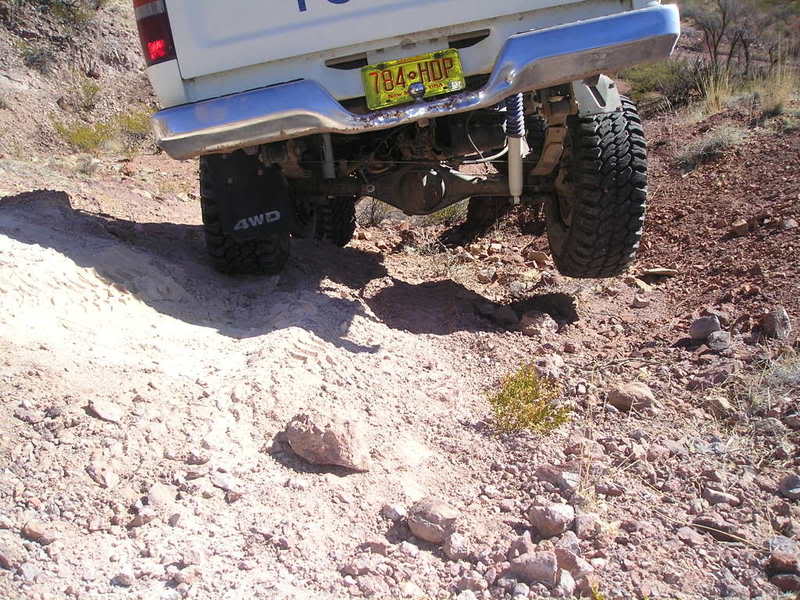

I actually lifted a back tire, I probably would have been in a bad way without my rear aussie.
