Spark but no fuel
Sold Wifey's '15 F150 today and she doesn't drive stick, so she gets my '12F350 for a bit and I get the old Yota.
Yota has been sitting since '12 and gets fired up once in a blue moon. Last time was about 4mo ago. Fired right up every time, no issues.
Today I put a battery in it and cranky cranky nice nice, but no fire.
Diagnostic time...
I have spark, but no fuel, all fuses are good in both boxes (under hood and driver's kick panel.)
Put a timing light on the coil wire and it's blinky just like it should, tested each wire and each fires, so I'm pretty darn sure I have good spark.
Didn't have anything super flammable like ether so that test hasn't been done yet, but pretty sure when I do it'll fire.
When I open the banjo bolt to the intake's injector it's dry as a bone. Cranky cranky and no fuel.
I checked the wires to the tank to the best of my ability and it doesn't look like anything has chewed it.
Can't find my service manual, haven't seen it since I moved 7yrs ago so there's no telling where it went.
My first step will be to test the fuel pump manually by triggering it at the odb port. Can anyone post a pic of the diagram and which ports to jumper to fire the fuel pump?
Any other suggestions are most welcome too.
Thanks in advance.
Pic of the little beastie for your enjoyment.
Yota has been sitting since '12 and gets fired up once in a blue moon. Last time was about 4mo ago. Fired right up every time, no issues.
Today I put a battery in it and cranky cranky nice nice, but no fire.
Diagnostic time...
I have spark, but no fuel, all fuses are good in both boxes (under hood and driver's kick panel.)
Put a timing light on the coil wire and it's blinky just like it should, tested each wire and each fires, so I'm pretty darn sure I have good spark.
Didn't have anything super flammable like ether so that test hasn't been done yet, but pretty sure when I do it'll fire.
When I open the banjo bolt to the intake's injector it's dry as a bone. Cranky cranky and no fuel.
I checked the wires to the tank to the best of my ability and it doesn't look like anything has chewed it.
Can't find my service manual, haven't seen it since I moved 7yrs ago so there's no telling where it went.
My first step will be to test the fuel pump manually by triggering it at the odb port. Can anyone post a pic of the diagram and which ports to jumper to fire the fuel pump?
Any other suggestions are most welcome too.
Thanks in advance.
Pic of the little beastie for your enjoyment.
Last edited by MonsterMaxx; 12-22-2016 at 01:44 PM.
#2
Super Moderator
Staff
iTrader: (1)
Join Date: Aug 2008
Location: Anderson Missouri
Posts: 11,788
Likes: 0
Received 25 Likes
on
22 Posts
Fuel that old has probably started getting solid particles in it and is clogging things up is my guess. Todays fuel breaks down quick compared to the old days.

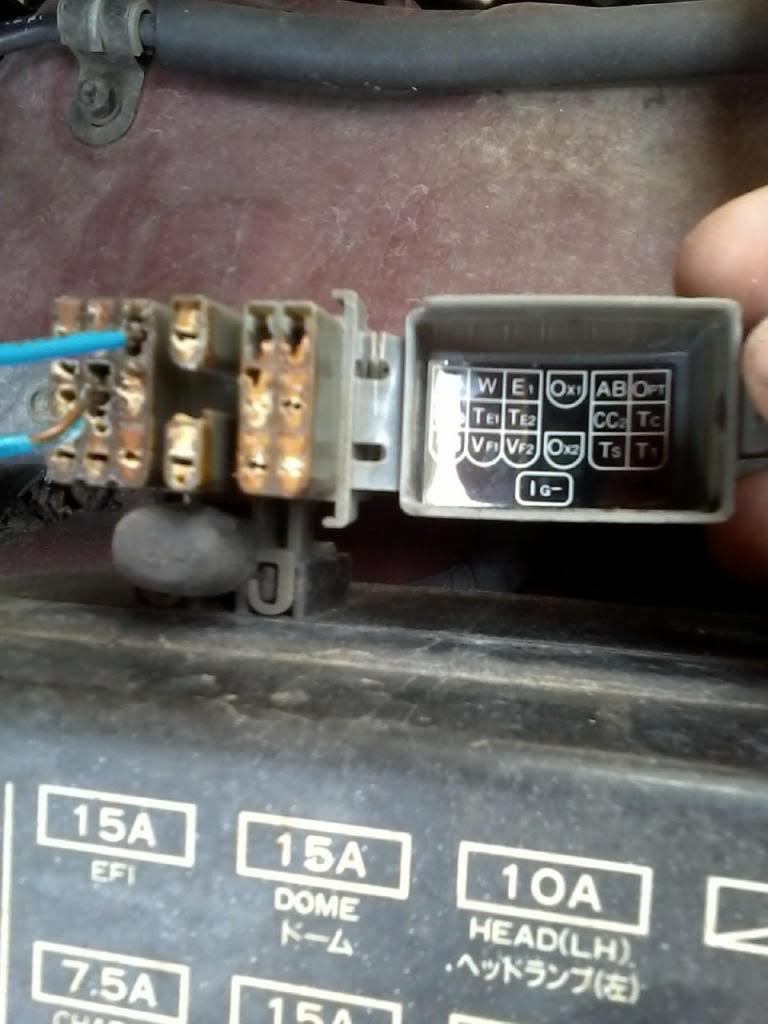

How to get Check Engine Codes. I just put this up for others. Applies to 87 and up. 86 and older is the bottom picture. TE1/E1
The Diagnostic port for the 85-86 is on the Drivers side inner fender and is nothing the same as the 87 and up. Here is T1 and E1 jumped. The codes and engine flashes are the same as the rest of the trucks on the dash.
Codes...http://4crawler.com/4x4/CheapTricks/...es/index.shtml
http://www.youtube.com/watch?v=9qEQM...ature=youtu.be
Here is how you do a Fuel Pump Bypass on the 85/86.

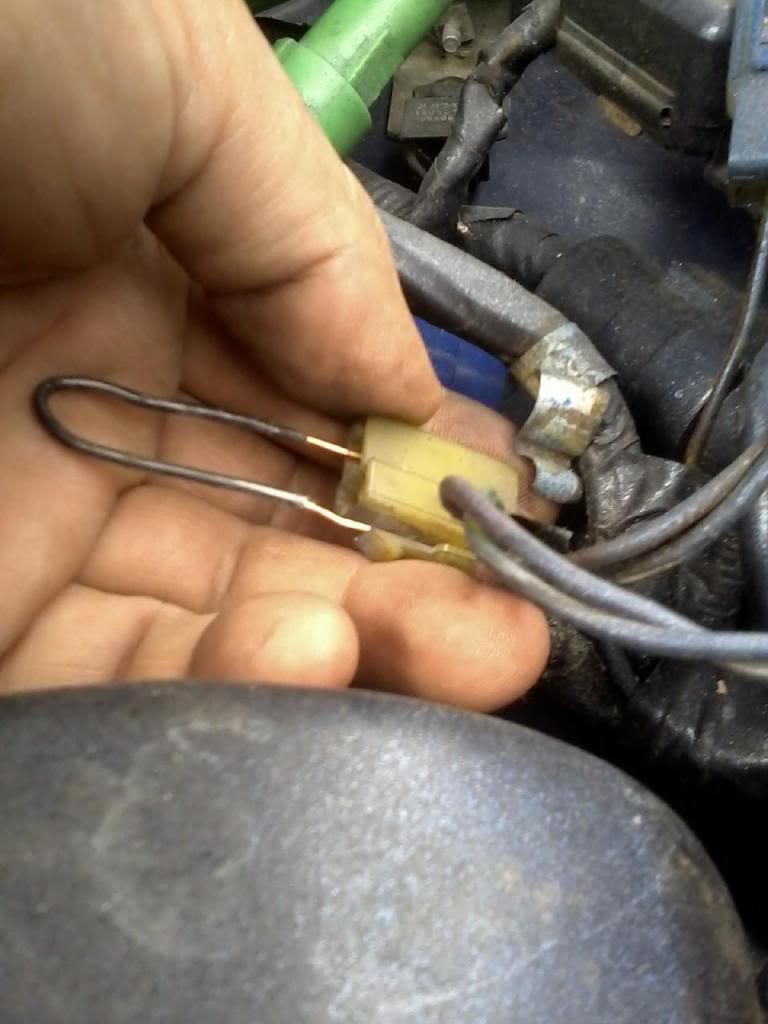

Jumper wire the Yellow Plug on Drivers side. ( Jumper wire should be in both contacts for testing, I just didnt have it in for picture purposes and mostly a referece for me at a later time.)

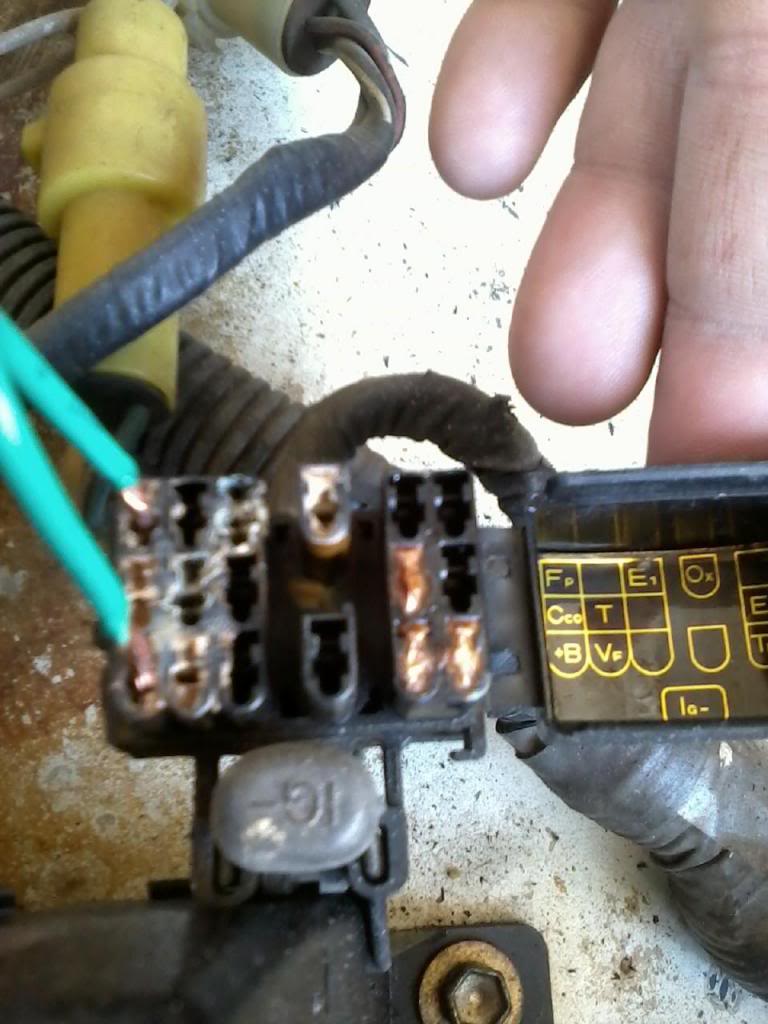

Fp +B Fuel Pump Test for 87 and newer. Use a paper clip for better results.
