New ride......confusing abnormalities
Bear with me here. I am not new to 4runners, and definitely not new to the toyota world. Just bought a 93 runner V6. Never owned the V6 before, nor have I owned a body-lifted vehicle before (this one has 3") I was just in the process of tearing it down and cleaning up some scary wiring and just generally checking things over to see what the heck I bought on a whim, when I came across a few things out of the ordinary...or I've never seen them before so I'm hoping someone here can explain them to me.
Please note I have only driven the truck about 300kms on the highway from where I bought it, nothing seemed awry and everything ran and functioned as it should...still does.

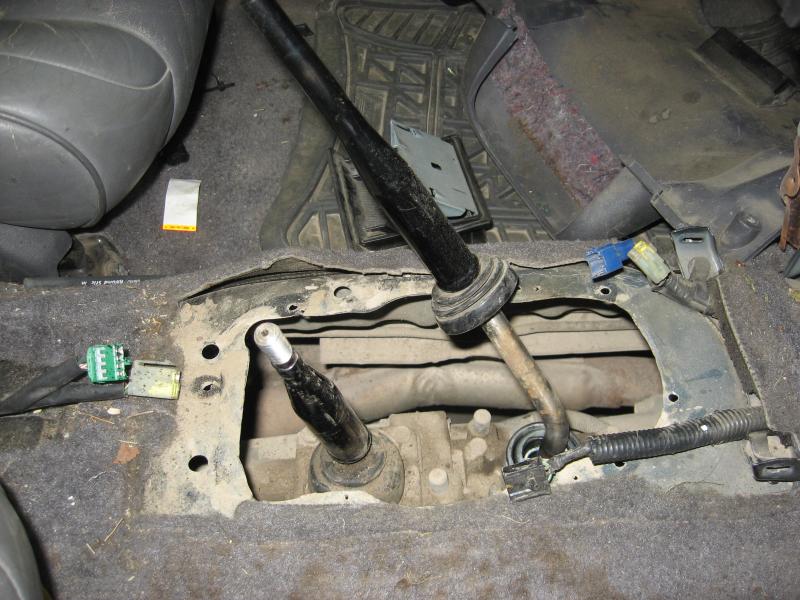

May I draw your attention to exhibit A, first gear position
Now second gear
Is the body lift affecting the angle of the arm? because it seems to me like it swings way lower than I am used to...or has it been modified? Or can I modify it to make it sit higher? perhaps a different arm from something else?
Next is the rubber boot that sits underneath
That's the one that was on there...none of the holes line up....it was bolted in with self tapping screws. Something just isn't quite right with this entire setup and I don't know what it is.
OK on to the next issue, here is looking at the passenger side of the transmission, from the rear of the truck.

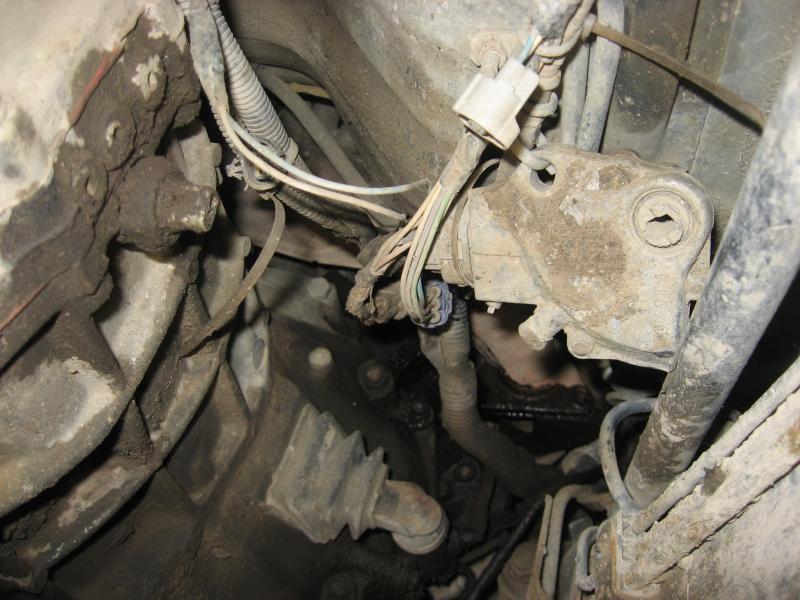

What the heck is that module? why is it hanging there? should it be bolted to something? what is supposed to be plugged in to that sensor on the trans...if anything
3rd and final.

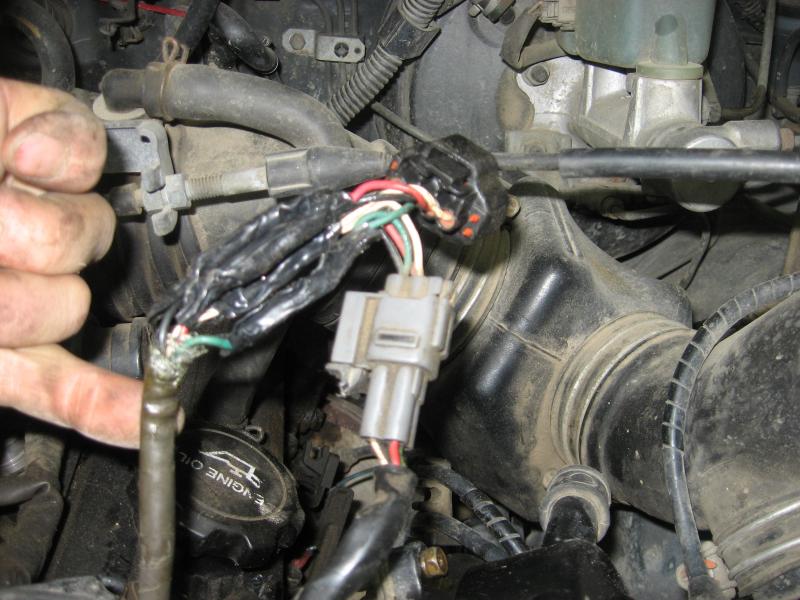

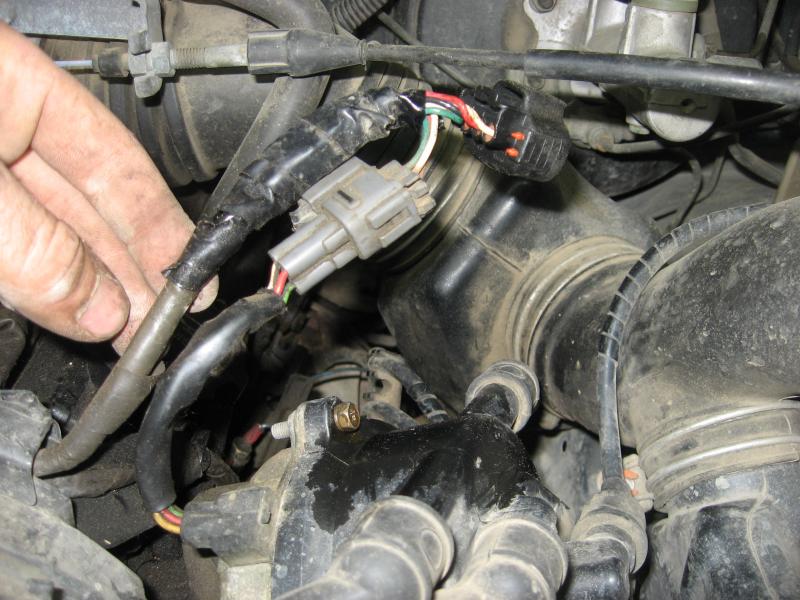

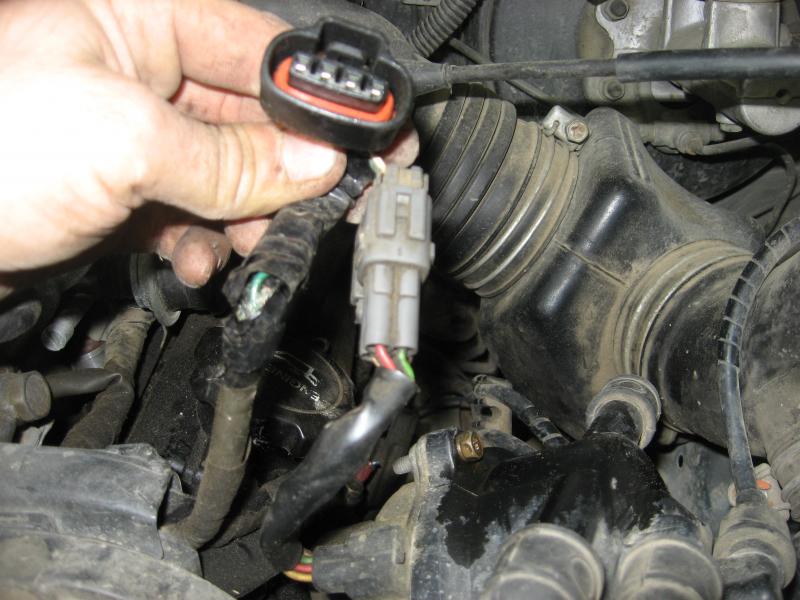

There is another plug spliced into the distributor plug wiring...same wire colors. Some sort of piggyback setup? aftermarket engine management?
That's all for now, please lend me any and all thoughts
Please note I have only driven the truck about 300kms on the highway from where I bought it, nothing seemed awry and everything ran and functioned as it should...still does.
May I draw your attention to exhibit A, first gear position
Now second gear
Is the body lift affecting the angle of the arm? because it seems to me like it swings way lower than I am used to...or has it been modified? Or can I modify it to make it sit higher? perhaps a different arm from something else?
Next is the rubber boot that sits underneath
That's the one that was on there...none of the holes line up....it was bolted in with self tapping screws. Something just isn't quite right with this entire setup and I don't know what it is.
OK on to the next issue, here is looking at the passenger side of the transmission, from the rear of the truck.
What the heck is that module? why is it hanging there? should it be bolted to something? what is supposed to be plugged in to that sensor on the trans...if anything
3rd and final.
There is another plug spliced into the distributor plug wiring...same wire colors. Some sort of piggyback setup? aftermarket engine management?
That's all for now, please lend me any and all thoughts
