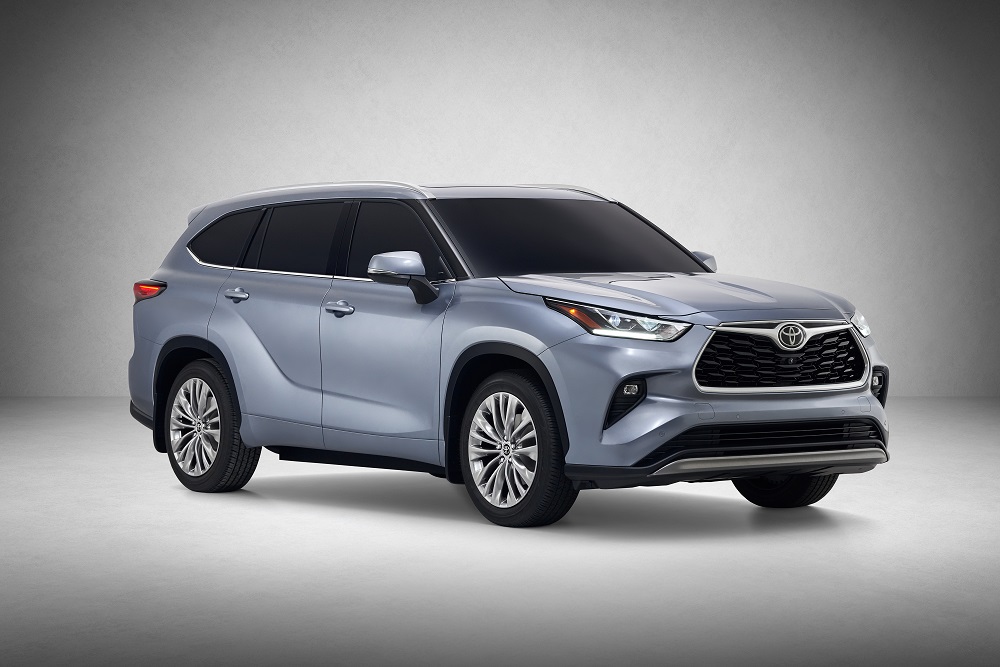

All-new 2020 Toyota Highlander Makes World Premiere in NYC
Power & Performance
Power and efficiency are a whole lot sexier when wrapped in Highlander’s striking design. The 2020 Highlander offers a choice between two advanced powertrains, a gas V6 or a new version of the Toyota Hybrid System.
The 295-horsepower 3.5-liter V6 is the epitome of smoothness. Its Toyota-innovated D-4S Injection system combines direct fuel injection with port fuel injectors to optimize efficiency, power and emissions in all conditions. Dual Variable Valve Timing with intelligence (Dual VVT-i) likewise ensures ideal response and efficiency at all engine speeds.
That translates into 295 horsepower and 263 lb.-ft. of torque, which further translates into exemplary everyday performance and generous towing capability. The Direct Shift 8-speed automatic transmission maximizes Highlander’s acceleration and highway merging capability while operating seamlessly and transparently.
On V6 models, the available towing package enables a 5,000-pound towing capacity. The package includes a heavy-duty radiator with engine oil cooler and improved fan performance. Trailer Sway Control (TSC) uses the Vehicle Stability Control to help control unwanted trailer movement.
Why use fuel when you don’t need to? The Highlander’s standard Stop and Start Engine System allows the engine to shut off when the vehicle comes to a complete stop, and then instantly restarts when the driver’s foot lifts from the brake pedal. This technology reduces fuel consumption and cuts emissions.
Hybrid Aims Even Higher
Toyota made “hybrid” synonymous with high fuel efficiency more than 20 years ago. Later, Toyota introduced the first hybrid SUV in its class, the 2006 Highlander. Leave it to Toyota to again raise the bar for hybrid SUV functionality by making the 2020 model the most fuel-efficient Highlander Hybrid ever.
The new-generation Toyota Hybrid System in the 2020 Highlander Hybrid combines a high-efficiency 2.5-liter DOHC four-cylinder engine with two electric motors in a system that’s more compact, and more efficient than before. The gas engine employs Variable Valve Timing-intelligent system by Electric motor (VVT-iE) on the intake camshaft, and VVT-i on the exhaust camshaft. A variable cooling system (electric water pump, electric thermostat) and a fully variable oil pump further improve engine efficiency.
The bottom line is an eye opener for the efficiency-minded: 240 total system horsepower and an EPA-estimated 34 combined MPG. The latter is a 17-percent improvement over the previous-generation Highlander Hybrid’s 28 combined MPG. Yet, Highlander Hybrid still delivers the everyday acceleration, power and responsiveness that family buyers expect. In another Highlander first, the hybrid is now available in either 2WD or AWD, further expanding hybrid technology to a new group of buyers.
The transaxle mounts the electric motors (MG1 and MG2) coaxially rather than in-line, and the resulting smaller and lighter package reduces frictional losses. The gas engine and MG2 work in concert to deliver dynamic performance, while both MG1 and MG2 charge the hybrid battery.
To reduce the transaxle’s size and weight, the reduction gear is now a parallel shaft gear, rather than a planetary, and a new multi-function gear integrates the power-split planetary ring gear, parking gear, and counter-drive gear. New computer integration and a smaller, lighter power stack installed directly above the transaxle reduce energy transmission losses.
The battery pack is small enough to be installed under the rear seats, so it does not take up any cargo or passenger space.
Seamless Everyday Performance
The Highlander Hybrid delivers its exemplary fuel economy and performance without calling attention to its high-tech powertrain operation. Quite the contrary, like all Toyota Hybrid vehicles, it simply goes about its business in a transparent way. For example, the new system optimizes the level of electric motor assistance and gas engine speed without the engine running at high revs. Engine speed is synchronized with vehicle speed, yielding effortless and quiet acceleration.
As on many modern vehicles, the Highlander Hybrid offers selectable NORMAL, ECO and SPORT driving modes that let the driver choose the vehicle’s performance personality. The bonus is the EV mode, which allows electric-only driving at low speeds for short distances.
SPORT mode unlocks boost from the hybrid system for improved acceleration response. ECO mode gets maximum efficiency from the fuel and battery, while NORMAL mode is ideal for everyday driving.
Special, easy-to-use hybrid tech adds an element of control and fun. Using a sequential shifting feature, the driver can “downshift” to increase the regenerative braking in steps, which fosters greater control when driving in hilly areas, for example.
The 2020 Highlander Hybrid can also coach the driver to drive as economically as possible. For example, an accelerator guide function suggests an acceleration level to the driver according to the driving conditions, and a scoring function adds a measure of fun to eco driving.
Features for More Efficiency
Highlander Hybrid’s Predictive Efficient Drive (PED) analyzes the driver’s daily driving habits and upcoming road and traffic conditions to more efficiently charge and discharge the hybrid battery accordingly alongside actual driving.
The more the vehicle is driven, the more data is accumulated, contributing to practical fuel efficiency. Many actual roads chosen to represent common usage scenarios, such as in urban congestion or on mountain roads, were driven on and analyzed to create control that feels natural to the driver when operating to enable more efficient driving.
All-Wheel Drive Gets Smarter
The 2020 Highlander gets a grip on any road with a choice of front-wheel drive or three different available all-wheel drive systems — two for the V6 models and a unique AWD system for the Highlander Hybrid. For the Highlander Gas L, LE and XLE models, the optional AWD system can send up to 50 percent of available torque to the rear wheels to counter wheel slip when necessary.
Sounding like something from a high-end sports car, Dynamic Torque Vectoring AWD with Drive Mode Select and Driveline Disconnect is available for the Highlander Limited and Platinum for even greater agility and capability. In addition to governing torque distribution between the front and rear wheels, this advanced system uses special couplings to actively manage torque distribution between the left and right rear wheels.
Dynamic Torque Vectoring AWD doesn’t need wheel slippage before springing into action. Rather, a sophisticated AWD Integrated Management (AIM) manages Electric Power Steering (EPS), throttle control, transmission shift control and drive torque distribution to continually optimize handling.
Using the Multi-Terrain Select control dial on the console, the driver can maximize traction when driving through inclement weather or road conditions. Mud & Sand mode works well for beach driving, while Rock & Dirt mode optimizes AWD traction for trails. The driver can monitor, in real time, torque allocation and slip control on the Multi-Information Display (MID).
In addition, Highlander models include the following features for optimal on-road and off-road performance and safety:
- Hill Start Assist Control
- Trailer Sway Control
- Downhill Assist Control
All-wheel drive is a great traction partner, but it’s not needed all the time, such as during steady highway cruising. In such situations, Rear Driveline Disconnect automatically disengages drive to the rear wheels and stops the propeller shaft’s rotation. As one might guess, that reduces the energy needed to propel the vehicle and therefore reduces fuel consumption. When AWD is needed, the system instantly re-engages, without the driver even noticing.
Hybrid AWD
As with the AWD system in the previous Highlander Hybrid, the 2020 model’s AWD employs a separate rear-mounted electric motor to power the rear wheels when needed. Like the hybrid powertrain itself, the AWD works seamlessly and transparently.
The rear electric motor operates independently, with no mechanical connection between the transmission and the rear wheels. Preemptively distributing more driving force to the rear wheels, such as when accelerating, helps suppress front wheel slip during off-the-line starts. The system also enhances cornering agility by helping to reduce understeer. And, when venturing onto a trail, the increased rear-wheel torque helps move the Highlander Hybrid confidently over rough or slippery surfaces.
A New Level of Comfort

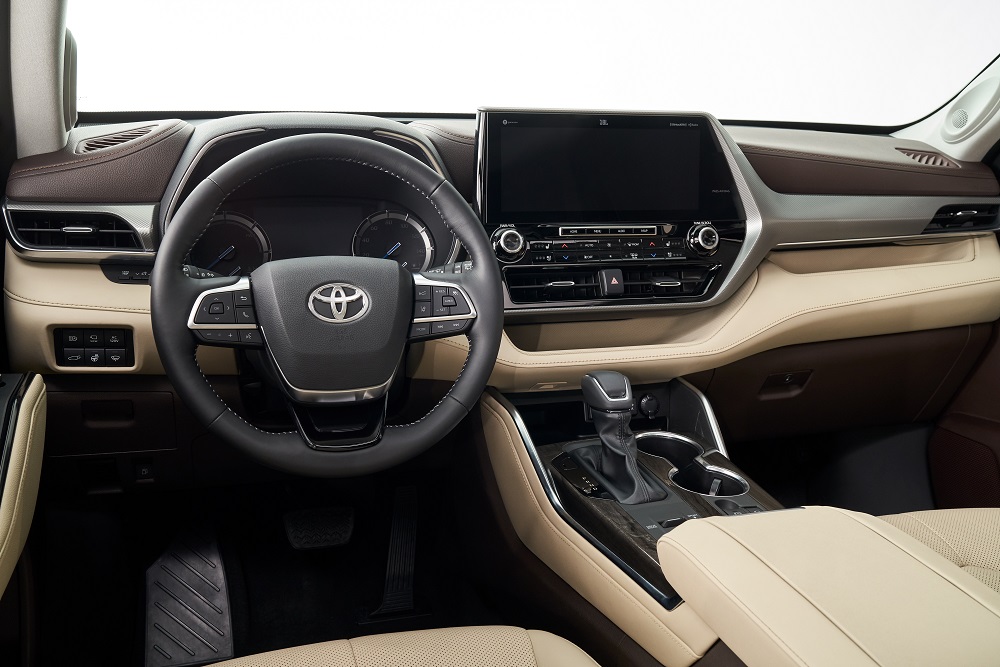

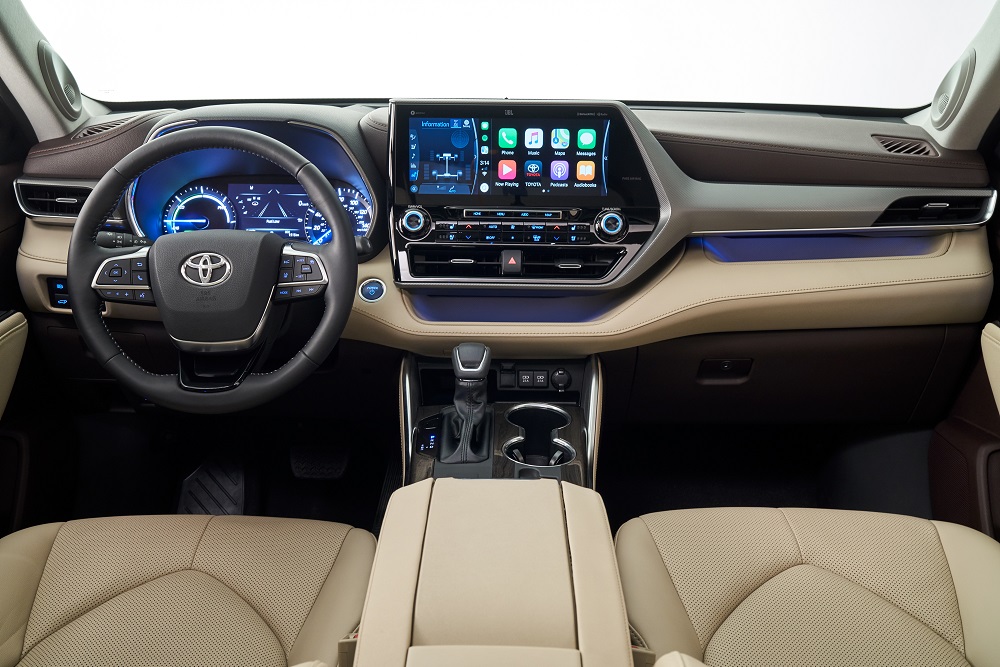

From the L grade to the top-of-line Platinum, the 2020 Highlander offers its plushest accommodations ever. Designers took inspiration from luxury crafted interiors to create a more premium ambience. Details include softer padded surfaces and a more tailored look with stitching that continues from the door trim to the instrument panel. The dash integrates the multimedia and HVAC controls in an elegant and functional way.
The 2020 Highlander cabin offers improved functionality throughout, from a center console that offers available Qi wireless charging to plenty of storage spaces and USB charging ports. On Limited and Platinum grades, new ambient LED lighting sets a relaxing mood. Inset steering wheel controls are a modern luxury touch on all grades.
Highlanders have long been renowned for a quiet ride, and with the high-strength TNGA platform, Toyota pushes the bar even higher. Sound-damping and soundproofing materials have been optimized throughout the vehicle, with the takumi approach focusing particularly on minimizing noise in the frequencies that interfere with conversation.

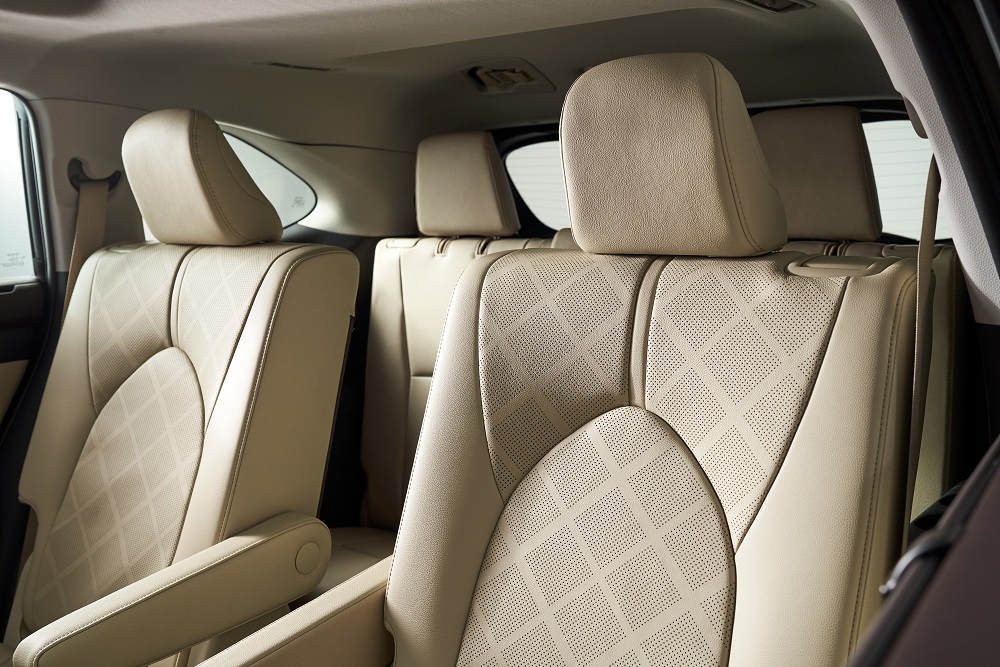

The seating color palette enhances the sense of luxury permeating the 2020 Highlander. The L and LE grades offer comfortable woven cloth in Graphite or Black; the XLE offers embossed Softex® artificial leather trim in Harvest Beige, Graphite or Black, while the Limited offers those colors in perforated leather trim. The top-of-line Platinum grade, the most luxurious Highlander ever offered, exclusively features embossed, perforated leather trim in those three colors plus Glazed Caramel, a luxuriously delicious new brown.
Multitalented Multimedia
However passengers listen to music and connect with their worlds, the 2020 Highlander is ready with the latest multimedia systems. All grades come standard with Apple Car Play®, Android Auto, Alexa In-Car compatibility, Waze, SiriusXM, and Wi-Fi connectivity through AT&T.
All Highlander models come equipped with Toyota Safety Connect with a one-year trial subscription.
LE and above grades offer Service and Remote Connectivity. A move up to XLE or Limited grade offers available Dynamic Navigation. A move up to Platinum grade offers standard Dynamic Navigation and the 12.3-inch screen.
The JBL Premium Audio System is standard for Limited and Platinum grades and rocks music of all genres with 1,200 watts of power playing through 11 speakers in nine locations. Clari-Fi® technology breathes new life into compressed digital music formats, with the result like a mobile concert. The system will not, however, settle arguments over which music to play.
